Запчасти Case IH 870 (134) - ADJUSTABLE STEERING COLUMN, FIRST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING

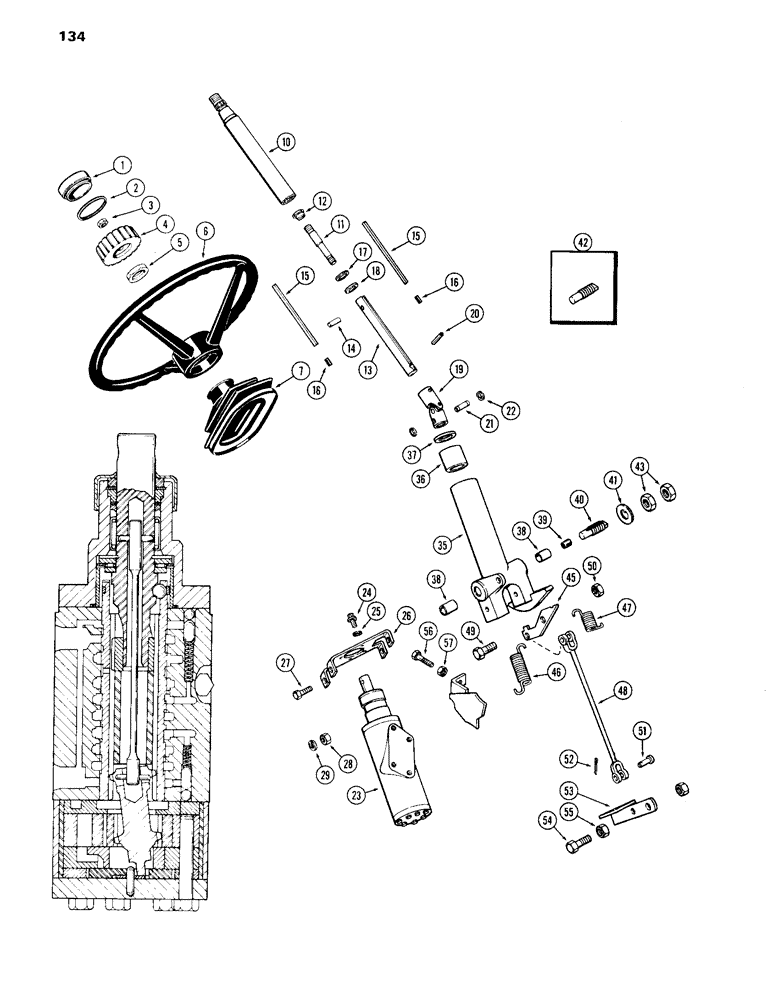

Схема запчастей Case IH 870 - (134) - ADJUSTABLE STEERING COLUMN, FIRST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING
57
50
25
51
27
13
22
39
38
42
12
20
18
15
16
43
40
29
36
16
28
1
15
19
2
4
26
49
35
38
53
24
46
55
47
56
17
21
5
6
52
41
48
11
45
3
37
10
7
54
23
14

Артикул

Название

Примечание

Количество

1

A62210

PLUG

MEDALLION - steering wheel

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - medallion (2-1/8 x 2-3/8 x 1/8")

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex

1шт.

4

A61293

KNOB

- lock, steering shaft

1шт.

5

A14567

JAM NUT

- steering, Serial Range: wheel-shaft

1шт.

6

A65544

STEERING WHEEL

(Replaces A61007)

1шт.

7

A61910

BOOT

- rubber, steering column

1шт.

10

A63681

SHAFT

- steering, outer

1шт.

11

A63683

SHAFT

- steering, inner lock

1шт.

12

A63684

LOCK NUT

- lock, shaft

1шт.

13

A63697

SHAFT

- steering, inner telescoping

1шт.

14

A63685

PIN

- lock, telescoping shaft

1шт.

15

A63686

KEY

- inner shaft

2шт.

16

A63687

LOCK

- friction, telescoping shaft

2шт.

17

A63688

FRICTION WASHER

- friction, shaft retaining

1шт.

18

A58116

RING

- snap, washer

1шт.

19

A63689

JOINT

- universal, steering shaft

1шт.

20

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

1шт.

21

A64000

PIN,9.42mm OD x 38.1mm L

- universal to pump shaft

1шт.

22

A27795

RING

"E" RING - pin retaining

2шт.

23

NSS

NOT SOLD SEPARAT

PUMP ASSY. - steering (See Figures 147G-147I)

1шт.

24

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - cap, 5/16 x 3/4" N.C. ferry

4шт.

25

92-5

LOCK WASHER,5/16"

4шт.

26

A65562

BRACKET

- pump mounting (Replaces A64121)

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

29

92-5

LOCK WASHER,5/16"

4шт.

A64122

STEERING ASSY

COLUMN ASSY. - steering (includes ref. 35 - 38)

1шт.

35

NSS

NOT SOLD SEPARAT

COLUMN - (Order A64122)

1шт.

36

A59808

BEARING

- steering shaft

1шт.

37

A61736

WIPER SEAL

- wiper, steering shaft

1шт.

38

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- tilt pivot

2шт.

39

A59842

BUMPER

SNUBBER - pivot, steering column

2шт.

40

A137354

STUD

- pivot, w/groove (Replaces A59163)

2шт.

41

A137355

WASHER

- pivot stud

4шт.

42

A59163

STUD

- pivot, w/o groove

2шт.

43

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8" N.C. hex

4шт.

45

A64338

LATCH

- tilt control, steering column

1шт.

46

A63690

SPRING

- return tilt

1шт.

47

A64125

SPRING

- tilt latch

1шт.

48

A64549

ROD

- tilt control

1шт.

49

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Rod to latch, 3/8 x 1-1/2" N.C. hex

1шт.

50

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

51

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Rod to pedal 3/8" x 1.060"

1шт.

52

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

53

A64127

PEDAL

- tilt control

1шт.

54

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Pedal Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

55

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

56

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- stop, 5/16 x 1-1/2" N.C. hex

1шт.

57

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C. hex

1шт.

Выбрано товаров: 50
