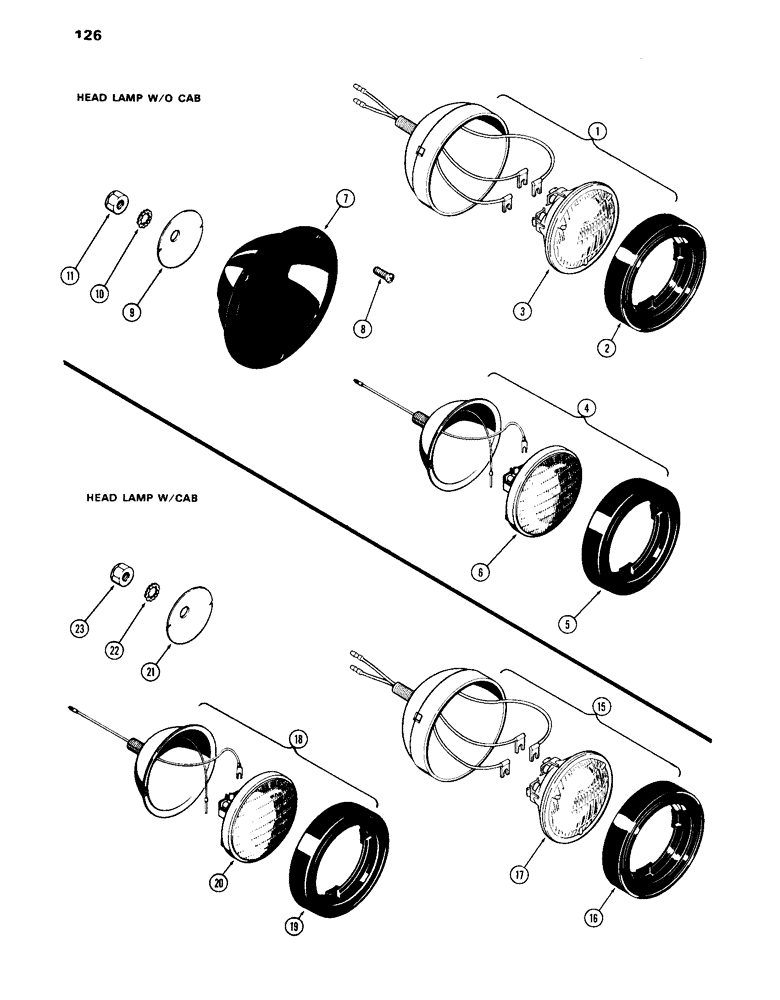

Запчасти Case IH 870 (126) - LIGHTING EQUIPMENT, HEAD LAMPS, WITHOUT CAB, DUAL BEAM (04) - ELECTRICAL SYSTEMS

1

A64498

LAMP

- head (2 beam) (1st used trac. ser. no. 8693001) (includes ref. 2 & 3)

2шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A43712

LAMP

- sealed unit (#4457)

1шт.

4

A59701

LAMP

- head (single beam) (used prior to trac. ser. no. 8693001) (includes ref. 5 & 6)

2шт.

5

A25213

RETAINER

- sealed beam

1шт.

A24572

LAMP

KIT - head lamp, single beam

1шт.

A11276

GASKET

- head lamp (Not Applicable), single beam

1шт.

6

A24572

LAMP

HEAD LAMP - sealed beam, single

1шт.

7

A59698

BEZEL

- front head lamp mounting, R.H., single beam

1шт.

7

A59699

BEZEL

- front head lamp mounting, L.H., single beam

1шт.

8

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" self-tapping, single beam

6шт.

9

A59702

RETAINER

- front head lamp, single beam

2шт.

10

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Single beam Ext-Int Tooth, 1/2"

2шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

Single beam 1/2"-13, G5

2шт.

15

A64498

LAMP

- head (2 beam) (1st used trac. ser. no. 8693001), single beam (w/cab) (includes ref. 16 & 17)

2шт.

16

A25213

RETAINER

- sealed beam (w/cab)

1шт.

17

A43712

LAMP

- sealed unit (#4457), single beam (w/cab)

1шт.

18

A59701

LAMP

- head (single beam) (used prior to trac. ser. no. 8693001) (w/cab) (includes ref. 19)

2шт.

19

A25213

RETAINER

- sealed beam (w/cab)

1шт.

A24572

LAMP

KIT - head lamp, single beam (w/cab)

1шт.

A11276

GASKET

- head lamp (Not Applicable), single beam (w/cab)

1шт.

20

A24572

LAMP

HEAD LAMP - sealed beam (w/cab)

1шт.

21

A59702

RETAINER

- front head lamp, single beam (w/cab)

2шт.

22

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Single beam, w/Cab Ext-Int Tooth, 1/2"

2шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

Single beam (w/Cab) 1/2"-13, G5

2шт.
