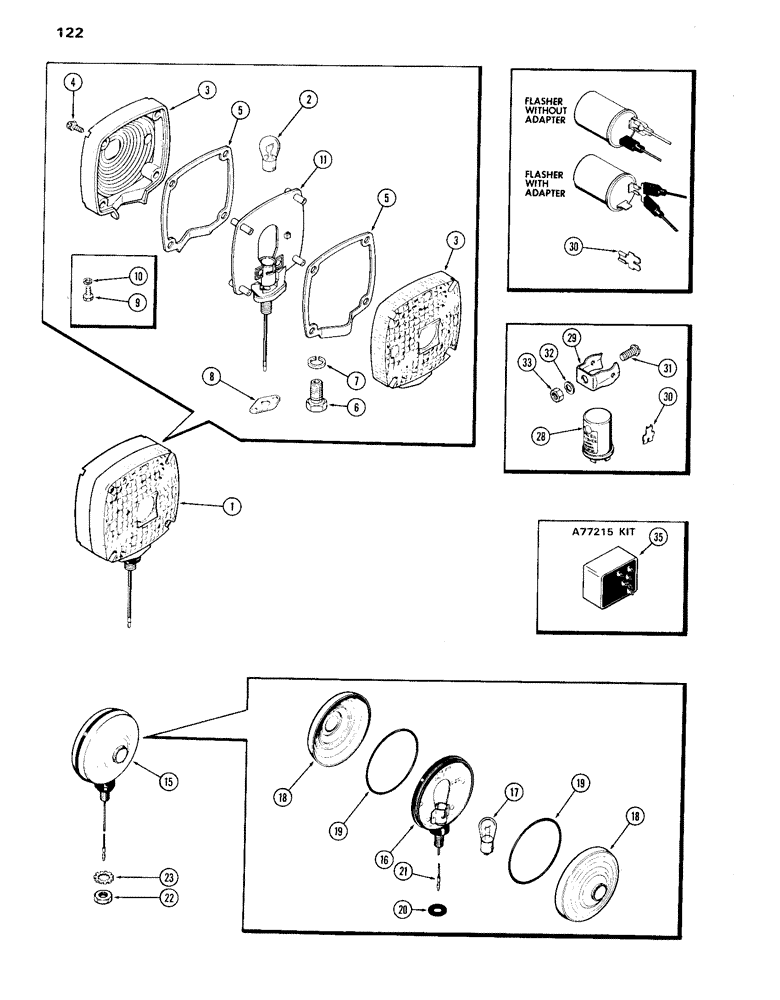

Запчасти Case IH 870 (122) - FLASHER LIGHT ATTACHMENT, SQUARE TYPE (04) - ELECTRICAL SYSTEMS

A44201

LIGHT ASSY.

KIT - replacement, flasher lamp (1st used trac. ser. no. 8693001) (Replaced A43730 kit) (includes ref. 1 - 11)

2шт.

1

NSS

NOT SOLD SEPARAT

LAMP ASSY. - flasher, double face-square (Replaced A64587 & F89713) (Order A44201)

1шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

A44202

KIT

- lens replacement (includes ref. 3 & 4)

1шт.

3

NSS

NOT SOLD SEPARAT

LENS - long base (amber) (Replaced F63434) (order A44202)

2шт.

4

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - lens (#8-32 x 5/8" Phillips)

8шт.

5

A43731

GASKET

- sealing, lamp lens

2шт.

6

NSS

NOT SOLD SEPARAT

STUD - mounting (used w/o cab)

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used w/o cab 1/2"

1шт.

8

F63435

GASKET

- lamp base

1шт.

9

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- (1/4 x 1/2" N.C. hex) (used w/cab)

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (used w/Cab) 1/4"

2шт.

11

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A44201)

1шт.

15

A34853

LAMP

ASSY. - flasher (used prior to trac. ser. no. 8693001), round type (includes ref. 16 - 21)

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A34853), round type

1шт.

17

A41264

BULB,#1156, 12V

Lamp, Round type #1156, 12V

1шт.

18

A41261

LENS

- lamp, round type

2шт.

19

NLS

NO LONGER SERVICED

"O" RING - lamp, round type

2шт.

20

A41263

GASKET - lamp, round type

1шт.

21

A41260

WIRE - lamp, round type

1шт.

22

129-125

NUT,1/2"-20, G5

Round type 1/2"-20, G5

2шт.

23

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Round type Ext-Int Tooth, 1/2"

2шт.

28

A65550

FLASHER UNIT

FLASHER - 12 volt w/sealing gasket (Replaced A34867), round type

1шт.

29

A34869

BRACKET

- flasher element mounting, round type

1шт.

30

A34862

KIT

- adapter, flasher by-pass (Required for steady light) See Inset), round type (includes ref. 31, 32 & 33)

1шт.

31

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

- machine (5/16 x 3/4" N.C. round head), round type

1шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

Round type 5/16"-18, G5

1шт.

A77215

SIGNAL

KIT - turn signal switch (special for California to replace standard switch to eliminate flasher), round type (includes ref. 35)

1шт.

35

A77187

SWITCH

- turn signal, round type

1шт.
