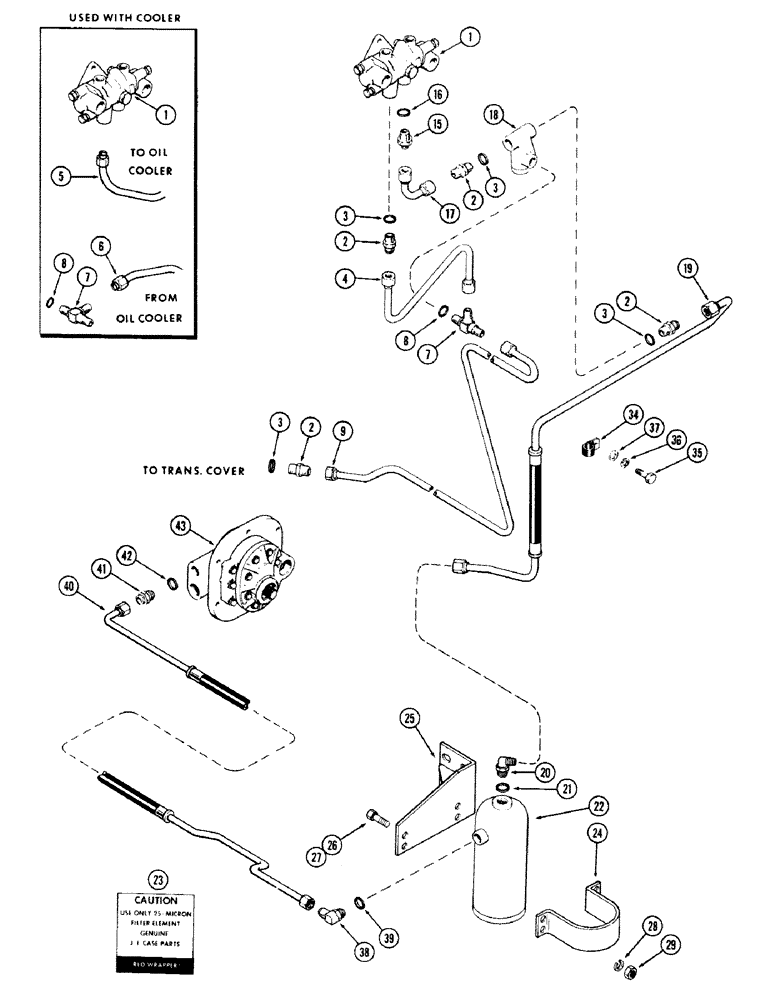

Запчасти Case IH 870 (116) - HYDROSTATIC STEERING SYSTEM, WITH HYDRAULIC BRAKES, POWER SHIFT, 1ST USED TRAC. SER. NO. 8675001 (05) - STEERING

1

A60207

VALVE

ASSY. - steering (See page 122 for repairs)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - (1/2" tube O.D. x 3/4" P.T.) (Incl. Ref 3)

4шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

4

A59928

TUBE - return, steering valve to tee (Used w/out cooler)

1шт.

5

A60400

TUBE - upper, cooler to steering valve (Used with cooler)

1шт.

6

A60401

TUBE - lower, cooler to tee (Used with cooler)

1шт.

7

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - adjustable, 3/4" P.T., 1/2" tube (includes ref. 8)

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

9

A59923

TUBE - tee junction to trans. cover (Used w/power shift)

1шт.

15

A36663

CONNECTOR, ELEC

CONNECTOR ASSY. - male, with "O" ring (includes ref. 16)

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

17

A59904

TUBE

- pressure, relief valve to steering valve

1шт.

18

A59905

VALVE

ASSY. - steering system relief (See Figure 118)

1шт.

19

A62367

TUBE - pressure, filter to steering system relief valve

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 90 degree adjustable (includes ref. 21)

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - elbow (1/2 x 21/32 x 3/32")

1шт.

22

G32017

FILTER

ASSY. - steering, power brake system (25 Micron) (See Figure 118) (Replaces A60721)

1шт.

23

321-1763

DECAL

- "Warning", oil filter (Red wrapper)

1шт.

24

A60857

CLAMP - hyd. oil, Serial Range: filter-bracket

1шт.

25

A61781

BRACKET

- mounting, hyd. oil filter

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex hd. (3/8 x 1-1/2" N.C.)

2шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

25-106

NUT,3/8"-16, G5

- hex (3/8" N.C.)

4шт.

34

49885

CLAMP

- oil filter, Serial Range: tubes-firewall

1шт.

35

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Clamp to firewall Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

95-4

WASHER,1/4"

- wrought (5/16 x 3/4 x 1/16")

1шт.

38

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 90 degree adjustable (includes ref. 39)

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

40

A62371

TUBE ASSY.

TUBE - hyd. pump to hyd. oil filter

1шт.

41

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy, 7/8" P.T., 1/2" tube (Incl. Ref 42) 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

42

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

43

NSS

NOT SOLD SEPARAT

PUMP ASSY. - hydraulic dual (See Figure 240 for repairs)

1шт.
