Запчасти Case IH 870 (112) - HYDROSTATIC STEERING SYSTEM (05) - STEERING

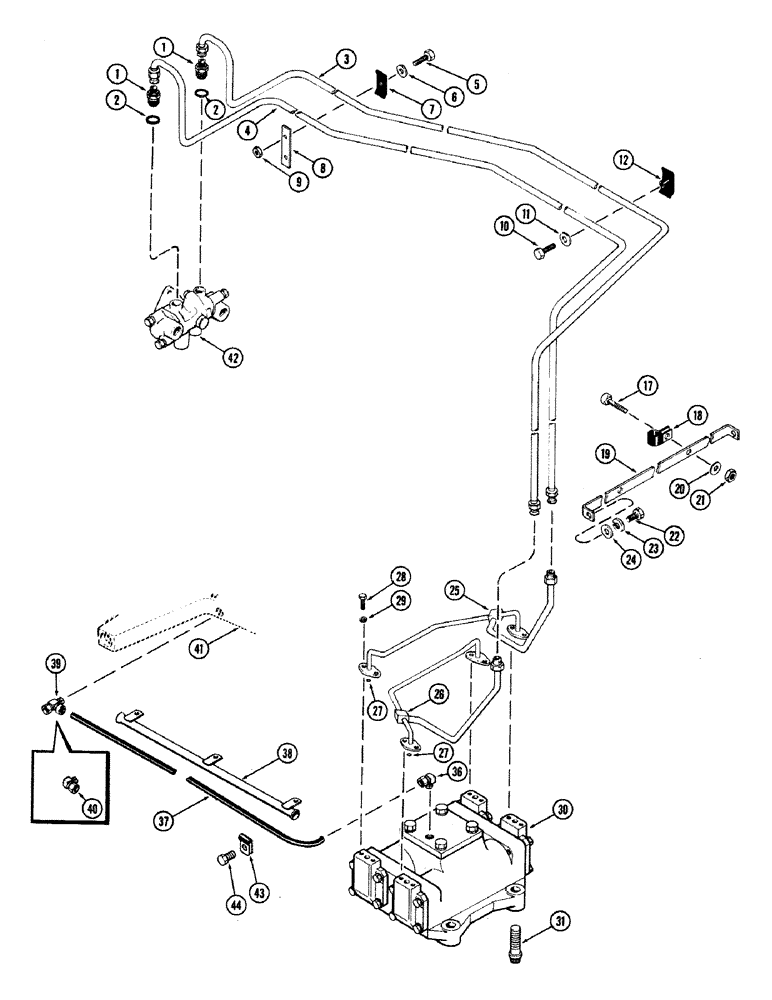

Схема запчастей Case IH 870 - (112) - HYDROSTATIC STEERING SYSTEM (05) - STEERING
43
24
20
12
23
21
41
36
28
10
25
29
6
27
5
37
40
39
27
17
4
3
26
42
22
1
9
1
7
31
18
19
2
44
8
38
11
30
2

Артикул

Название

Примечание

Количество

1

A60705

CONNECTOR - tube, steering valve to actuator tube

2шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tube connector to steering valve

2шт.

3

A60220

TUBE - upper, steering, Serial Range: valve-actuator

1шт.

4

A60221

TUBE - lower, steering, Serial Range: valve-actuator

1шт.

5

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Clip to plate Hex, 1/4"-20 x 1 1/4", G5

1шт.

6

195-18

WASHER,1/4"

- (9/32 x 5/8 x 1/16")

1шт.

7

A60224

CLAMP

CLIP - mounting, steering actuator & cooler tube

1шт.

8

A60223

PLATE - mounting, steering actuator & cooler tube

1шт.

9

25-104

NUT,1/4"-20, G5

1шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clamp to radiator baffle support Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

11

195-18

WASHER,1/4"

- (9/32 x 5/8 x 1/16")

1шт.

12

A60225

CLAMP - mounting, actuator tube (5/8" O.D.)

1шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clamp to support Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

18

NLS

NO LONGER SERVICED

- steering, Serial Range: tube-support

2шт.

19

A61087

SUPPORT

- steering tube to grill mounting (Replaces A60239)

1шт.

20

95-4

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

2шт.

21

25-104

NUT,1/4"-20, G5

2шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Support to radiator grill Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- (1/8 x 5/16 x 3/64")

2шт.

25

A60229

TUBE

- steering, crossover (L.H.)

1шт.

26

A60228

TUBE - steering, crossover (R.H.)

1шт.

27

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - flange, crossover tubes (1/2 x 11/16 x 3/32")

4шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Tube flanges Hex, 5/16"-18 x 1", G5, Full Thd

8шт.

29

92-5

LOCK WASHER,5/16"

8шт.

30

A60208

ACTUATOR

ASSY. - hydrostatic steering, (See page 122 for repairs)

1шт.

31

A62066

SCREW,Ferry 3/4" - 10 x 2 1/2", Alloy Steel

- actuator to radiator support, (3/4 x 2-1/2" N.C. Ferry cap) (Replaces 166-136)

4шт.

36

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

- 90 degree male, steering actuator pressure relief (3/8" tube O.D. x 1/4" male P.T.)

1шт.

37

A60723

BASE PLATE

TUBE - steering actuator to trans. cover (Nylon)

1шт.

38

A59925

TUBE

- protector, steering actuator to trans. cover

1шт.

39

222-5120

TEE,7/16"-24 x 1/4" NPT Run

- reducing, trans. cover sump return (3/8" tube O.D. x 1/4" male P.T.) (Used only on tractor with power brakes)

1шт.

40

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

- 90 degree male, trans. cover sump return (3/8" tube O.D. x 1/4" male P.T.) (Used only on tractor with hydraulic brakes)

1шт.

41

NSS

NOT SOLD SEPARAT

COVER - trans. front top (Power shift) (Order A58244)

1шт.

41

NSS

NOT SOLD SEPARAT

COVER - trans. front top (Mechanical shift) (Order A59031)

1шт.

42

A60207

VALVE

ASSY. - steering (See page 122 for repairs)

1шт.

43

A61275

CLIP

- tube, strg., Serial Range: actuator-trans.

1шт.

44

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Not used w/R.H. step) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

Выбрано товаров: 37
