Запчасти Case IH 870 (110) - HYDROSTATIC STEERING SYSTEM (05) - STEERING

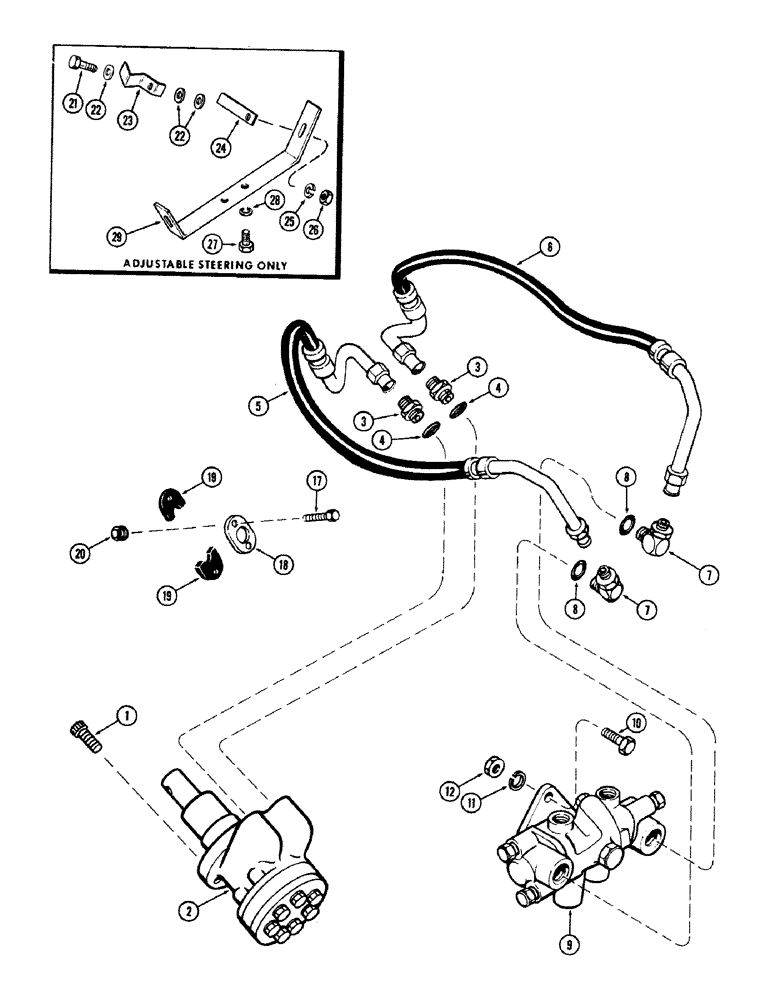

Схема запчастей Case IH 870 - (110) - HYDROSTATIC STEERING SYSTEM (05) - STEERING
8
10
7
22
2
1
5
3
8
27
20
4
3
22
12
11
29
26
21
28
7
18
4
19
23
8
19
17
25
24
9

Артикул

Название

Примечание

Количество

1

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - hand pump to strg. column (5/16 x 1" N.C. Ferry Cap)

4шт.

2

A60202

PUMP ASSY. - hand, steering (See page 120 for repairs)

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - w/"O" ring, hand pump to hose (1/2" tube O.D. x 3/4") (Incl. Ref 4)

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

5

A60200

HYD TUBE

HOSE - hand pump to valve assy. (R.H.)

1шт.

6

A60201

HYD TUBE

HOSE - hand pump to valve assy. (L.H.)

1шт.

7

222-1661

ELBOW

ASSY. - 90 degrees adjustable w/"O" ring and locknut, hose to valve (Replaces 218-5106) (includes ref. 8)

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

9

A60207

VALVE

ASSY. - control, hydrostatic steering (See page 122 for repairs)

1шт.

10

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Valve to firewall Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- hex (3/8" N.C.)

3шт.

17

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Clamp, hose & baffle Hex, 1/4"-20 x 1", G5

4шт.

18

A60206

PLATE - steering hose clamp (Between bolt head & baffle)

2шт.

19

A60205

CLAMP - steering hoses (Neoprene)

4шт.

20

25-104

NUT,1/4"-20, G5

4шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex hd., mtg. bar to clamp (5/16 x 1-1/4" N.C.)

2шт.

22

195-22

WASHER

- (3/8 x 3/4 x 1/16")

6шт.

23

A60203

CLAMP - tilt steering hoses

2шт.

24

A60204

PLATE - back up, tilt steering hoses clamp

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" N.C.)

2шт.

27

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Mtg. bar to strg. column Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

A59245

BAR - mounting, tilt steering hoses & clamps

1шт.

Выбрано товаров: 25
