(106) - RIGID STEERING

Запчасти Case IH 870 (106) - RIGID STEERING (05) - STEERING

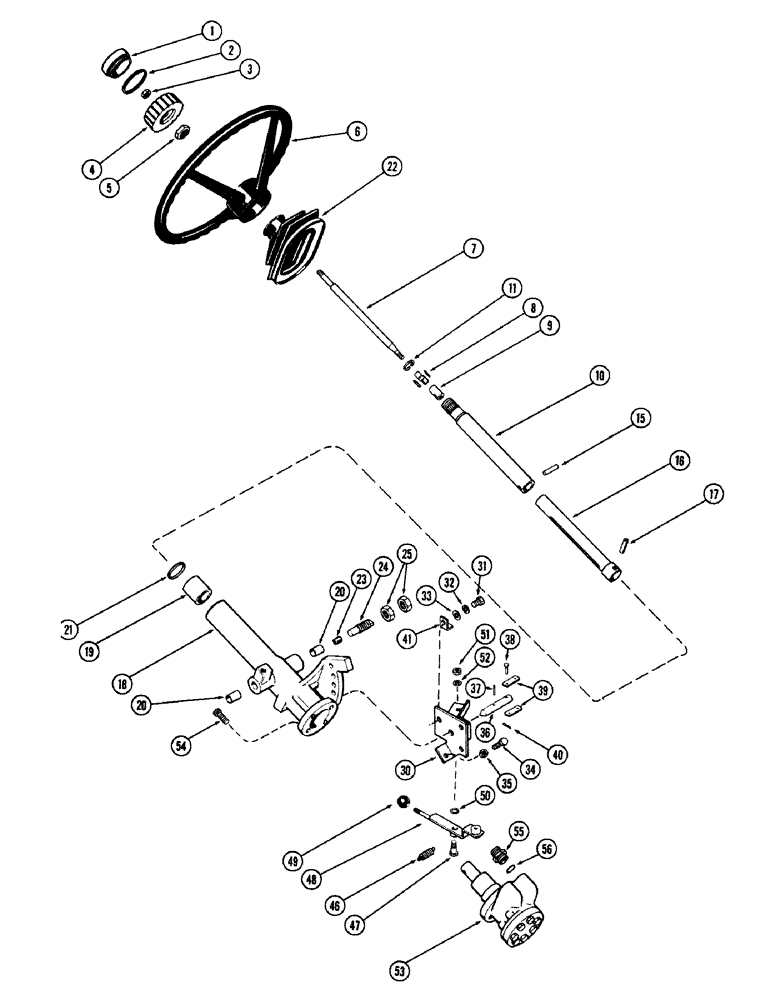

Схема запчастей Case IH 870 - (106) - RIGID STEERING (05) - STEERING
51
50
5
39
46
16
54
47
17
38
30
8
40
52
55
23
19
25
35
48
21
1
22
4
7
53
18
3
49
6
56
32
24
41
34
10
11
37
36
33
20
15
9
2
31
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A62210

PLUG

CAP - steering wheel lock knob, w/"O" ring groove

1шт.

1

A61050

CAP

- steering wheel lock knob, w/o "O" ring groove (Order A62210)

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - 2-1/8 x 2-3/8 x 1/8" (Used w/A62210 cap)

1шт.

2

A61290

RING - rubber, 2-7/32 x 2-1/2 x 5/32" (Used w/A61050 cap) (Replaces A29884)

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel to steering column shaft (13/16" N.F. thread)

1шт.

4

A61007

RIM

WHEEL - steering

1шт.

5

A59810

SHAFT - steering column (includes ref. 6 - 9)

1шт.

A61734

STEERING COLUMN

COLUMN ASSY. - steering (Not illust.) (Replaces A59807) (includes ref. 6 - 9)

1шт.

6

NSS

NOT SOLD SEPARAT

COLUMN - steering (Order A61734)

1шт.

7

A59808

BEARING

- steering column

1шт.

8

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

BEARING - steering column mounting stud

2шт.

9

A61736

WIPER SEAL

- wiper, steering column

1шт.

10

138-173

LOCK PIN,3/8" x 1 3/8", Slotted

PIN, , Rigid column 3/8" x 1 3/8", Slotted

1шт.

11

A61910

BOOT

- steering column

1шт.

13

A59842

BUMPER

SNUBBER - steering column mounting stud

2шт.

14

A59163

STUD

- steering column mounting

2шт.

15

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, strg. column mounting stud (5/8" N.C. jam)

4шт.

16

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bracket to steering column Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

17

92-8

LOCK WASHER,1/2"

1шт.

18

95-8

WASHER,1/2"

- wrot (9/16 x 1-3/8 x 7/64") 1/2"

1шт.

19

A60202

PUMP ASSY. - hand, steering (See page 120 for repairs)

1шт.

20

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - cap, hand pump to steering column (5/16 x 1" N.C.)

4шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - with "O" ring, hand pump to hose (1/2" tube O.D. x 3/4" -16 thread) (Incl. Ref 22)

2шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.
