Запчасти Case IH 870 (105A) - TAIL & WIRING LAMP (04) - ELECTRICAL SYSTEMS

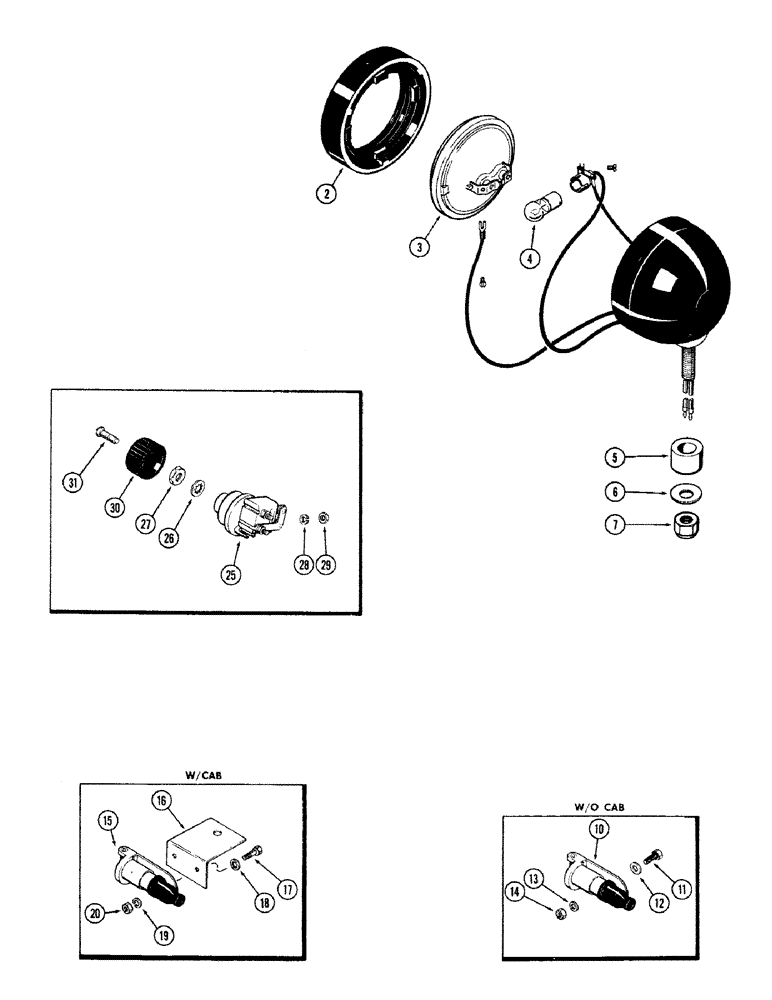

Схема запчастей Case IH 870 - (105A) - TAIL & WIRING LAMP (04) - ELECTRICAL SYSTEMS
2
18
17
7
29
3
26
25
5
6
20
4
13
31
10
16
11
12
15
30
19
28
14
27

Артикул

Название

Примечание

Количество

A59703

LAMP

- rear flood & tail (includes ref. 2 - 5)

1шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A42295

BULB

- sealed beam

1шт.

4

B50223

BULB

- lamp, tail

1шт.

5

D37048

BUSHING

- pivot, lamp mounting

1шт.

6

D37049

WASHER

- wave, tail lamp mtg.

1шт.

7

129-125

NUT,1/2"-20, G5

(includes Ref. 10) 1/2"-20, G5

1шт.

10

A8170

SOCKET

- rear auxiliary outlet w/o cab

1шт.

A60512

SOCKET/RECEPTACLE

ATTACHMENT - socket (Mach. item), rear auxiliary outlet w/o cab (includes ref. 11 - 14)

1шт.

11

163-4

SCREW,Hex, #10 - 32 x 5/8"

- socket #10 x 5/8" N.F. hex, mach., rear auxiliary outlet w/o cab

2шт.

12

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", rear auxiliary outlet w/o cab

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Rear auxiliary outlet w/o cab #10

2шт.

14

129-37

NUT,#10-32

Rear auxiliary outlet w/o cab #10-32

2шт.

A61680

SCREW

ATTACHMENT - socket (Mach. item), w/ cab (includes ref. 15 - 20)

1шт.

15

A8170

SOCKET

- rear auxiliary outlet, w/cab

1шт.

16

A61679

BRACKET - socket mounting, w/cab

1шт.

17

163-4

SCREW,Hex, #10 - 32 x 5/8"

- #10 x 5/8" N.F. hex, mach., w/cab

2шт.

18

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", w/cab

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , w/Cab #10

2шт.

20

129-37

NUT,#10-32

w/cab #10-32

2шт.

25

A59694

SWITCH

ASSY. - light

1шт.

26

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - Shakeproof, 5/8" int., light switch

1шт.

27

A20467

NUT

- light switch lock

1шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Light switch #10

2шт.

29

129-37

NUT,#10-32

Light switch #10-32

2шт.

30

A59695

KNOB

- light switch

1шт.

31

A59696

SCREW,#8 - 32 x 5/8"

- light switch knob

1шт.

Выбрано товаров: 27
