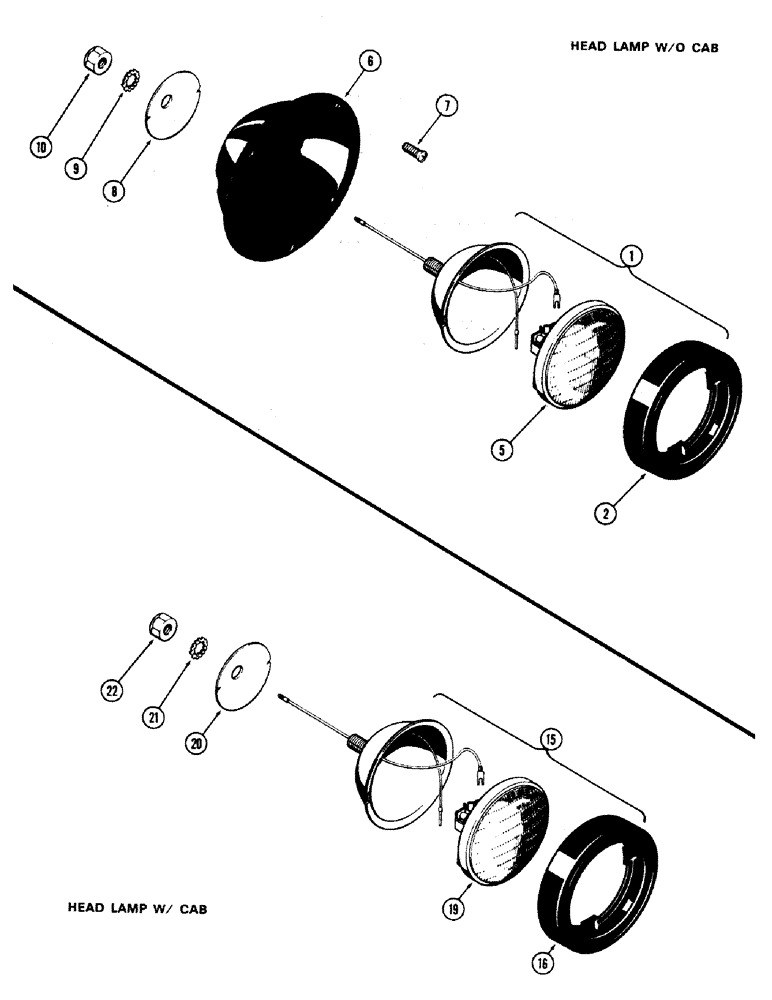

Запчасти Case IH 870 (103C) - LIGHTING EQUIPMENT, HEAD LAMPS, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

A59701

LAMP

- front head driving (includes ref. 2 & 5)

2шт.

2

A25213

RETAINER

- sealed beam (includes ref. 5)

1шт.

A24572

LAMP

KIT - head lamp (includes ref. 5)

1шт.

A11276

GASKET

- head lamp (Not applicable)

1шт.

5

A24572

LAMP

HEAD LAMP - sealed beam

1шт.

6

A59698

BEZEL

- front head lamp mtg., R.H.

1шт.

6

A59699

BEZEL

- front head lamp mtg., L.H.

1шт.

7

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" self-tapping

6шт.

8

A59702

RETAINER

- front head lamp

2шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

A59701

LAMP

- front head driving, w/cab, (includes ref. 16 & 19)

2шт.

16

A25213

RETAINER

- sealed beam, w/cab (includes ref. 19)

1шт.

A24572

LAMP

KIT - head lamp, w/cab (includes ref. 19)

1шт.

A11276

GASKET

- head lamp (Not applicable), w/cab

1шт.

19

A24572

LAMP

HEAD LAMP - sealed beam, w/cab

1шт.

20

A59702

RETAINER

- front head lamp, w/cab

2шт.

21

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/Cab Ext-Int Tooth, 1/2"

2шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

2шт.
