Запчасти Case IH 870 (086) - ELECTRICAL EQUIPMENT AND WIRING, (301B) SPARK IGNITION ENGINE, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

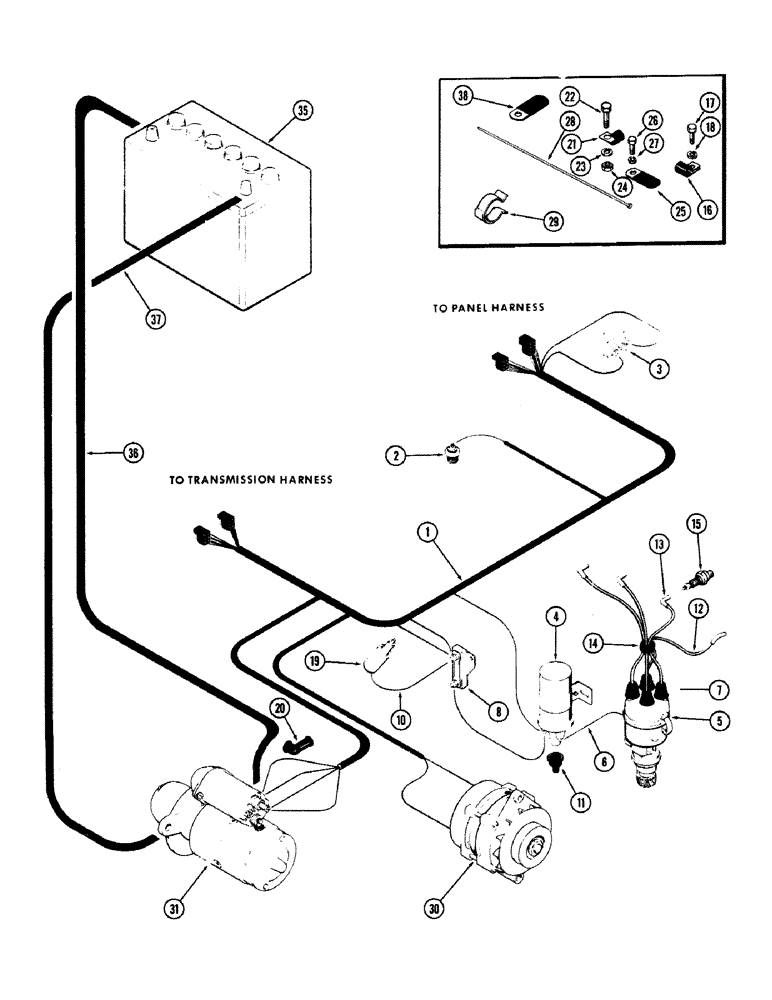

Схема запчастей Case IH 870 - (086) - ELECTRICAL EQUIPMENT AND WIRING, (301B) SPARK IGNITION ENGINE, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS
18
31
28
6
5
27
23
4
22
1
26
16
3
20
38
2
21
29
35
15
36
11
17
10
13
19
24
25
7
14
8
37
12
30

Артикул

Название

Примечание

Количество

1

A42411

VALVE SPRING

HARNESS - engine wire (Replaces A59715)

1шт.

2

F13156

SENDER UNIT

UNIT - eng. temp. sending (Stamped 362-AE) (Used w/A59681 gauge) (See page 84) (Used w/air conditioner)

1шт.

2

A61787

TRANSMITTER

UNIT - eng. temp. sending (Stamped 362-EP) (Used w/A61786 gauge) (See page 84) (Used w/air conditioner)

1шт.

2

A61787

TRANSMITTER

UNIT - eng. temp. sending (Stamped 362-EP) (Used w/A61785 gauge) (See page 84) (Used w/out air conditioner)

1шт.

3

A59704

BREAKER

- circuit

1шт.

4

A40778

COIL

- 12 volt

1шт.

5

A58810

DISTRIBUTOR - (See Figure 100)

1шт.

6

A29180

CABLE

WIRE - distributor to coil (High tension)

1шт.

7

A29338

COVER

NIPPLE - distributor & coil wires

5шт.

8

A24504

RESISTOR

- 6 volt

1шт.

10

A59716

WIRE - carb. solenoid to ignition resistor

1шт.

11

G46803

BOOT

NIPPLE - ignition coil wire

1шт.

12

A31212

ELECTRICAL WIRE

WIRE - spark plug, #1 & 4 cylinders (15" long)

2шт.

13

A20144

ELECTRICAL WIRE

WIRE - spark plug, #2 & 3 cylinders (11" long)

2шт.

14

A23258

RING - ignition wires

1шт.

15

G44840

SPARK PLUG

PLUG - spark

4шт.

16

A7922

CLIP

- wire, carb. solenoid

1шт.

17

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

A58808

SOLENOID

ASSY. - carburetor

1шт.

20

A21753

CAP

- starter positive terminal

1шт.

21

A59718

CLAMP

CLIP - engine wire harness

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Clip Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

A37179

CLIP

- fender & alternator wires

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

L11541

CABLE TIE,203.2mm L, Nylon

CLIP - engine wire harness

1шт.

29

A60894

CLIP

- alternator wire harness to breather tube

1шт.

30

NSS

NOT SOLD SEPARAT

ALTERNATOR ASSY. - (See Figure 82)

1шт.

31

NSS

NOT SOLD SEPARAT

STARTING MOTOR - (See Figure 82)

1шт.

35

A38411

DRY BATTERY

- 12 volt

1шт.

36

A62140

CABLE

- battery, positive (Replaces A59676)

1шт.

37

A59677

CABLE - battery, negative (Ground)

1шт.

38

A22883

CLIP

- battery cable

1шт.

Выбрано товаров: 36
