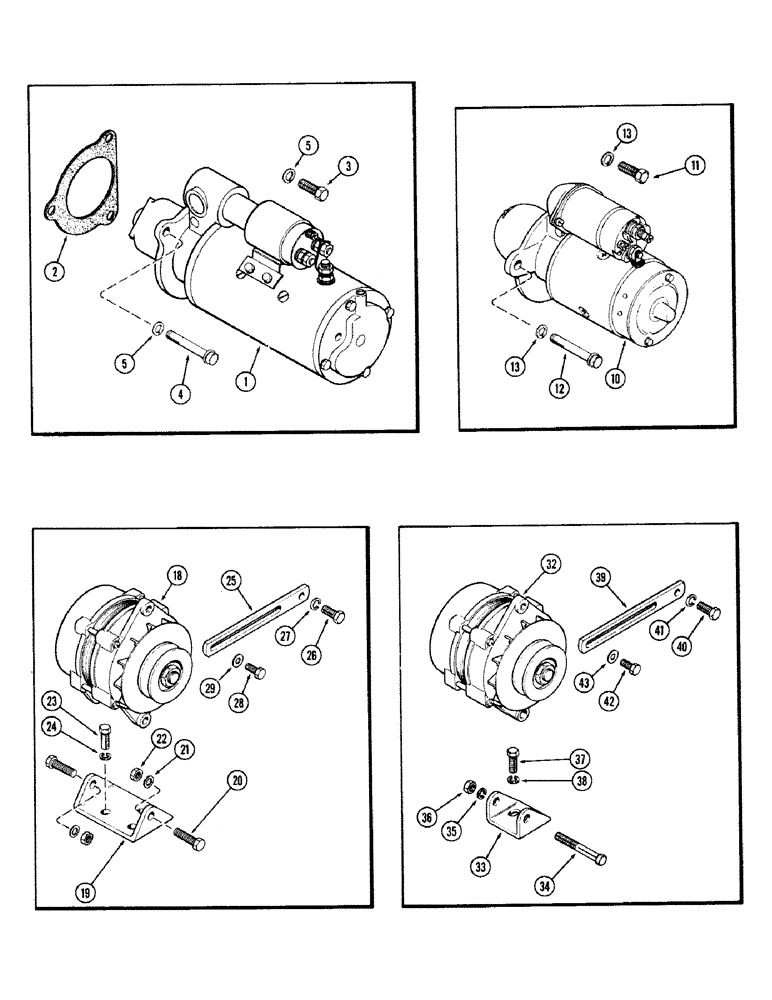

Запчасти Case IH 870 (082) - ELECTRICAL EQUIPMENT MOUNTING, STARTERS, (336B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A59217

STARTER MOTOR

STARTING MOTOR - (See Figures 90 & 92)

1шт.

2

A27933

GASKET

- starting motor (Power shift)

1шт.

3

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

BOLT - 1/2 x 1-1/2" N.C. hex, Nylock

2шт.

4

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - 1/2 x 3" N.C. ferry hd. cap

1шт.

5

92-8

LOCK WASHER,1/2"

3шт.

10

A59671

MOTOR

STARTING MOTOR - (See Figure 94), (301) spark ignition eng

1шт.

11

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

BOLT - 1/2 x 1-1/2" N.C. hex, nylock, (301) spark ignition eng

2шт.

12

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - 1/2 x 3" N.C. ferry hd., cap, (301) spark ignition eng

1шт.

13

92-8

LOCK WASHER,1/2"

(301) spark ignition eng. 1/2"

3шт.

18

A61062

ALTERNATOR ASSY. - (w/2 mtg. feet) (Eltra #ALH-5307-S) (Order 1- A42444 alternator, 1-A42267 pulley, & 1-A42098 regulator) (See Figure 98)

1шт.

19

A61063

BRACKET

- alternator mounting

1шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Alternator Hex, 3/8"-16 x 1 1/2", G5

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Alternator 3/8"

2шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Alternator 3/8"-16, G5

2шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Alternator Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

24

92-6

LOCK WASHER,3/8"

alternator 3/8"

3шт.

25

A59167

STRAP

- alternator adjusting

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Alternator Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

alternator 3/8"

1шт.

28

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Alternator

1шт.

29

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16", alternator

1шт.

32

A59761

ALTERNATOR

ASSY . - (w/1 mtg. foot) (Eltra #ALH-6306-S) (Order 1- A42444 alternator, 1-A61063 bracket, 3-113-209 bolts, 3-192-21 washers, 3-129-103 nuts, 1-A42098 regulator & 1-A42267 pulley) (See Figure 98)

1шт.

33

A38492

BRACKET

- alternator mounting

1шт.

34

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Alternator Hex, 3/8"-16 x 3", G5

1шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Alternator 3/8"

1шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Alternator 3/8"-16, G5

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Alternator Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

38

92-6

LOCK WASHER,3/8"

alternator 3/8"

2шт.

39

A59167

STRAP

- alternator adjusting

1шт.

40

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Alternator Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

41

92-6

LOCK WASHER,3/8"

alternator 3/8"

1шт.

42

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Alternator

1шт.

43

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16", alternator

1шт.
