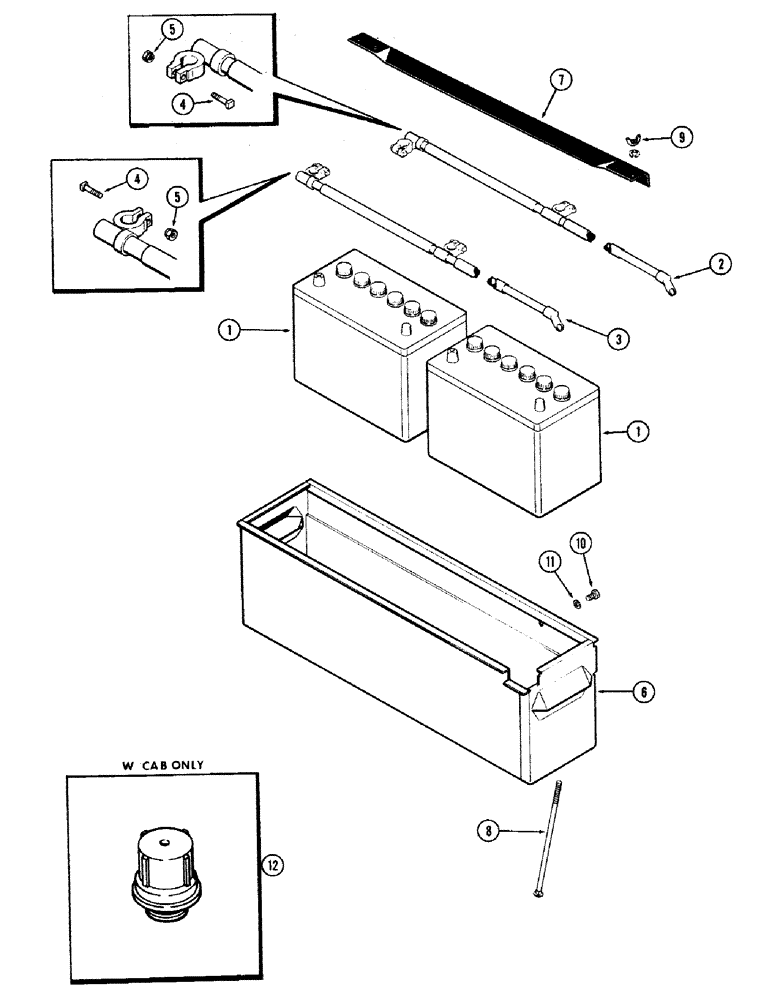

Запчасти Case IH 870 (080) - BATTERY - CABLES - BATTERY BOX, (336B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- 12 volt

2шт.

2

A59728

CABLE

ASSY. - battery, negative (Ground) (includes ref. 4 & 5)

1шт.

3

A62141

ELECTRIC CABLE

CABLE ASSY. - battery, positive (Replaces A59727) (includes ref. 4 & 5)

1шт.

4

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- cable, 5/16 x 1-3/8" N.C., sq. hd.

2шт.

5

129-516

NUT

- cable bolt, 5/16" N.C. hex, w/shoulder

2шт.

6

A62137

BOX

ASSY. - battery (Replaces A59556)

1шт.

7

A59173

CLAMP

- battery hold down

1шт.

8

11-5160

BOLT

- battery hold down

2шт.

9

G49020

NUT

- 5/16" N.C. wing

2шт.

10

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

11

92-5

LOCK WASHER,5/16"

1шт.

12

A60553

CAP

- battery, non spill vent

12шт.
