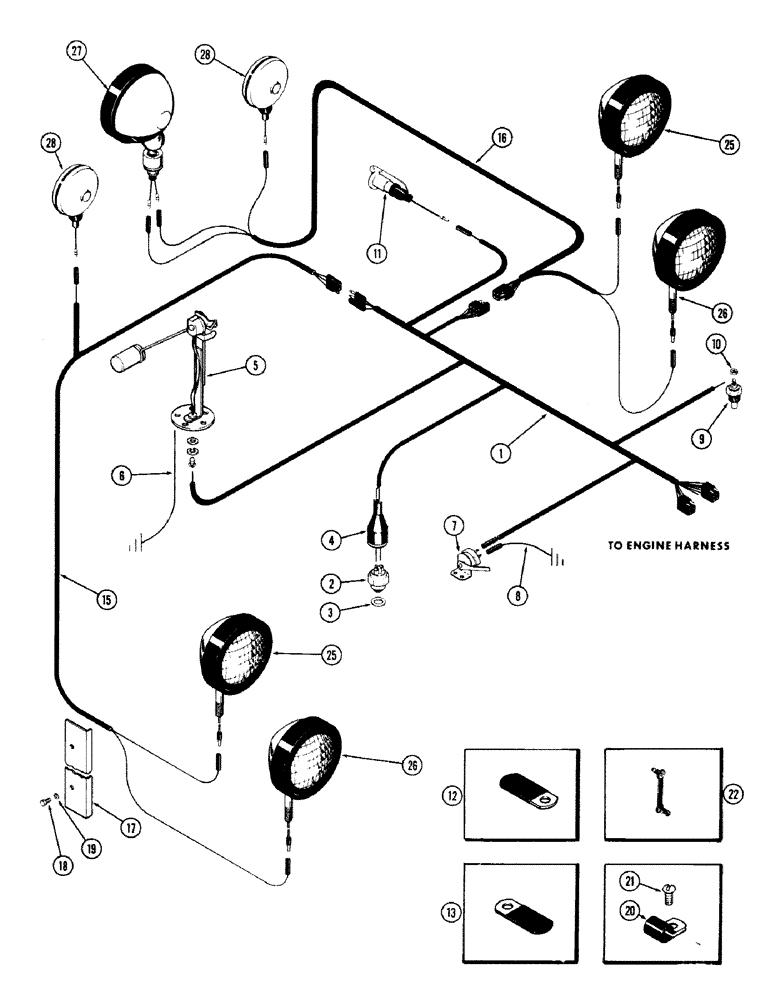

Запчасти Case IH 870 (078) - ELECTRICAL EQUIPMENT AND WIRING, (336B) DIESEL ENGINE, TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A62413
HARNESS
- trans. wire (1st used trac. ser. no. 8675001)
1шт.
1
A61132
HARNESS - trans. wire (Used prior to trans. ser. no. 8675001)
1шт.
2
A20990
SWITCH
- safety, neutral start
1шт.
3
G49401
SHIM,.005" Thk
Neutral start switch (Mechanical shift) .005" Thk
1шт.
3
G49402
SHIM,.010" Thk
Neutral start switch (Mechanical shift) .010" Thk
1шт.
4
A61028
BOOT
- neutral start switch
1шт.
5
A62092
UNIT
- fuel sending (Replaces A59491)
1шт.
6
A59710
ELECTRICAL WIRE
WIRE - fuel gauge sender ground
1шт.
7
A33977
SWITCH
- hand brake warning
1шт.
8
A59711
ELECTRICAL WIRE
WIRE - hand brake switch ground
1шт.
9
A21462
SENDER UNIT
UNIT - trans. temp. sending (Replaces A58984)
1шт.
10
129-661
NUT
- #10 N.F. hex, outlet
1шт.
11
A8170
SOCKET
- auxiliary outlet
1шт.
12
A37179
CLIP
- trans. sending wire
1шт.
13
A22880
CLIP
- trans. wire harness & fuel sending unit
1шт.
15
A62412
HARNESS
- fender wire, R.H. (1st used trac. ser. no. 8675001)
1шт.
15
A59708
HARNESS
- fender wire, R.H. (Used prior to trac. ser. no. 8675001)
1шт.
16
A59709
HARNESS
- fender wire, L.H.
1шт.
17
A59720
SHIELD - fender wire harness, L.H. (w/12" fender)
1шт.
17
A59721
SHIELD - fender wire harness, R.H. (w/12' fender)
1шт.
17
A60892
SHIELD - fender wire harness, R.H. & L.H. (w/15" fender)
2шт.
18
113-101
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
Shield Hex, 5/16"-18 x 1/2", G5, Full Thd
4шт.
19
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
20
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
- fender wires to fender
7шт.
21
187-1009
BOLT
SCREW - clamp, 1/4 x 3/8" hex hd., self tapping
7шт.
22
A62547
CLAMP
- fender wires
1шт.
25
A59701
LAMP
- front head driving (See Figure 103A)
2шт.
26
A59724
HEADLAMP
LAMP - front cultivator (See Figure 104) (For 12" fender)
2шт.
26
A59723
LAMP
- front cultivator (See Figure 104) (For 15" fender)
2шт.
27
A59703
LAMP
- rear flood & tail (See Figure 105A)
1шт.
28
A34853
LAMP
- flasher (See Figure 102)
2шт.
Выбрано товаров: 31
