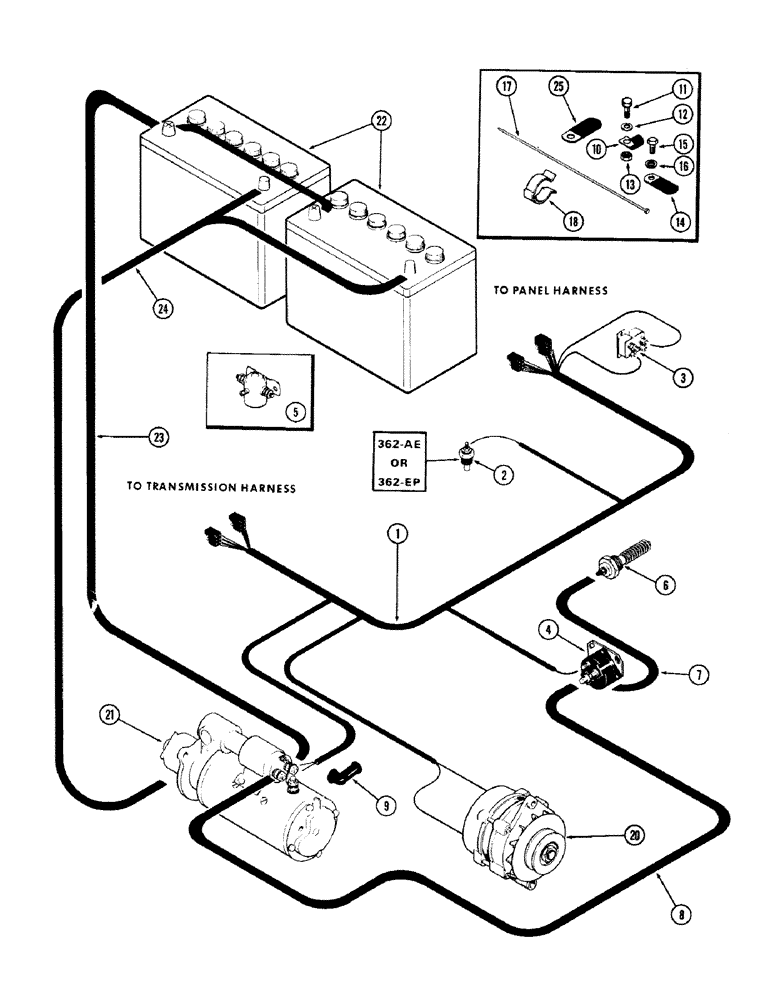

Запчасти Case IH 870 (076) - ELECTRICAL EQUIPMENT AND WIRING, (336B) DIESEL ENGINE, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A59706

HARNESS

- engine wire

1шт.

2

F13156

SENDER UNIT

UNIT - eng. temp. sending (Stamped 362-AE) (Used w/A59681 gauge) (See page 74) (Used w/air conditioner)

1шт.

2

A61787

TRANSMITTER

UNIT - eng. temp. sending (Stamped 362-EP) (Used w/A61786 gauge) (See page 74) (Used w/air conditioner)

1шт.

2

A61787

TRANSMITTER

UNIT - eng. temp. sending (Stamped 362-EP) (Used w/A61785 gauge) (See page 74) (Used w/out air conditioner)

1шт.

3

A59704

BREAKER

- circuit (See page 83A)

1шт.

4

A39079

SOLENOID

- manifold heater (1st used trac. ser. no. 8670718)

1шт.

5

A57069

SOLENOID

- manifold heater (Used prior to trac. ser. no. 8670718)

1шт.

6

A37775

HEATER

- manifold

1шт.

7

A59712

WIRE - manifold, Serial Range: heater-solenoid

1шт.

8

A59713

ELECTRICAL WIRE

WIRE - heater, Serial Range: solenoid-starter

1шт.

9

A21753

CAP

- starter positive terminal & heater solenoid battery terminal, rubber

2шт.

10

A59718

CLAMP

CLIP - engine wire harness

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Clip Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

A37179

CLIP

- fender & alternator wires

1шт.

15

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - engine wire harness

1шт.

18

A60894

CLIP

- alternator wire harness to breather tube

1шт.

20

NSS

NOT SOLD SEPARAT

ALTERNATOR ASSY. - (See page 82)

1шт.

21

NSS

NOT SOLD SEPARAT

STARTER MOTOR - (See page 82)

1шт.

22

A38411

DRY BATTERY

- 12 volt

2шт.

23

A62141

ELECTRIC CABLE

CABLE ASSY. - battery, positive (Replaces A59727)

1шт.

24

A59728

CABLE

- battery, negative (Ground)

1шт.

25

A22883

CLIP

- battery cable

1шт.
