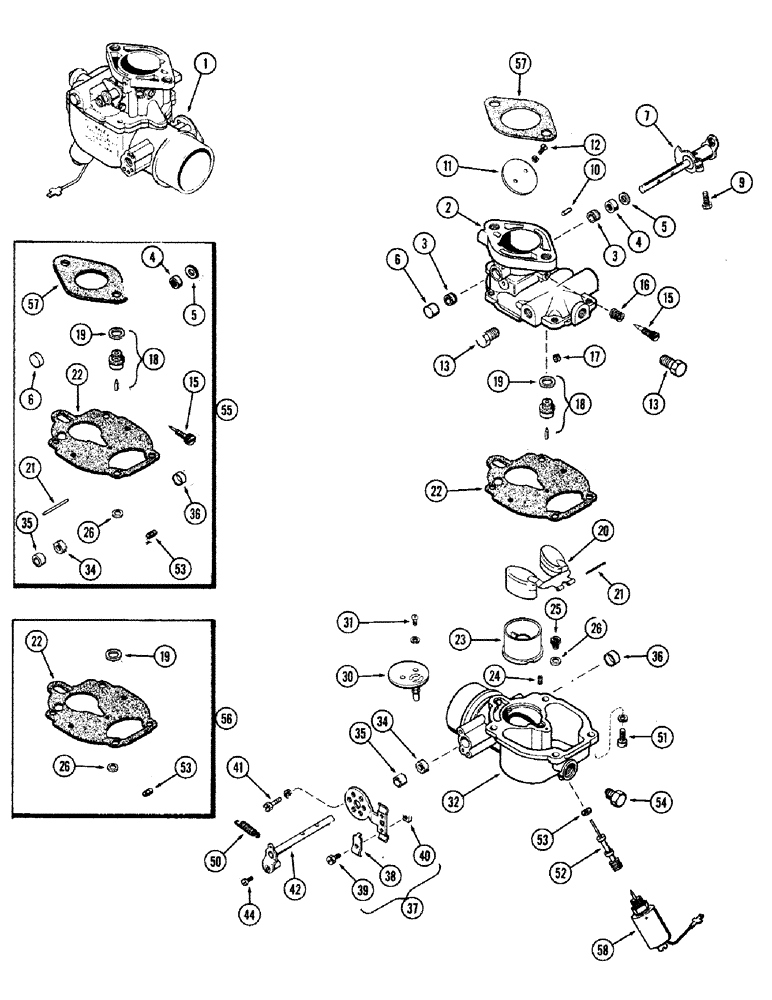

Запчасти Case IH 870 (073A) - A58807 CARBURETOR, (301B) SPARK IGNITION ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2323176 (03) - FUEL SYSTEM

1

A58807

CARBURETOR - (Zenith #0-13390) (includes ref. 2 - 7, 9 - 13, 15 - 26, 30, 31, 32, 34 - 42, 44 and 50 - 56)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - throttle (Order ref. 1) (includes ref. 3 - 6)

1шт.

3

A40609

BUSHING

- throttle shaft

1шт.

4

B51528

SEAL

- throttle shaft

1шт.

Part of carburetor repair kit P/N A41085

1шт.

5

B59360

RETAINER

WASHER - throttle shaft seal retaining

1шт.

Part of carburetor repair kit P/N A41085

1шт.

6

A40612

PLUG

- throttle shaft hole

1шт.

Part of carburetor repair kit P/N A41085

1шт.

7

A42400

SHAFT

LEVER & SHAFT ASSY. - throttle (includes ref. 9)

1шт.

9

B51581

SCREW - stop

1шт.

10

138-36

LOCK PIN,3/32" x 7/16", Slotted

PIN, 3/32" x 7/16", Slotted

1шт.

11

A42348

PLATE - throttle

1шт.

12

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- throttle plate

2шт.

13

B51541

PLUG

- fuel inlet

2шт.

15

B51265

HOSE

NEEDLE - idle adjusting

1шт.

Part of carburetor repair kit P/N A41085

1шт.

16

B51404

SPRING

- idle needle

1шт.

17

A42354

JET - idle

1шт.

18

A41086

VALVE SEAT

VALVE & SEAT - fuel (Matched) (includes ref. 19)

1шт.

Part of carburetor repair kit P/N A41085

1шт.

19

B51618

WASHER

- fuel valve seat

1шт.

20

B51359

FLOAT

1шт.

21

B51433

AXLE

- float

1шт.

Part of carburetor repair kit P/N A41085

1шт.

22

B51471

GASKET

- bowl

1шт.

Part of carburetor repair kit P/N A41085

1шт.

23

A42352

VENTURI

1шт.

24

B51338

TUBE

JET - well vent

1шт.

25

A42353

JET - main

1шт.

26

B51619

WASHER

- main jet

1шт.

Part of carburetor repair kit P/N A41085

1шт.

30

B51362

PLATE ASSY. - choke (Replaces A42351)

1шт.

31

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke plate

2шт.

32

NSS

NOT SOLD SEPARAT

BOWL ASSY. - fuel (includes ref. 34, 35 & 36)

1шт.

34

B51533

WASHER

- packing, choke shaft

1шт.

Part of carburetor repair kit P/N A41085

1шт.

35

B51439

RETAINER

- packing

1шт.

Part of carburetor repair kit P/N A41085

1шт.

36

B51509

PLUG

- choke shaft hole

1шт.

Part of carburetor repair kit P/N A41085

1шт.

37

A42350

BRACKET - choke (includes ref. 38, 39 & 40)

1шт.

38

B51403

CLIP

- choke rod

1шт.

39

B51580

SCREW

- clip

1шт.

40

129-76

SQUARE NUT,#8 - 36

- #8 N.F., sq.

2шт.

41

B51458

SCREW,#8 - 32 x 0.37"

- bracket

2шт.

42

A42356

SHAFT - choke (includes ref. 44)

2шт.

44

B51579

SCREW - swivel, choke rod

1шт.

50

B51412

SPRING

- return, choke lever

1шт.

51

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

52

A42355

JET - discharge

1шт.

53

B51610

WASHER

- discharge jet

1шт.

Part of carburetor repair kit P/N A41085

1шт.

54

B51541

PLUG

- bowl drain

1шт.

55

A41085

KIT

- carburetor repair (includes ref. 4, 5, 6, 15, 18, 21, 22, 26, 34, 35, 36, 53, 56 and 57)

1шт.

56

A40623

GASKET KIT

KIT - carburetor gaskets (includes ref. 19, 22, 26 and 53)

1шт.

Part of carburetor repair kit P/N A41085

1шт.

57

A26434

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of carburetor repair kit P/N A41085

1шт.

58

A61270

SOLENOID

ASSY. - fuel cut-off

1шт.
