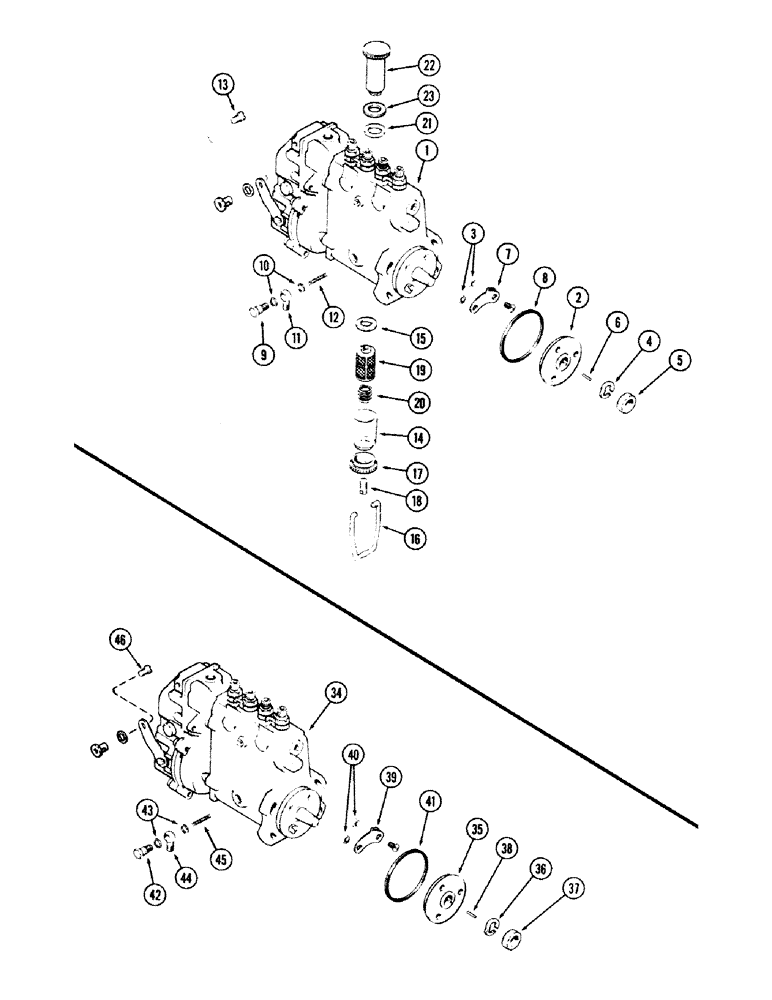

Запчасти Case IH 870 (067A) - FUEL INJECTION PUMPS, (336B) DIESEL ENGINE, W/FILTER & HAND PUMP, 1ST USED ENGINE SERIAL NO. 2323001 (03) - FUEL SYSTEM

1

A62569

PUMP

ASSY. - fuel injection (2000 R.P.M.) (includes ref. 2 - 23)

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - pump timing pointer

2шт.

4

A42312

LOCK WASHER

- lock, pump drive hub nut

1шт.

5

A42313

NUT

- pump drive hub

1шт.

6

A20933

KEY

- pump drive, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - seal, pump mounting

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A44259

SCREW

- lock, pump stop control cable

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAIL NUT - retaining

1шт.

18

A43349

STUD

- retaining, bowl

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter, transfer pump

1шт.

20

A43345

SPRING

- retaining, element

1шт.

21

A43351

SEAL

- primer & port copper gasket

2шт.

22

A43343

CARTRIDGE

PRIMER ASSY. - hand, fuel pump (includes ref. 23)

1шт.

23

A44761

GASKET

- pump seal (Rubber)

1шт.

34

A58534

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (1900 R.P.M.), w/o filter or hand used prior to eng s/n 2323001 (includes ref. 35 - 46)

1шт.

35

A41853

HUB

- pump drive, w/o filter or hand used prior to eng s/n 2323001

1шт.

36

A42312

LOCK WASHER

- lock, hub nut, w/o filter or hand pump used prior to eng s/n 2323001

1шт.

37

A42313

NUT

- hub, w/o filter or hand pump used prior to eng s/n 2323001

1шт.

38

A20933

KEY

- hub to shaft, w/o filter or hand pump used prior to eng s/n 2323001

1шт.

39

A41854

INDICATOR

POINTER - pump adjustment, w/o filter or hand used prior to eng s/n 2323001

1шт.

40

A41855

BUSHING

SPACER - pointer, w/o filter or hand pump used prior to eng s/n 2323001

2шт.

41

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mounting, w/o filter or hand used prior to eng s/n 2323001

1шт.

42

A25192

BANJO BOLT

BOLT - oil tube fitting, w/o filter or hand pump used prior to eng s/n 2323001

1шт.

43

A22381

WASHER

- tube fitting, copper, w/o filter or hand pump used prior to eng s/n 2323001

2шт.

44

A25191

FITTING

- oil tube to pump, banjo, w/o filter or hand used prior to eng s/n 2323001

1шт.

45

A25190

SPRING

- oil tube fitting, w/o filter or hand pump used prior to eng s/n 2323001

1шт.

46

A59101

PIVOT

- stop control cable, w/o filter or hand pump used prior to eng s/n 2323001

1шт.
