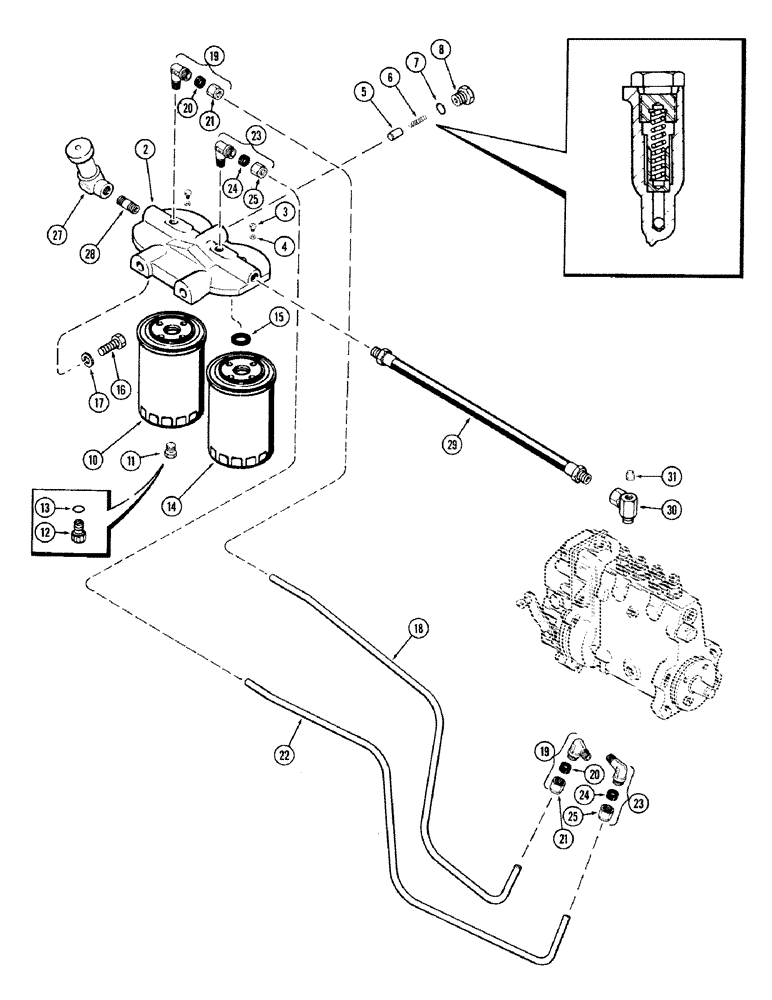

Запчасти Case IH 870 (065A) - FUEL INJECTION FILTER SYSTEM, (336B) DIESEL ENGINE, USED PRIOR TO ENG. SER. NO. 2323001 (03) - FUEL SYSTEM

A58719

FILTER

ASSY. - (1st & 2nd stage) (includes ref. 2 - 8)

1шт.

2

A58711

FILTER

HEAD - filter

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed

2шт.

4

A20662

GASKET

WASHER - bleed screw

2шт.

5

A24917

PLUNGER

- relief valve

1шт.

6

A24918

SPRING

- relief valve

1шт.

7

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plug, 1/2 x 11/16 x 3/32"

1шт.

8

A24916

PLUG

- relief valve

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - spin on filters (includes ref. 10 - 13)

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - 1st stage (includes ref. 11, 12 & 13)

1шт.

11

221-1661

PLUG

- 1/8" hex hd. pipe

1шт.

12

G49080

PLUG

- 3/8" N.F. hex, plastic

1шт.

13

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - w/plastic plug, 3/8 x 9/16 x 3/32"

1шт.

14

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage (includes ref. 15)

1шт.

15

A42315

GASKET

- 2nd stage filter

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

A58772

TUBE

- 1st, Serial Range: stage-pump

1шт.

19

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line (includes ref. 20 & 21)

2шт.

20

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

21

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

22

A58773

TUBE

- pump to 2nd stage

1шт.

23

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line (includes ref. 24 & 25)

2шт.

24

222-103

SLEEVE,5/16" Tube

1шт.

25

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

27

A60042

PUMP

- hand primer

1шт.

27

A60042R

REMAN-FUEL LIFT PUMP

Hand Primer

1шт.

27

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

28

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" P.T. x 1"

1шт.

29

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- filter, Serial Range: head-pump

1шт.

30

A20539

FITTING

UNION - switch (In injection pump)

1шт.

31

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.
