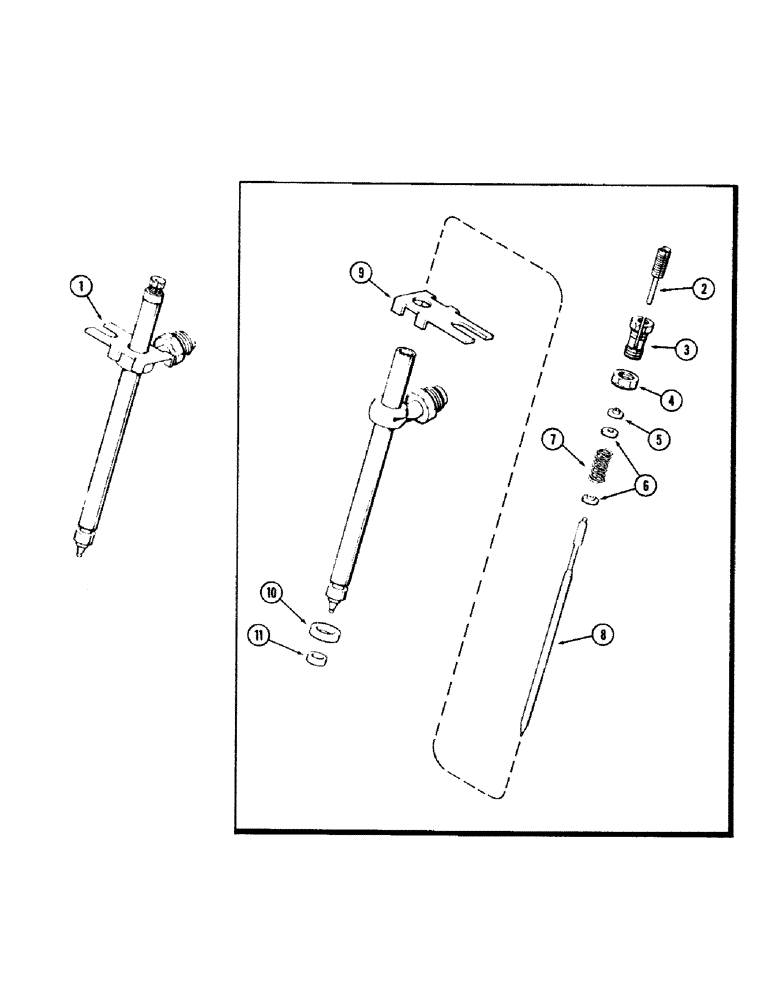

Запчасти Case IH 870 (063A) - FUEL INJECTION NOZZLE, (336B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A59092

NOZZLE INJECTION

NOZZLE ASSY. - fuel injection (Supplier's No. 18366 stamped on body) (includes ref. 2 - 11)

4шт.

A140830R

REMAN-INJECT NOZZLE

870 (PRIOR TO P.I.N. 8675001) (1/69-12/74), Reman for new PN A59092

4шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

3

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

4

A42424

LOCK NUT

- hex.

1шт.

5

A41407

WASHER

- ball

1шт.

6

A41401

SEAT

- spring

2шт.

7

A41444

VALVE SPRING

SPRING - nozzle pressure adjusting

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

9

A41768

PLATE

- nozzle locating

1шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
