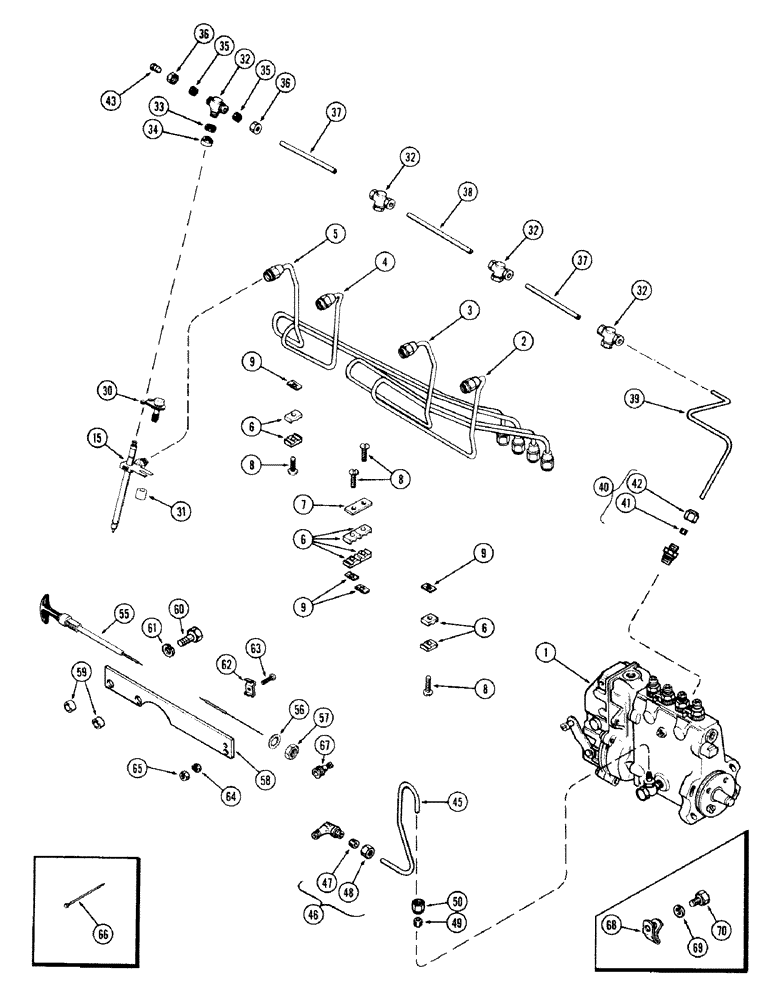

Запчасти Case IH 870 (062) - FUEL INJECTION SYSTEM, (336B) DIESEL ENGINE (03) - FUEL SYSTEM

1

NSS

NOT SOLD SEPARAT

PUMP ASSY. - fuel injection (See Figure 67A)

1шт.

2

A58702

TUBE

ASSY. - fuel injection #1 cylinder

1шт.

3

A58703

TUBE

ASSY. - fuel injection #2 cylinder

1шт.

4

A58704

TUBE

ASSY. - fuel injection #3 cylinder

1шт.

5

A58705

TUBE

ASSY. - fuel injection #4 cylinder

1шт.

6

A58709

BRACKET

- injection tube

8шт.

7

A58710

PLATE

- bracket

1шт.

8

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach., #10 x 1" N.C. rd. hd.

4шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 flat, tinnerman

4шт.

15

A59092

NOZZLE INJECTION

NOZZLE ASSY. - fuel injection (See Figure 62)

4шт.

A140830R

REMAN-INJECT NOZZLE

870 (PRIOR TO P.I.N. 8675001) (1/69-12/74), Reman for new PN A59092

4шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

30

A58695

CLAMP

ASSY. - nozzle

4шт.

31

A58696

SPACER

- nozzle clamp

4шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP ASSY. - nozzle leak-off

4шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- cap

4шт.

34

A58961

NUT

- cap

4шт.

35

222-102

SLEEVE,1/4" Tube

8шт.

36

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

8шт.

37

A58965

TUBE

- leak-off (4-5/8" long)

2шт.

38

A58964

TUBE

- leak-off (5-5/8" long)

1шт.

39

A58963

TUBE

- leak-off, #1, Serial Range: nozzle-valve

1шт.

40

A59097

VALVE

- leak-off check (In injection pump) (includes ref. 41 - 42)

1шт.

41

222-102

SLEEVE,1/4" Tube

2шт.

42

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

43

47-47

RIVET,FH, 1/4" x 7/16"

- leak-off tee, 1/4 x 7/16" flat hd. (Replaces A38159)

1шт.

45

A58775

TUBE

- oil, Serial Range: gallery-pump

1шт.

46

222-68

ELBOW - oil gallery

1шт.

47

222-102

SLEEVE,1/4" Tube

- for 1/8" tube

1шт.

48

87017024

TUBE NUT,1/2"-24

NUT - for 1/8" tube

1шт.

49

222-102

SLEEVE,1/4" Tube

Oil gallery to pump 1/4" Tube

1шт.

50

87017024

TUBE NUT,1/2"-24

NUT - oil gallery to pump

1шт.

55

A62112

CONTROL

- flexible stop

1шт.

56

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

57

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" N.C. hex, jam

1шт.

58

A62095

BRACKET - cable (1st used eng. ser. no. 2310064)

1шт.

59

A62096

SPACER

- bracket

2шт.

60

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

61

92-6

LOCK WASHER,3/8"

2шт.

62

B51765

CLIP

- cable

1шт.

63

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- #8 x 1/2" N.C. rd. hd., sltd.

1шт.

64

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

65

129-16

NUT,#8-32

1шт.

66

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon

2шт.

67

A59101

PIVOT

- stop control

1шт.

68

A59768

CLIP - stop cable (Used prior to eng. ser. no. 2310064)

1шт.

69

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

70

92-6

LOCK WASHER,3/8"

1шт.
