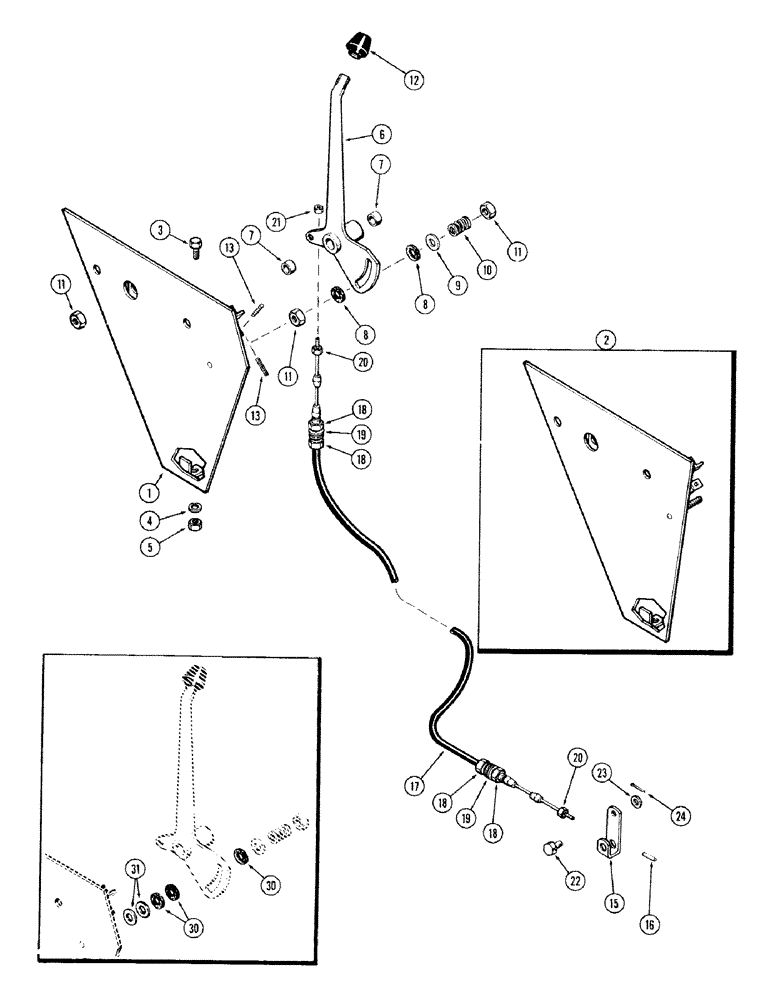

Запчасти Case IH 870 (054) - THROTTLE CONTROLS, HAND THROTTLE, (301B) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A62420

PLATE

ASSY. - console front shaft support (1st used trac. ser. no. 8670148)

1шт.

2

A61038

PLATE

ASSY. - console front shaft support (Used prior to trac. ser. no. 8670148)

1шт.

3

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

4

92-6

LOCK WASHER,3/8"

1шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

6

A61074

LEVER ASSY. - hand throttle (includes ref. 7)

1шт.

7

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever, 5/8 x 3/4 x 1/2" bronze

2шт.

8

A61069

DISC

- friction

2шт.

9

195-2035

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 14 ga.

1шт.

10

A26546

SPRING

- friction disc

1шт.

11

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C., jam

4шт.

12

A65699

KNOB

- lever (Replaces A23885, A65541 & A62078)

1шт.

13

A61105

SCREW,1/4" - 20 x 1.20", Mild Steel

- 1/4 x 1-1/2" N.C. slotted nylock set

2шт.

15

A61702

LEVER

- throttle override (Replaces A59164)

1шт.

16

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

17

A59434

CABLE

- hand throttle (includes ref. 18, 19 & 20)

1шт.

18

25-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16" N.F. hex, jam

4шт.

19

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER - Shakeproof, 7/16" int.

4шт.

20

129-27

NUT,Hex, #10 - 32

- hex (#10 N.F. jam)

2шт.

21

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex, Keps

1шт.

22

A61703

PIVOT

- throttle (Replaces A59251)

1шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

24

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

30

A61069

DISC

- friction

1шт.

31

195-2035

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 14 ga.

1шт.
