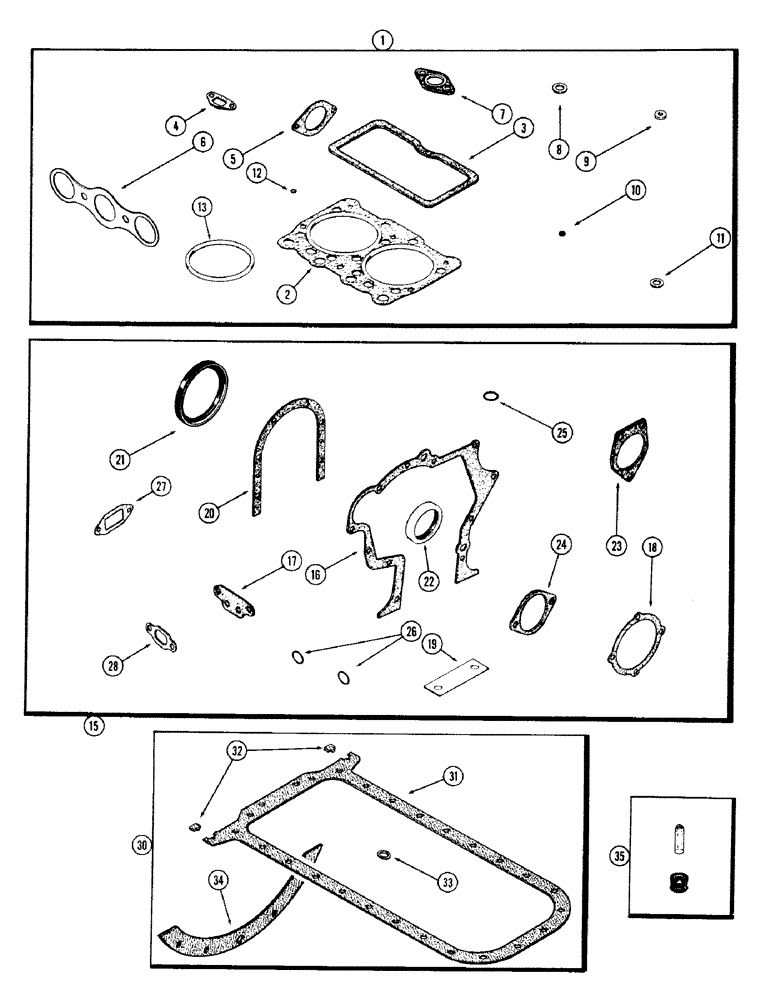

Запчасти Case IH 870 (052) - ENGINE GASKET KITS, (301B) SPARK IGNITION ENGINE, 1ST USED ENG. SER. NO. 2322106 (02) - ENGINE

1

A43183

GASKET

KIT - valve grind (Replaces A42024) (includes ref. 2 - 13)

1шт.

2

A62216

GASKET

- cylinder head (Replaces A59096)

2шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A58928)

2шт.

4

A27905

GASKET

- water manifold

4шт.

5

A28113

GASKET

- thermostat housing

1шт.

6

A58804

GASKET

- intake & exhaust manifolds

2шт.

7

A26434

GASKET

- carburetor

1шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

2шт.

9

A23684

GASKET

GASKET - cover studs

4шт.

10

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

SHIELD - oil, intake valve stem

8шт.

11

A34133

GASKET

- breather screw

2шт.

12

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

13

A59095

GASKET

RING - fire (Std.)

4шт.

15

A41834

CYLINDER

GASKET KIT - cylinder block (includes ref. 16 - 28)

1шт.

16

A58612

GASKET

- timing gear cover

1шт.

17

A58756

OIL PAN GASKET SET

- oil filter base

1шт.

18

A58646

GASKET

- water pump

1шт.

19

A58859

SHIM,.005" Thk

Oil pump .005" Thk

2шт.

20

A32830

GASKET

- rear seal retainer

1шт.

21

A62050

OIL SEAL

- oil, crankshaft, rear

1шт.

22

A62049

OIL SEAL

- oil, crankshaft front

1шт.

23

A58820

GASKET

- governor mounting

1шт.

24

A58617

GASKET

- pump mounting bracket

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - distributor

1шт.

26

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - lub oil filter base (Not applicable)

3шт.

27

A58649

GASKET

- water, Serial Range: pump-block

1шт.

28

A58670

GASKET

- oil cooler water opening

1шт.

30

A43005

GASKET KIT

- oil pan (includes ref. 31 - 34)

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A43005)

1шт.

32

A62402

GASKET

- oil pan corners

2шт.

33

A58608

GASKET

- oil pan drain plug

1шт.

33

A58933

OIL PAN GASKET SET

- oil pan drain plug (Not applicable)

1шт.

34

A57966

GASKET

- torque converter (Not applicable)

1шт.

35

M20614

SEAL KIT

SEAL KIT - valve (Set of 4)

2шт.
