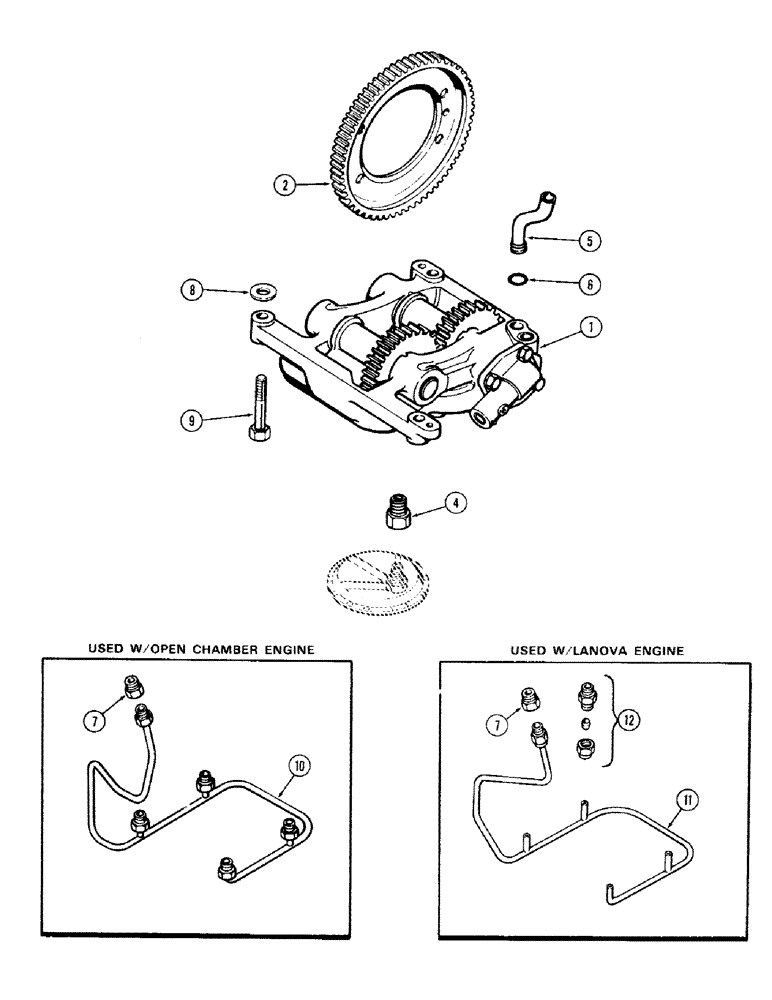

Запчасти Case IH 870 (049C) - BALANCER CONVERSION, (301B) SPARK IGNITION ENGINE, TO CONVERT 3 GEAR BALANCER TO 2 GEAR BALANCER (02) - ENGINE

1

A62595

BALANCER

ASSY. - 2 gear (See page 48)

1шт.

2

A62450

GEAR

- balancer drive (86 teeth) (includes ref. 4 - 12)

1шт.

A43000

KIT

- balancer attaching parts

1шт.

4

A21235

FITTING

ADAPTER - oil screen

1шт.

5

A61130

TUBE

- oil pump

1шт.

6

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - 9/16 x 3/4 x 3/32"

1шт.

7

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - tube

1шт.

8

G49401

SHIM,.005" Thk

Balancer housing .005" Thk

4шт.

8

G49402

SHIM,.010" Thk

Balancer housing .010" Thk

4шт.

9

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.C. hex

2шт.

9

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" N.C. hex

2шт.

10

A62002

MANIFOLD

- oil supply (Used w/open chamber engine)

1шт.

11

A43022

MUFFLER

MANIFOLD - oil supply (Used w/Lanova engine)

1шт.

12

222-602

FITTING,7/16"-24 x 1/8" NPT, Comp

CONNECTOR - 1/8" P.T., 1/4" tube

4шт.
