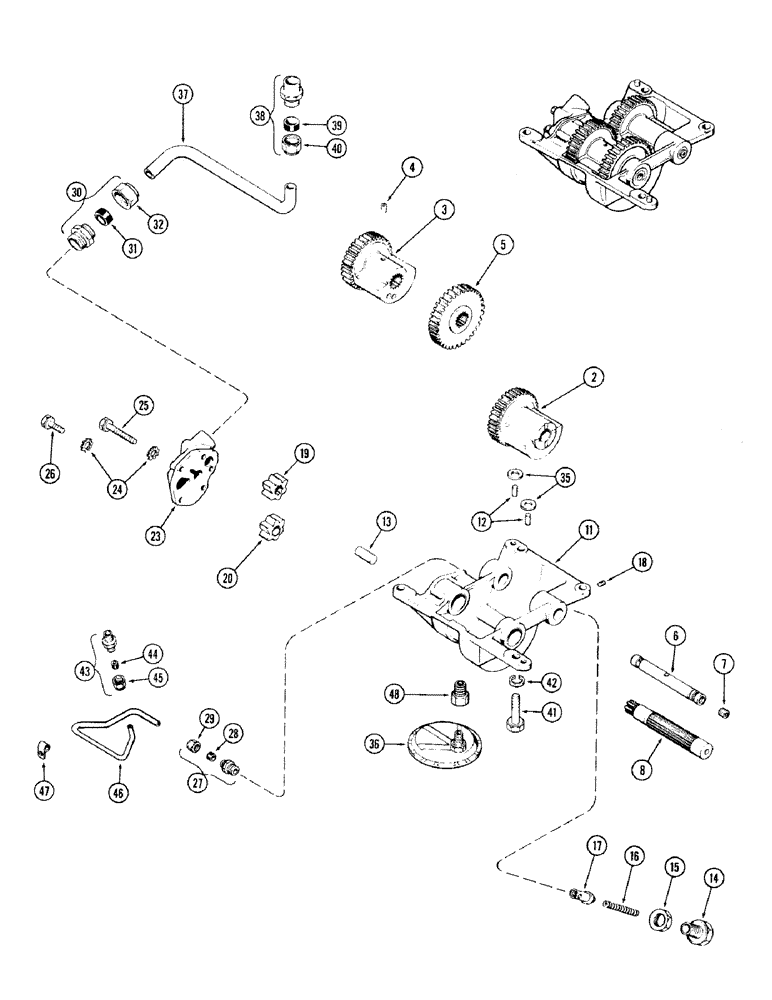

Запчасти Case IH 870 (049A) - 3 GEAR BALANCER & OIL PUMP, (301B) SPARK IGNITION ENGINE (02) - ENGINE

NSS

NOT SOLD SEPARAT

BALANCER & OIL PUMP ASSY. - engine (includes ref. 2 - 8, 11 - 20 and 23 - 32)

1шт.

2

NSS

NOT SOLD SEPARAT

COUNTERWEIGHT ASSY. - driven

1шт.

3

NSS

NOT SOLD SEPARAT

COUNTERWEIGHT ASSY. - drive (Splined)

1шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8 x 3/8" N.C. sckt. hd. cup pt.

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - drive, counterweight

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - stationary

1шт.

7

221-841

PLUG

- 1/4" P.T., sckt. hd.

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT ASSY. - drive, counterweight

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING ASSY. - balancer (includes ref. 12 - 13)

1шт.

12

A8134

PIN

- dowel housing, 3/8 x 3/4"

2шт.

13

NSS

NOT SOLD SEPARAT

SHAFT - stub, oil pump gear

1шт.

14

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

15

A27858

NUT

- adjusting screw

1шт.

16

A23598

VALVE SPRING

SPRING - relief, oil pump

1шт.

17

A22566

PLUNGER

PLUMGER - relief, oil pump

1шт.

18

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16 x 3/8" hex, sckt., cone pt.

1шт.

19

A22564

GEAR

- drive, oil pump (Splined)

1шт.

20

A22555

GEAR

ASSY. - oil pump, w/bushing

1шт.

23

NSS

NOT SOLD SEPARAT

COVER - outlet, oil pump

1шт.

24

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

25

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cover Hex, 5/16"-18 x 2", G5

2шт.

26

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

27

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 1/4" P.T. (includes ref. 28 & 29)

1шт.

28

222-102

SLEEVE,1/4" Tube

1шт.

29

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

30

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - 1/2" P.T. (includes ref. 31 & 32)

1шт.

31

222-106

SLEEVE,5/8" Tube

- for 5/8" Tube

1шт.

32

222-116

TUBE NUT,1"-18

NUT - for 5/8" tube

1шт.

35

G49401

SHIM,.005" Thk

Housing to cylinder block .005" Thk

1шт.

35

G49402

SHIM,.010" Thk

Housing to cylinder block .010" Thk

1шт.

36

A22590

FILTER SCREEN

SCREEN ASSY. - oil inlet

1шт.

37

A62475

TUBE - oil pump to filter (Replaces A22595)

1шт.

38

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - 1/2" P.T. (includes ref. 39 & 40)

1шт.

39

222-106

SLEEVE,5/8" Tube

- for 5/8" Tube

1шт.

40

222-116

TUBE NUT,1"-18

NUT - for 5/8" tube

1шт.

41

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

42

92-8

LOCK WASHER,1/2"

4шт.

43

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY. - 1/8" P.T. (includes ref. 44 & 45)

1шт.

44

222-102

SLEEVE,1/4" Tube

1шт.

45

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

46

A22596

TUBE

- oil gallery to balancer shaft

1шт.

47

A20541

CLIP

- oil tube

1шт.

48

A21235

FITTING

ADAPTER - oil screen

1шт.
