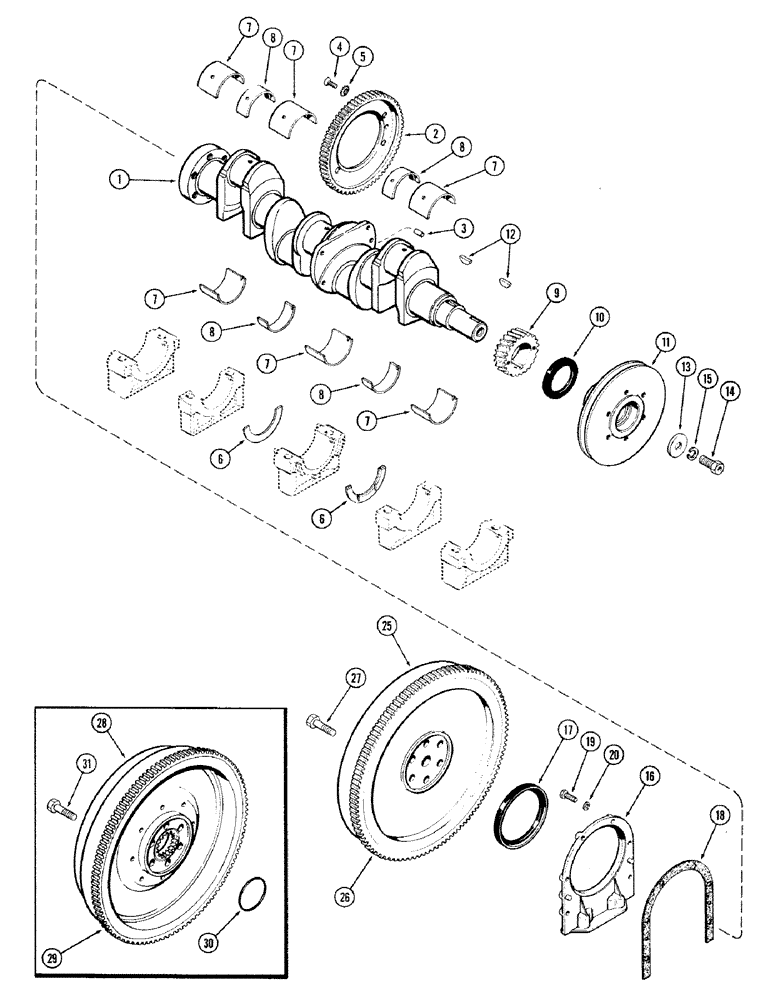

Запчасти Case IH 870 (044) - CRANKSHAFT AND FLYWHEEL, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A58889

CRANKSHAFT

1шт.

2

A62450

GEAR

- balancer drive (86 teeth) (Used w/2 gear balancer) See Figure 48)

1шт.

2

A22576

GEAR

- balancer drive (106 teeth) (Used w/3 gear balancer) (See Figure 49A)

1шт.

3

A8134

PIN

- balancer drive gear

1шт.

4

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - balancer, gear

4шт.

5

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

6

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, crankshaft (Std.) (Aluminum)

2шт.

6

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, crankshaft (.006" oversize) (Aluminum)

2шт.

7

A41987

LINING

LINER - main bearing, wide (Std.)

3шт.

7

A42191

LINING

LINER - main bearing, wide (-.002")

3шт.

7

A42192

BEARING LINER

LINER - main bearing, wide (-.010")

3шт.

7

A42193

LINER

- main bearing, wide (-.020")

3шт.

7

A42194

LINING

LINER - main bearing, wide (-.030")

3шт.

8

A20394

LINING

LINER - main bearing, narrow (Std.)

2шт.

8

A20579

LINING

LINER - main bearing, narrow (-.002")

2шт.

8

A20582

LINING

LINER - main bearing, narrow (-.010")

2шт.

8

A20585

KIT

LINER - main bearing, narrow (-.020")

2шт.

8

A20588

KIT

LINER - main bearing, narrow (-.030")

2шт.

9

A27837

GEAR

- crankshaft

1шт.

10

A62049

OIL SEAL

- crankshaft, front, 2-5/8 x 3-5/8 x 29/64" (includes ref. 11)

1шт.

11

A58746

PULLEY - fan drive

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

A57457

RETAINER

- crankshaft rear oil seal (includes ref. 17 & 18)

1шт.

17

A23085

OIL SEAL

- crankshaft, rear, 4-11/16 x 5-3/4 x 1/2"

1шт.

18

A32830

GASKET

- retainer

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

20

92-6

LOCK WASHER,3/8"

6шт.

25

A59040

FLYWHEEL ASSY. - w/o spline (Power shift) (includes ref. 26)

1шт.

26

A20875

GEAR, RING

GEAR - ring (174 teeth)

1шт.

27

114-621

BOLT

- 5/8 x 1-3/4" N.C. hex

6шт.

28

A20876

FLYWHEEL ASSY. - w/spline (Mechanical shift) (includes ref. 29)

1шт.

29

A20875

GEAR, RING

GEAR - ring (174 teeth)

1шт.

30

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft, 2-3/4 x 3 x 1/8"

1шт.

31

114-622

X

BOLT - 5/8 x 2" N.F. hex

6шт.
