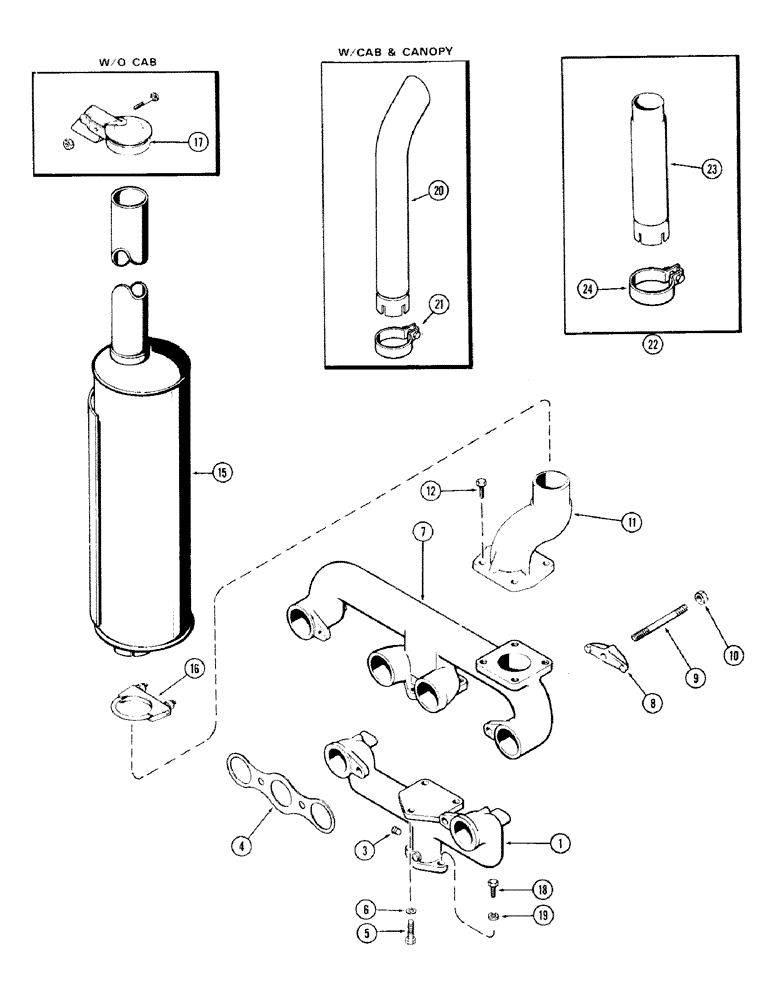

Запчасти Case IH 870 (036) - MANIFOLD AND MUFFLER, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A62715

MANIFOLD - intake (Replaces A58803)

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

4

A58804

GASKET

- intake & exhaust manifolds

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

A58805

MANIFOLD - exhaust

1шт.

8

A24368

CLAMP

- intake & exhaust manifolds

4шт.

9

A61051

STUD - intake & exhaust manifolds, 7/16" N.F. x 6"

4шт.

10

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

4шт.

11

A61168

STACK - exhaust manifold

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

15

A59764

MUFFLER

1шт.

16

A27115

CLAMP

- muffler

1шт.

17

D28028

CAP

- rain, muffler

1шт.

18

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

A62470

EXTENSION

- exhaust pipe, curved (Black) (Used w/cab & canopy)

1шт.

21

A62874

CLAMP

- extension (Black)

1шт.

22

A62718

KIT

EXHAUST EXTENSION KIT - (For tractors w/o cab or as an added extension on tractors w/cab or canopy) (includes ref. 23 & 24)

1шт.

23

A61109

EXTENSION

- exhaust pipe (Used w/cab)

1шт.

24

A62874

CLAMP

- extension (Used w/cab)

1шт.
