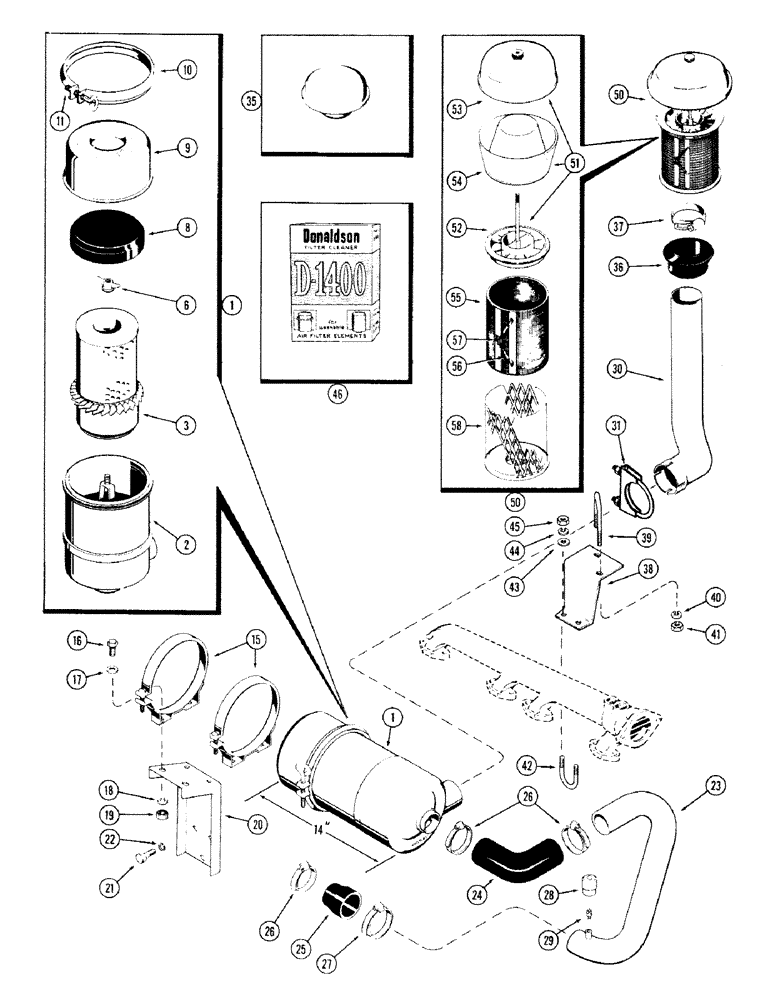

Запчасти Case IH 870 (034) - AIR CLEANER 14" LONG, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A59998

AIR CLEANER

CLEANER ASSY. - air (14" long) (includes ref. 2, 3, 6, 8, 9, 10 and 11)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. - cleaner

1шт.

3

A42274

AIR FILTER

ELEMENT ASSY. - cleaner

1шт.

6

F91761

WING NUT

& WASHER ASSY.

1шт.

8

F22312

BAFFLE

- rubber

1шт.

9

F91760

CUP

- cleaner

1шт.

10

F84999

CLAMP,168.28mm

ASSY. cleaner

1шт.

11

25-224

SQUARE NUT,Sq, 1/4"-20

- 1/4" N.C. hex

1шт.

15

L11247

BAND

S - air cleaner mounting

2шт.

16

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

17

195-20

WASHER

- 5/16 x 7/8 x 1/16"

4шт.

18

92-5

LOCK WASHER,5/16"

4шт.

19

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

20

A59208

BRACKET - air cleaner mounting

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

A61671

TUBE

- air cleaner to carburetor (Replaces A59560)

1шт.

24

A61673

HOSE

- air intake tube to air cleaner (Replaces A59564)

1шт.

25

A59563

HOSE

- air intake, Serial Range: tube-carburetor

1шт.

26

214-46

X

CLAMP - hose

4шт.

27

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

28

A59569

INDICATOR

- air restriction

1шт.

29

D36264

FITTING

FILTER - safety

1шт.

30

A59557

TUBE - air cleaner intake

1шт.

31

A13240

CLAMP,2-5/8" ID

- air cleaner intake tube (Replaces A62124)

1шт.

35

A61276

AIR CLEANER

CAP - air stack (Replaces A21433)

1шт.

36

A59558

GROMMET - air cleaner intake tube

1шт.

37

214-42

CLAMP

- air cleaner tube grommet

1шт.

38

A62661

SUPPORT - air cleaner tube

1шт.

39

A62663

"U" BOLT - air cleaner tube support

1шт.

40

92-5

LOCK WASHER,5/16"

2шт.

41

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

42

A62664

"U" BOLT - air cleaner tube

1шт.

43

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

44

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

45

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

46

A40910

CLEANER

DETERGENT - air cleaner element

1шт.

50

A61273

CLEANER

PRE-CLEANER ASSY. - pre-screener (Replaces F83641) (includes ref. 51 - 58)

1шт.

51

73184

CAMSHAFT

PRE-CLEANER (includes ref. 52 - 58)

1шт.

52

NSS

NOT SOLD SEPARAT

SLEEVE - adapter

1шт.

53

73187

COVER

- pre-cleaner

1шт.

54

NLS

NO LONGER SERVICED

BODY - pre-cleaner

1шт.

55

F83644

SCREEN

pre-cleaner (includes ref. 56 & 57)

1шт.

56

A22780

SPRING

pre-cleaner

2шт.

57

A22781

CLIP

pre-cleaner

1шт.

58

F83643

BODY, pre-cleaner

1шт.
