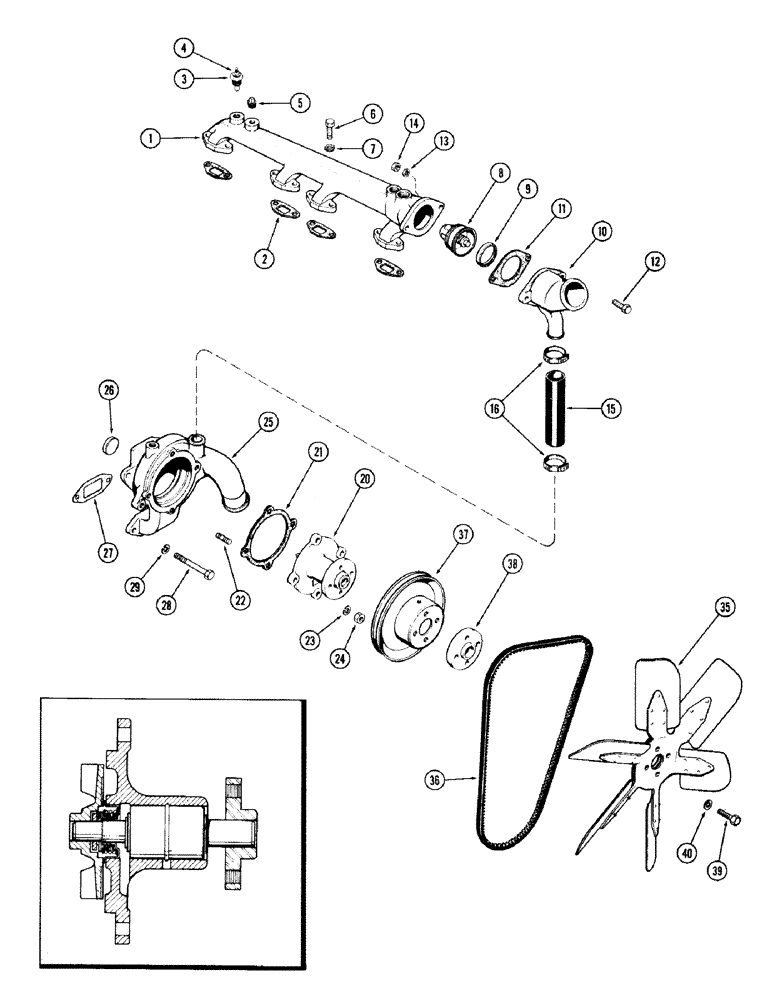

Запчасти Case IH 870 (032) - WATER MANIFOLD & THERMOSTAT, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A57995

MANIFOLD

- water

1шт.

2

A27905

GASKET

- water manifold

4шт.

3

F13156

SENDER UNIT

UNIT - temperature sending (Stamped 362-AE) (Used w/A59681 gauge) (See Figure 84) (Used w/air conditioner)

1шт.

These sender-gauge combinations are not interchangeable

1шт.

3

A61787

TRANSMITTER

UNIT - temperature sending (Stamped 362-EP) (Used w/A61786 gauge) (See Figure 84) (Used w/air conditioner)

1шт.

These sender-gauge combinations are not interchangeable

1шт.

3

A61787

TRANSMITTER

UNIT - temperature sending (Stamped 362-EP) (Used w/A61785) gauge) (See Figure 84) (Used w/air conitioner)

1шт.

These sender-gauge combinations are not interchangeable

1шт.

4

129-661

NUT

- #10 N.F. hex, brass

1шт.

5

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" P.T., sq. hd.

1шт.

6

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

7

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

8шт.

8

A28114

THERMOSTAT

(includes ref. 9)

1шт.

9

A30954

GASKET

SEAL - thermostat

1шт.

10

A61133

HOUSING - thermostat

1шт.

11

A28113

GASKET

- thermostat housing

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

13

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

15

A58814

HOSE

- water pump by-pass, 1-1/32 x 6-1/2"

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - by-pass hose, 1-3/16" to 1-3/4"

2шт.

20a

A58738

WATER PUMP

PUMP ASSY. - water

1шт.

21

A58646

GASKET

- pump to body, water

1шт.

22

A62234

STUD

- pump to body, 3/8" N.C. x 1-5/16", water

4шт.

23

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water pump Int Tooth, 3/8"

4шт.

24

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam, water pump

4шт.

25

A58779

HOUSING

BODY ASSY. - water pump (includes ref. 26)

1шт.

26

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup type, water pump

1шт.

27

A58649

GASKET

- body to block, water pump

1шт.

28

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Water pump Hex, 3/8"-16 x 1 1/8", G5, Full Thd

4шт.

29

92-6

LOCK WASHER,3/8"

water pump 3/8"

4шт.

35

A23106

HALF BLADE

FAN, water pump

1шт.

36

A59762

V-BELT,0.69" W x 59.25" L

Fan Drive, Water Pump 0.69" W x 59.25" L

1шт.

37

A58744

PULLEY

- fan driven, water pump

1шт.

38

A61283

BUSHING

SPACER - fan blade (3/4"), water pump

1шт.

38

A61268

BUSHING

SPACER - fan blade (1"), water pump

1шт.

39

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Used w/A61283 spacer), water pump Hex, 3/8"-16 x 1 3/4", G5

4шт.

39

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Used w/A61268 spacer), Water pump Hex, 3/8"-16 x 2", G5

4шт.

40

92-6

LOCK WASHER,3/8"

water pump 3/8"

4шт.
