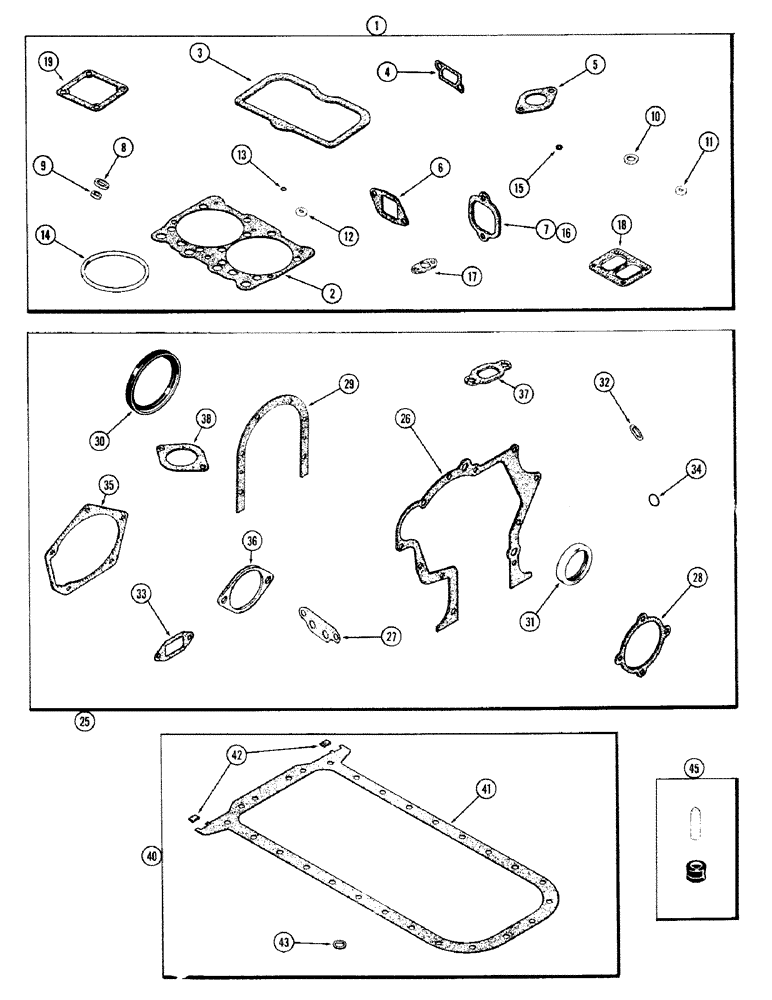

Запчасти Case IH 870 (029A) - ENGINE GASKET KITS, (336B) DIESEL ENGINE, USED PRIOR TO ENG. SER. NO. 2322106 (02) - ENGINE

1

A42245

GASKET

KIT - valve grind (includes ref. 2 - 19)

1шт.

2

A59121

CYLINDER HEAD GASKET

- cylinder head

2шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

4

A58637

MANIFOLD GASKET

- water manifold

2шт.

5

1342775C1

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

4шт.

7

A58895

GASKET

- exhaust manifold

4шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle

4шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon, injector nozzle

4шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

2шт.

11

A23684

GASKET

GASKET - cover studs

4шт.

12

A34133

GASKET

- breather screw

1шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

14

A58622

RING

- cylinder head fire

4шт.

15

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

8шт.

16

A58666

MANIFOLD GASKET

- exhaust manifold (Used w/out turbo)

4шт.

17

A58892

GASKET,1.59mm Thk

- oil drain tube, turbo

1шт.

18

A58899

GASKET,0.45mm Thk

- turbo & adapter base

2шт.

19

A58910

GASKET

- air intake elbow

1шт.

25

A42096

GASKET

KIT - cylinder block (includes ref. 26 - 38)

1шт.

26

A58612

GASKET

- timing gear cover

1шт.

27

A58756

OIL PAN GASKET SET

- oil filter base

1шт.

28

A58646

GASKET

- water pump

1шт.

29

A32830

GASKET

- rear seal retainer

1шт.

30

A62050

OIL SEAL

- oil, crankshaft, rear

1шт.

31

A62049

OIL SEAL

- oil, crankshaft, front

1шт.

32

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

33

A58649

GASKET

- water pump, Serial Range: body-block

1шт.

34

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - lub oil filter base (Not applicable)

3шт.

35

A58615

GASKET

- fuel pump cover

1шт.

36

A58617

GASKET

- auxiliary drive cover

1шт.

37

A58670

GASKET

- oil cooler water opening

1шт.

38

A58680

OIL PAN GASKET SET

- oil cooler tube to water pump

1шт.

40

A41836

KIT

GASKET KIT - oil pan (includes ref. 41, 42 & 43)

1шт.

41

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A41836)

1шт.

42

A33017

OIL PAN GASKET SET

- oil pan rear corners

2шт.

43

A58608

GASKET

- oil pan drain plug

1шт.

45

M20614

SEAL KIT

SEAL KIT - valve (Set of 4)

2шт.
