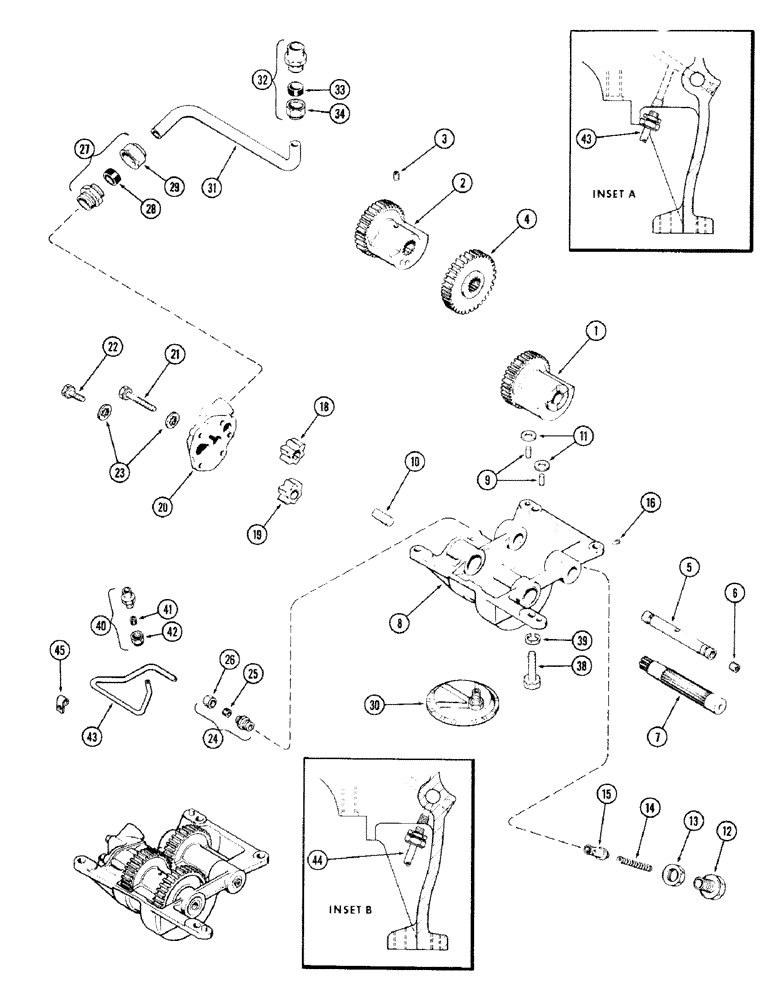

Запчасти Case IH 870 (025A) - 3 GEAR BALANCER & OIL PUMP, (336B) DIESEL ENGINE (02) - ENGINE

NSS

NOT SOLD SEPARAT

BALANCER & PUMP ASSY. - engine (includes ref. 1 - 16 and 18 - 29)

1шт.

1

NSS

NOT SOLD SEPARAT

COUNTERWEIGHT ASSY. - driven

1шт.

2

NSS

NOT SOLD SEPARAT

COUNTERWEIGHT - drive (Splined)

1шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8 x 3/8" N.C. cup pt., sckt. hd.

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR - drive, counterweight

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT - stationary

1шт.

6

221-841

PLUG

- pipe, 1/4" hex sckt. hd.

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT ASSY. - drive, counterweight

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING ASSY. - balancer (includes ref. 9 & 10)

1шт.

9

A8134

PIN

- dowel

2шт.

10

A22543

SHAFT

- stub, oil pump gear

1шт.

11

G49401

SHIM,.005" Thk

Housing to cylinder block .005" Thk

1шт.

11

G49402

SHIM,.010" Thk

Housing to cylinder block .010" Thk

1шт.

12

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

13

A27858

NUT

- adjusting screw

1шт.

14

A61958

VALVE SPRING

SPRING - relief, oil pump (1st used eng. ser. no. 2307771)

1шт.

14

A23598

VALVE SPRING

SPRING - relief, oil pump (Used prior to eng. ser. no. 2307771)

1шт.

15

A22566

PLUNGER

- relief, oil pump

1шт.

16

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16 x 3/8" cone pt., hex sckt. hd.

1шт.

18

A22564

GEAR

- drive, oil pump (Splined)

1шт.

19

A22555

GEAR

ASSY. - oil pump, w/bushing

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - outlet, oil pump

1шт.

21

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

23

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

24

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. 1/4" tube x 1/4" P.T. (includes ref. 25 & 26)

1шт.

25

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - 1/4"

1шт.

27

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - 5/8" tube x 1/2" P.T. (includes ref. 28 & 29)

1шт.

28

222-106

SLEEVE,5/8" Tube

- connector, 5/8"

1шт.

29

222-116

TUBE NUT,1"-18

NUT - 5/8"

1шт.

30

A22590

FILTER SCREEN

SCREEN ASSY. - oil inlet

1шт.

31

A62745

TUBE

- oil pump to filter (Replaces A22595)

1шт.

32

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - 5/8" tube x 1/2" P.T. (includes ref. 33 & 34)

1шт.

33

222-106

SLEEVE,5/8" Tube

- connector, 5/8"

1шт.

34

222-116

TUBE NUT,1"-18

NUT - 5/8"

1шт.

38

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

39

92-8

LOCK WASHER,1/2"

4шт.

40

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY. - 1/4" tube x 1/8" P.T. (includes ref. 41 & 42)

1шт.

41

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

42

87017024

TUBE NUT,1/2"-24

NUT - 1/4"

1шт.

43

A58857

TUBE

- oil gallery to balancer shaft (See inset A)

1шт.

44

A60668

TUBE - oil gallery to balancer shaft (See inset B)

1шт.

45

A20541

CLIP

- oil tube

1шт.
