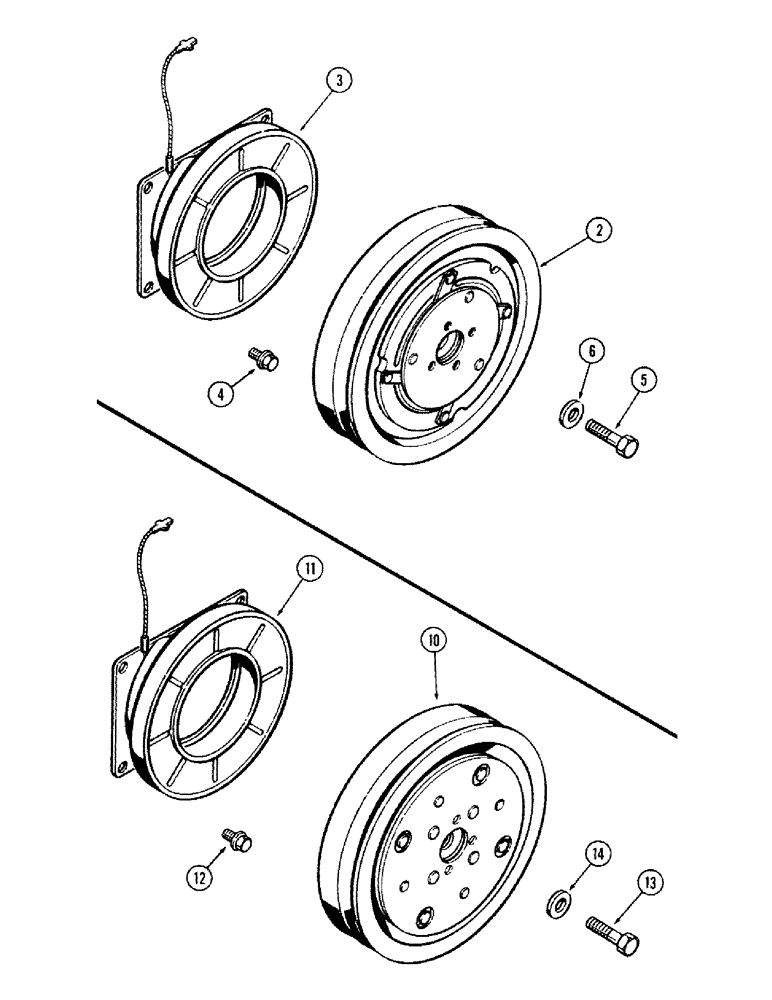

Запчасти Case IH 870 (325G) - COMPRESSOR CLUTCH (09) - CHASSIS/ATTACHMENTS

A66058

CLUTCH

ASSY. - (Warner Electric #I-1436-12) (Replaces A61149) (includes ref. 2 - 6)

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY ASSY. - rotor

1шт.

3

A44568

ELECTRIC CLUTCH

FIELD ASSY. - pulley

1шт.

4

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

5

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.F. hex

1шт.

6

A27343

BUSHING

SPACER - clutch attaching bolt

1шт.

A61149

CLUTCH

ASSY. - (Warner Electric #I-1405-14) (Order A66058) (includes ref. 10 - 14)

1шт.

10

NSS

NOT SOLD SEPARAT

PULLEY ASSY. - rotor

1шт.

11

A42941

COIL

FIELD ASSY. - pulley

1шт.

12

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

13

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.F. hex

1шт.

14

A27343

BUSHING

SPACER - clutch attaching bolt

1шт.
