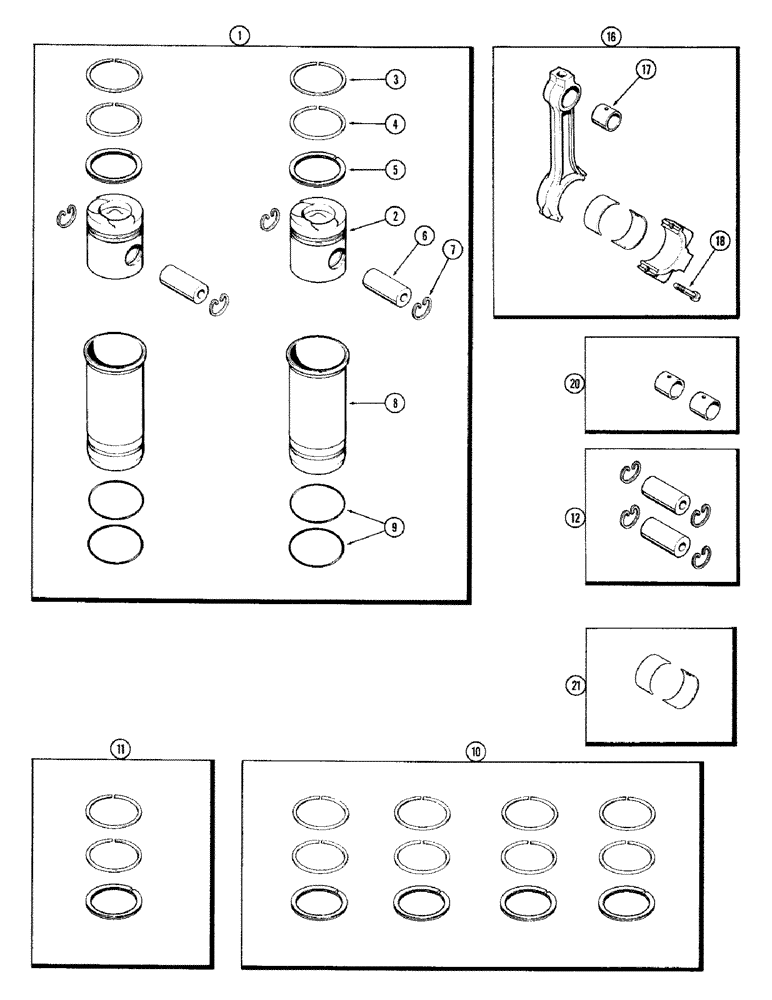

Запчасти Case IH 870 (022) - PISTON ASSEMBLY AND CONNECTING RODS, (336B) DIESEL ENGINE (02) - ENGINE

1

A42751

SPARE PART PISTON & SLEEVE KIT - (Set of 2) (includes ref. 2 - 9)

2шт.

2

A61848

PISTON

PISTON - cylinder, 4-5/8" bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Bottom groove) (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

A58585

RING, SNAP

RING SNAP RING - snap, piston pin retaining

4шт.

8

A58570

SLEEVE

SLEEVE - piston (cylinder liner)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - sleeve packing

4шт.

10

A42750

RING

RING KIT - re-ring (Set of 4) (includes ref. 11)

1шт.

11

A42749

RING

RING KIT - re-ring (Set of 1)

4шт.

12

A41750

PIN

PIN KIT - w/retaining rings (Set of 2)

2шт.

16

A58578

ROD

ROD ASSY. - connecting (includes ref. 17 & 18)

4шт.

16

AR65032

REMAN-CONNECTING ROD

Remanufactured, Connecting Rod

4шт.

16

AC65032

CORE-ROD CONNECTING

Return Part Number Core-Connecting Rod

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

A58581

BOLT

BOLT - connecting rod cap (1/2 x 2-3/8" N.F. spec.)

2шт.

20

A41756

BUSHING

BUSHING KIT - piston pin (Set of 2)

2шт.

21

A41758

BEARING LINER

INSERT ASSY. - connecting rod bearing (Std.)

4шт.

21

A41899

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.002")

4шт.

21

A41900

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.010")

4шт.

21

A41901

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.020")

4шт.

21

A41902

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.030")

4шт.
