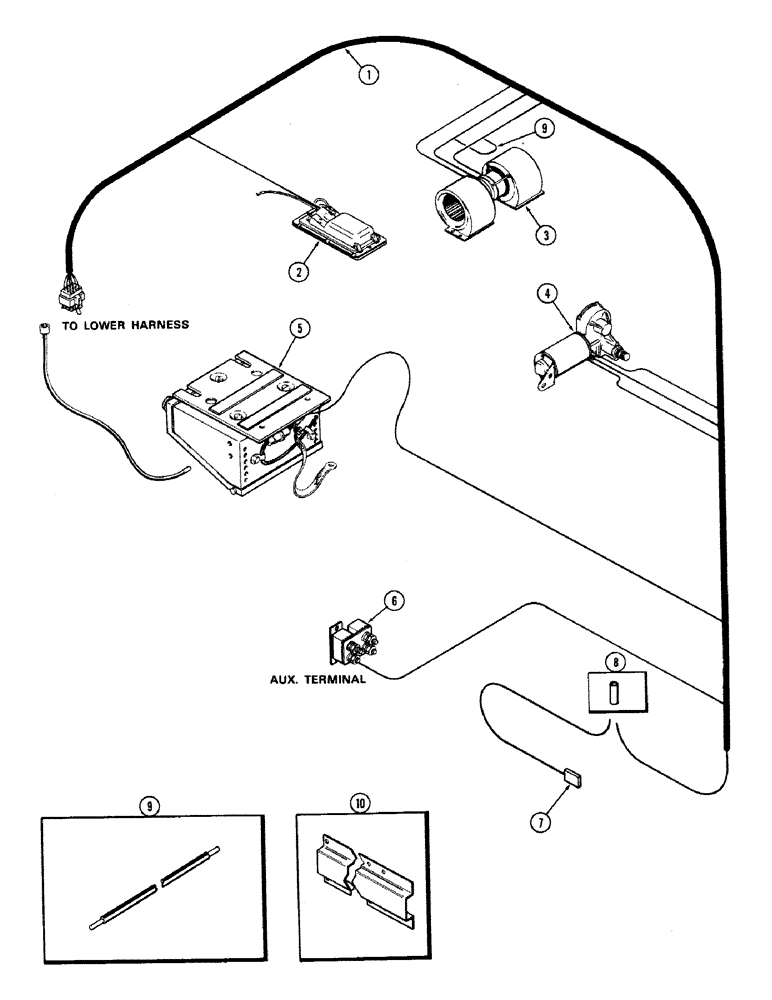

Запчасти Case IH 870 (315A) - CAB, ELECTRICAL EQUIPMENT AND WIRING, PLENUM, HINSON (09) - CHASSIS/ATTACHMENTS

1

A42586

HARNESS - wiring, upper

1шт.

2

A42658

INTERIOR LIGHT

LIGHT - dome (Replaces A42503) (See Figure 302)

1шт.

3

NSS

NOT SOLD SEPARAT

BLOWER - cab air (See Figure 318)

1шт.

4

A42692

MOTOR

- windshield wiper (Replaces A42553) (See Figure 316)

1шт.

5

A62456

RADIO

- (See Figure 320)

1шт.

6

A59704

BREAKER

- circuit

1шт.

7

A42931

ELECTRICAL WIRE

WIRE - harness to high pressure thermostat (See Figure 324)

1шт.

8

A42671

CONNECTOR, ELEC

CONNECTOR - wire, solderless

1шт.

9

A42652

ELECTRICAL WIRE

WIRE - resistor, blower speed adjust

1шт.

10

A62263

CHANNEL - cab electrical conduit

1шт.
