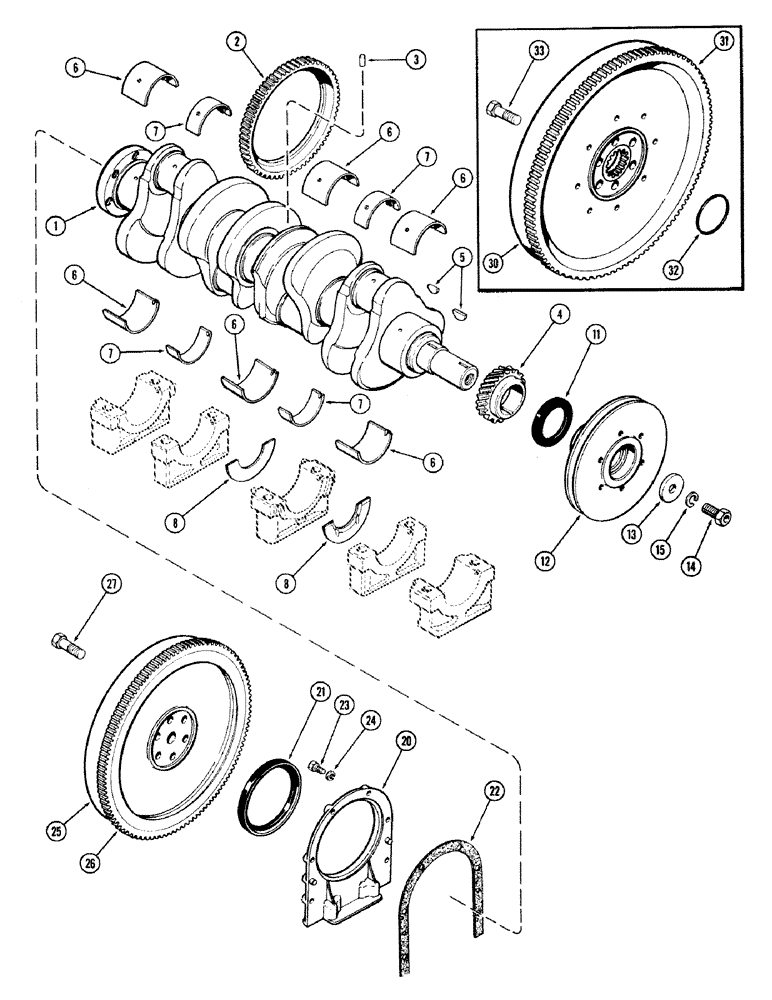

Запчасти Case IH 870 (020) - CRANKSHAFT AND FLYWHEEL, (336B) DIESEL ENGINE (02) - ENGINE

1

A64473

CRANKSHAFT

ASSY. - engine (Replaces A62240 & A61982) (includes ref. 2 - 5)

1шт.

2

A65110

GEAR - drive, 2 gear balancer (86 teeth)

1шт.

P/N A65110 IS A WELD-ON GEAR AND NLF. FOR SERVICE YOU MUST ORDER THE CRANKSHAFT ASSEMBLY (REF S/B 5-74)

1шт.

3

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

4

A66404

GEAR

- crankshaft

1шт.

5

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

6

A41752

LINING

LINER - main bearing, wide (Std.)

3шт.

6

A41907

KIT

LINER - main bearing, wide (-.002")

3шт.

6

A41908

KIT

LINER - main bearing, wide (-.010")

3шт.

6

A41909

BEARING LINER

LINER - main bearing, wide (-.020")

3шт.

6

A41910

JOURNAL

LINER - main bearing, wide (-.030")

3шт.

7

A41759

LINING

LINER - main bearing, narrow (Std.)

2шт.

7

A41903

JOURNAL

LINER - main bearing, narrow (-.002")

2шт.

7

A41904

KIT

LINER - main bearing, narrow (-.010")

2шт.

7

A41905

LINING

LINER - main bearing, narrow (-.020")

2шт.

7

A41906

JOURNAL

LINER - main bearing, narrow (-.030")

2шт.

8

A58565

WASHER

- thrust, crankshaft (Std.)

2шт.

8

A42447

WASHER

- thrust, crankshaft (.006" oversize)

2шт.

11

A62049

OIL SEAL

- crankshaft front, 2-5/8 x 3-5/8 x 29/64"

1шт.

12

A58746

PULLEY - fan drive

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear oil seal

1шт.

21

A62050

OIL SEAL

- crankshaft rear, 4-11/16 x 5-3/4 x 1/8" (Replaces A23085)

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A59034

FLYWHEEL ASSY. - w/o spline (Power shift) (includes ref. 26)

1шт.

26

A58778

GEAR

- ring (139 teeth)

1шт.

27

114-621

BOLT

- 5/8 x 1-3/4" N.C. hex

6шт.

30

A58777

FLYWHEEL ASSY. - w/spline (Mechanical shift) (includes ref. 31)

1шт.

31

A58778

GEAR

- ring (139 teeth)

1шт.

32

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft, 2-3/4 x 3 x 1/8"

1шт.

33

114-622

X

BOLT - 5/8 x 2" N.F. hex

6шт.

See PTO shafts for seal on side of flywheel and bearing inside flywheel. (Fig. 218)

1шт.
