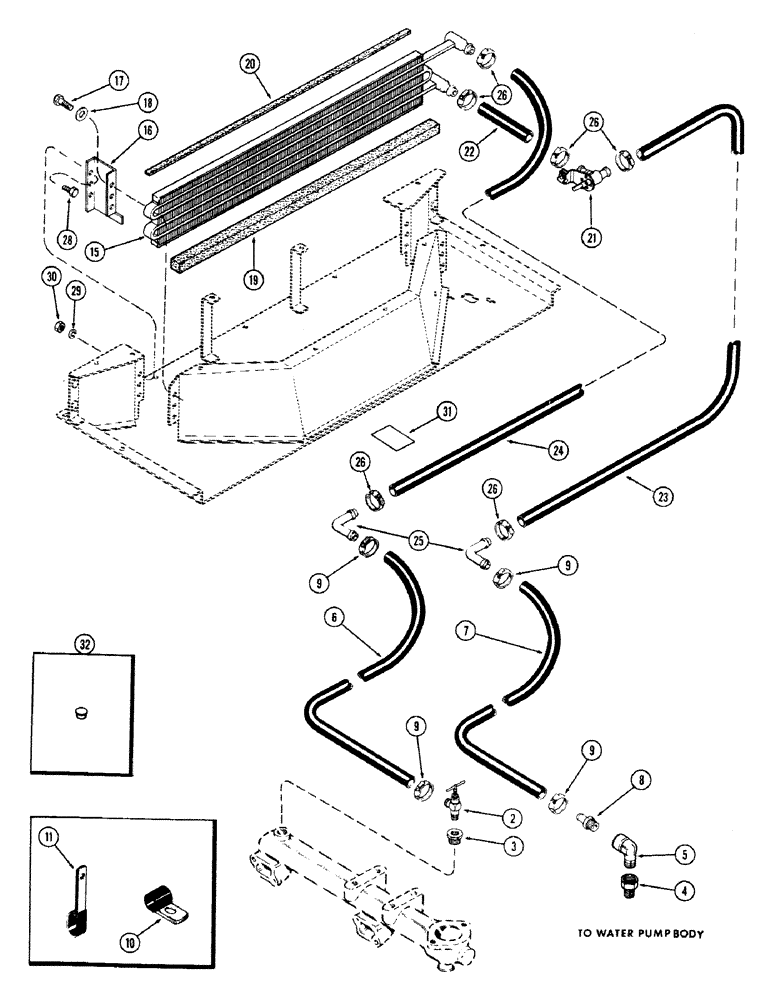

Запчасти Case IH 870 (306) - CAB, PLENUM, WITH HEATER, BETTENDORF (09) - CHASSIS/ATTACHMENTS

A60153

ATTACHMENT - heater (Mach. item) (includes ref. 2 - 11 and 15 - 26)

1шт.

A60125

HEATER - attaching parts (Mach. item) (includes ref. 2 - 11)

1шт.

2

A16764

VALVE

- water manifold

1шт.

3

221-1056

BUSHING

- reducing, Serial Range: 1/2-3/8"

1шт.

4

221-60

TUBE

BUSHING - reducing, 3/4 to 1/2" (At water pump)

1шт.

5

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street (At water pump)

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - heater to water manifold, 43" long (Order A42610)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - heater to water pump, 46" long (Order A42610)

1шт.

8

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - heater hose at water pump

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - heater hose, 9/16 to 1-1/16"

4шт.

10

A60824

CLIP

- hose

1шт.

11

R14668

CLAMP

- hose (2 used w/gas & 1 used w/diesel)

2шт.

15

A42611

CORE

- heater

1шт.

16

A42612

FILLER

- plenum, R.H.

1шт.

16

A42613

FILLER

- plenum, L.H.

1шт.

17

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

18

195-103

WASHER,5/16"

- 3/8 x 7/8 x 1/32"

3шт.

19

A42912

FOAM -, Serial Range: core-plenum

1шт.

20

A42905

FOAM

- core top, 1/8 x 1/2 x 50' roll

1шт.

21

A42609

VALVE

- heater

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 7-1/2" long (Order A42610)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - heater, 72" long (Order A42610)

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE - heater, 78" long (Order A42610)

1шт.

25

A60823

ELBOW

- hose

2шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

6шт.

A42614

CABLE

- heater control (See Figures 310 - 313A)

1шт.

NSS

NOT SOLD SEPARAT

DECAL - instrument panel

1шт.

A42610

LARGE HOSE

HOSE - heater, 5/8 x 1 x 50' roll

1шт.

28

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- 1/4 x 1-1/4" N.C. hex

4шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

30

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

31

NSS

NOT SOLD SEPARAT

TAPE - drip pan holes, 2" wide x 3" long

2шт.

32

353-408

PLUG,Dome, .750" hole, Nylon

- post holes, 3/4"

2шт.
