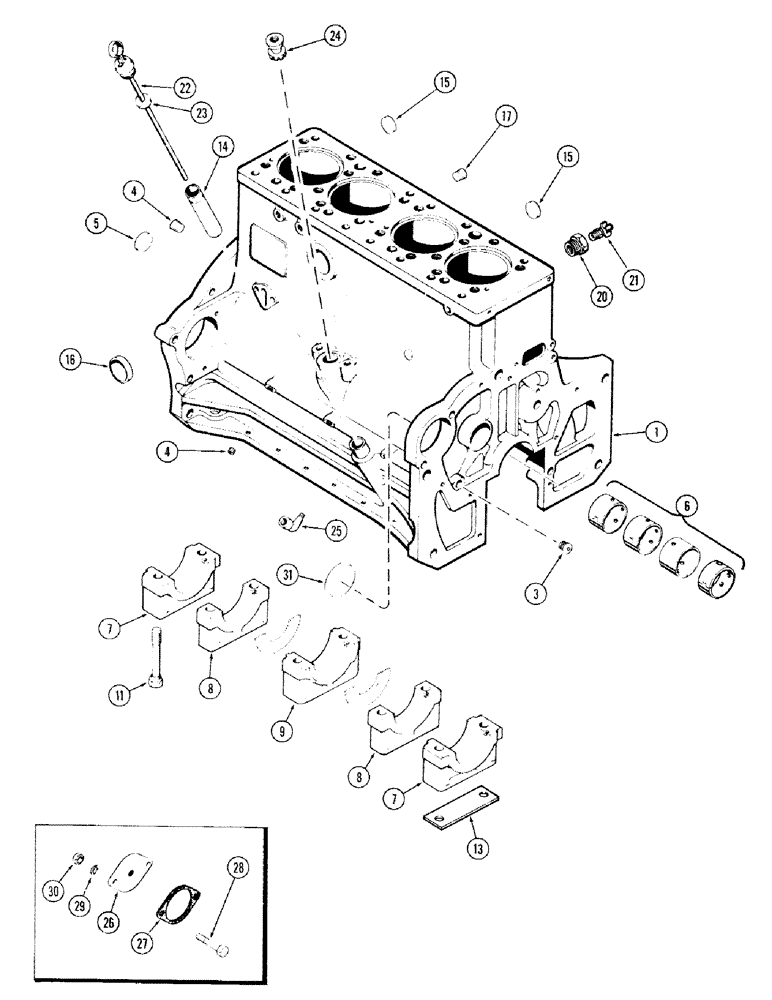

Запчасти Case IH 870 (019A) - CYLINDER BLOCK, (336B) DIESEL ENGINE, W/3 GEAR BALANCER (02) - ENGINE

A43020

SKELETON ENGINE

BLOCK ASSY. - short (Incl. stripped block, pistons, conn. rods & brgs., crankshaft & brgs., camshaft & bushings, timing gears & push rod lifters) (Casting #A58505) (Replaces #41999)

1шт.

1

A42004

BLOCK

ASSY. stripped (Casting #58505)

1шт.

3

221-1843

PLUG

- 3/8" P.T., hex sckt. hd.

3шт.

4

221-41

PLUG

- 1/8" P.T. sltd. hdless.

2шт.

5

A24361

PLUG

- camshaft hole, 2-3/8" cup type

1шт.

6

A23577

KIT

BUSHING KIT - camshaft

1шт.

7

A58562

CAP

- main bearing, wide

2шт.

8

A58563

CAP

- main bearing, narrow

2шт.

9

A58564

CAP

- main bearing, thrust

1шт.

11

A58566

STEP BOLT

BOLT - bearing cap, 5/8 x 4-1/2" N.C. spec.

10шт.

13

A58859

SHIM,.005" Thk

Brg. cap to oil pump .005" Thk

1шт.

14

A34540

TUBE

SOCKET - oil filler

1шт.

15

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8" cup type

2шт.

16

A58569

PLUG,Cup, 2", Stainless

- 2" cup type

1шт.

17

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, 3/4" hex sckt. hd., turbo drain hole

1шт.

20

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

- reducer, 3/4 x 1/4"

1шт.

21

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

22

A34541

DIPSTICK

- oil level

1шт.

23

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 3/4 x 1 x 1/8"

2шт.

24

A34266

DRIVE

ASSY. tachometer

1шт.

25

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 1/8 x 1/8 x 90 degrees

1шт.

26

A58732

COVER

- pump mounting (Order A58750)

1шт.

27

A58617

GASKET

- pump mounting cover

1шт.

28

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

31

A58750

PLUG,Cup, 3 1/4", Stainless

- pump opening cover, 3-17/64" dia. (Replaces ref. 26 - 30)

1шт.
