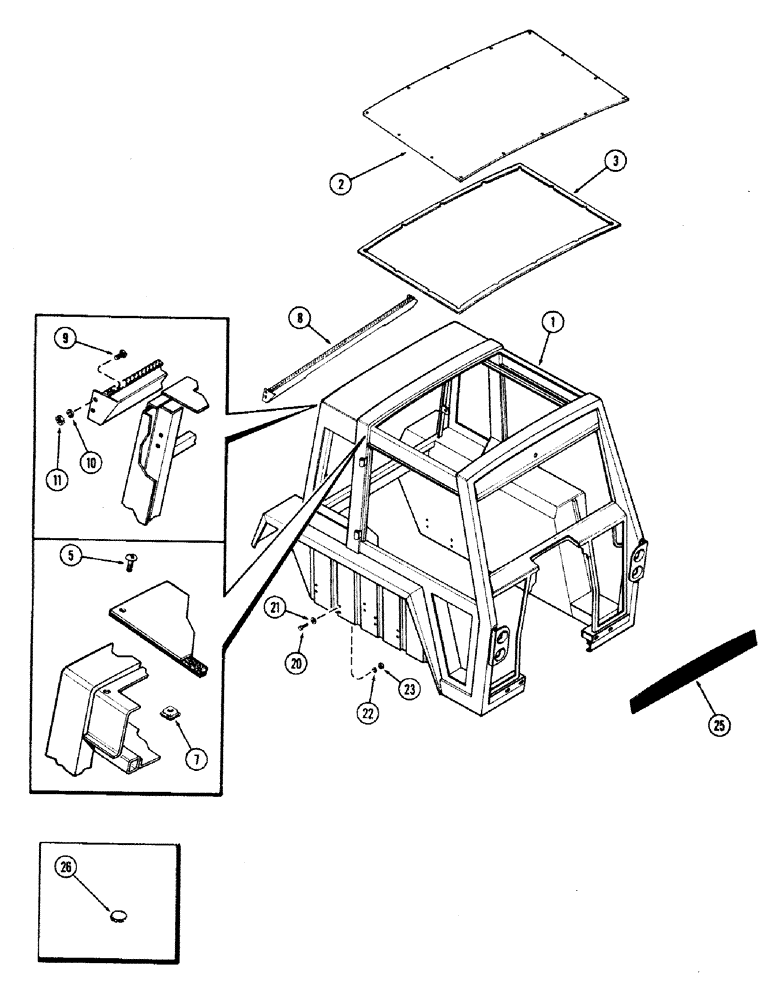

Запчасти Case IH 870 (291C) - CAB, UPPER SHEET METAL, HINSON (09) - CHASSIS/ATTACHMENTS

A62550

CAB - w/o heater or air conditioner (Mach. item) (Used trac. ser. nos., Serial Range: 8670526-8676652)

1шт.

A60800

CAB - w/o heater or air conditioner (Mach. item) (Used prior to trac. ser. no. 8670526)

1шт.

A62551

CAB - w/air conditioner (Mach. item) (Used trac. ser. nos., Serial Range: 8670526-8676737)

1шт.

A60801

CAB - w/air conditioner (Mach. item) (Used prior to trac. ser. no. 8670526)

1шт.

A62552

CAB - w/heater (Mach. item) (Used trac. ser. nos., Serial Range: 8670526-8676655)

1шт.

A60802

CAB - w/heater (Mach. item) (Used prior to trac. ser. no. 8670526)

1шт.

A62553

CAB - w/heater & air conditioner (Mach. item) (Used trac. ser. nos., Serial Range: 8670526-8676605)

1шт.

A60803

CAB - w/heater & air conditioner (Mach. item) (Used prior to trac. ser. no. 8670526)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

2

A42684

ROOF

ASSY. - cab (Replaces A42555)

1шт.

3

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - roof, 1/4 x 3/8" (Order A42676)

1шт.

A42676

SEAL

WEATHERSTRIP - seal (25' roll) (Replaces A42549)

1шт.

5

163-4

SCREW,Hex, #10 - 32 x 5/8"

- 1/4 x 1" N.C. hex washer hd. mach.

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- 1/4" "J" type tinnerman

18шт.

8

NSS

NOT SOLD SEPARAT

AIR INTAKE - cab

1шт.

9

175-403

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. sltd. truss hd.

4шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

20

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8 x 1-3/4" N.C. hex

10шт.

20

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- 3/8 x 1" N.C. hex

6шт.

21

195-325

WASHER - 3/8 x 1-1/8 x 1/16"

16шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

14шт.

25

NSS

NOT SOLD SEPARAT

DECAL - front panel decorative

1шт.

26

205-24

X

PLUG - button, 17/32" dia.

2шт.
