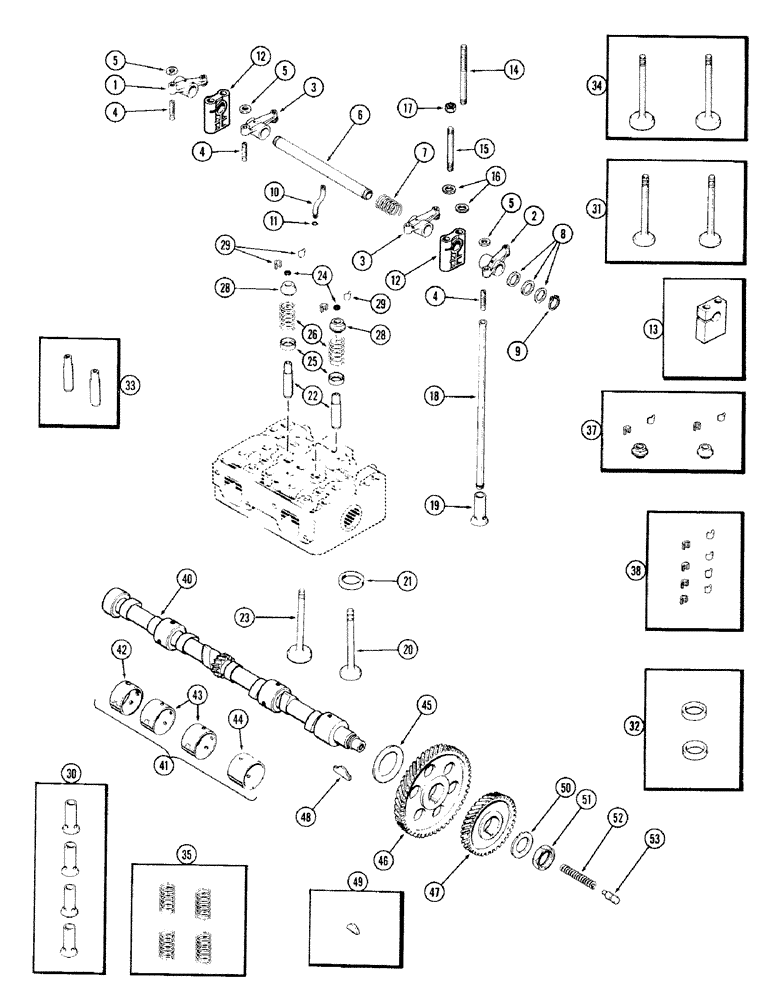

Запчасти Case IH 870 (016) - VALVE MECHANISM AND CAMSHAFT, (336B) DIESEL ENGINE (02) - ENGINE

1

A58655

ARM

- rocker, exhaust valve (1st & 3rd cylinders)

2шт.

2

A58656

ARM

- rocker, exhaust valve (2nd & 4th cylinders)

2шт.

3

A58654

ARM

- rocker, intake valve

4шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

8шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex, jam

8шт.

6

A57532

SHAFT

ASSY. - rocker arm shaft

2шт.

7

A27877

SPRING

- rocker arm shaft

2шт.

8

A27878

WASHER

- rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

RING, snap, , rocker arm shaft #87, Ext

4шт.

10

A58657

TUBE

- rocker arm shaft oil

2шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft oil tube

2шт.

12

A61128

BRACKET

- rocker arm shaft (1st used engine serial no. 2307267)

4шт.

13

A27881

BRACKET

- rocker arm shaft (Used prior to engine serial no. 2307267)

4шт.

14

A60885

STUD

- rocker arm support, 7/16" N.C. x 5-7/8"

4шт.

15

A58659

STUD

- rocker arm support, 7/16" N.C. x 4-5/16"

4шт.

16

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16"

8шт.

17

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

8шт.

18

A58596

ROD

ASSY. - push

8шт.

19

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 30)

8шт.

20

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 31)

4шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 32)

4шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - intake & exhaust valves (Order ref. 33)

8шт.

23

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 34)

4шт.

24

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

8шт.

25

A58623

SEAT

- intake & exhaust valve springs

8шт.

26

NSS

NOT SOLD SEPARAT

SPRING - intake & exhaust valves (Order ref. 35)

8шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - intake valve springs (Order ref. 37)

8шт.

29

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 38)

16шт.

30

A21653

KIT

LIFTER KIT - push rod (Set of 4) (Std.)

2шт.

30

A22463

KIT

LIFTER KIT - push rod (Set of 4) (.010" oversize)

2шт.

31

A41753

VALVE

KIT - exhaust (Set of 2)

2шт.

32

A41757

INSERT

KIT - exhaust valve (Set of 2)

2шт.

33

A41781

GUIDE

KIT - intake & exhaust valves (Set of 2)

4шт.

34

A41754

VALVE

KIT - intake (Set of 2)

2шт.

35

A42895

SPRING

KIT - intake & exhaust valves (Set of 4)

2шт.

37

A21657

LOCK

RETAINER KIT - intake valve (Set of 2 rets. & 4 locks)

4шт.

38

A40352

LOCK

KIT - valve spring (Set of 8)

2шт.

40

A62733

SHAFT

CAMSHAFT - (Replaces A58724)

1шт.

40

A58724

CAM

SHAFT - engine (Order A62733 & 126-227)

1шт.

41

A23577

KIT

BUSHING KIT - camshaft (Set of 4) (includes ref. 42, 43 & 44)

1шт.

42

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-5/32" wide)

1шт.

43

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1-7/16" wide)

2шт.

44

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-21/32" wide)

1шт.

45

A21017

WASHER

- camshaft thrust

1шт.

46

A58592

GEAR

- camshaft

1шт.

47

A58593

GEAR

- idler drive

1шт.

48

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - Hi-Pro, 5/16 x 1-5/16" (Used w/A62733)

1шт.

49

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

Used w/A58724 #C, 5/16" x 1 1/8"

1шт.

50

A58594

LOCK WASHER

- lock, camshaft nut

1шт.

51

A58595

NUT

- camshaft

1шт.

52

P0027853A

LARGE PIN

- plunger, camshaft thrust

1шт.

53

A27852

PLUNGER

- thrust, camshaft

1шт.
