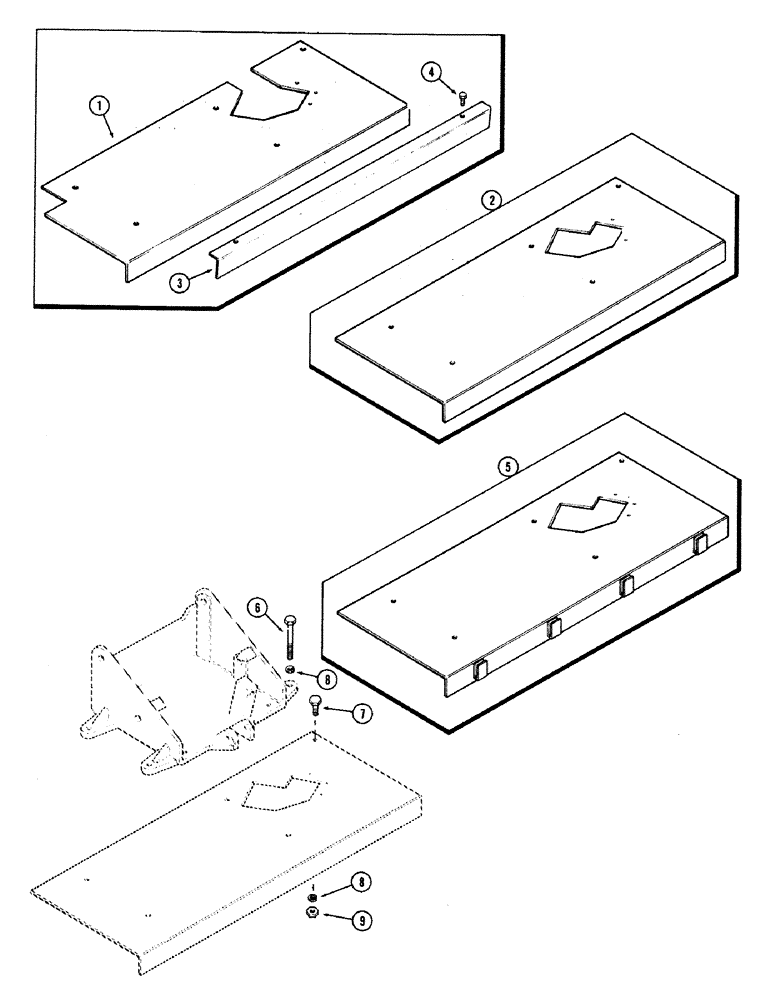

Запчасти Case IH 870 (283A) - SEAT SUSPENSION PLATES (09) - CHASSIS/ATTACHMENTS

1

A62672

PLATE

- seat support (w/ or w/o cab) (1st used trac. ser. no. 8675001)

1шт.

2

A60348

PLATE

- seat support (w/o cab) (Used prior to trac. ser. no. 8675001) (Order A62672)

1шт.

3

A62461

FLOOR

ANGLE - mounting, floor mat (w/cab) (1st used trac. ser. no. 8675001)

1шт.

4

187-1060

SELF-TAP SCREW,Sltd Hex Hd, 1/4" x 3/4"

SCREW - 1/4-14 x 3/4" self-drill & tapping

2шт.

5

A60875

PLATE

- seat support (w/cab) (Used prior to trac. ser. no. 8675001) (Order A62672, A62461 & 2-187-1060)

1шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

4шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

5шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.
