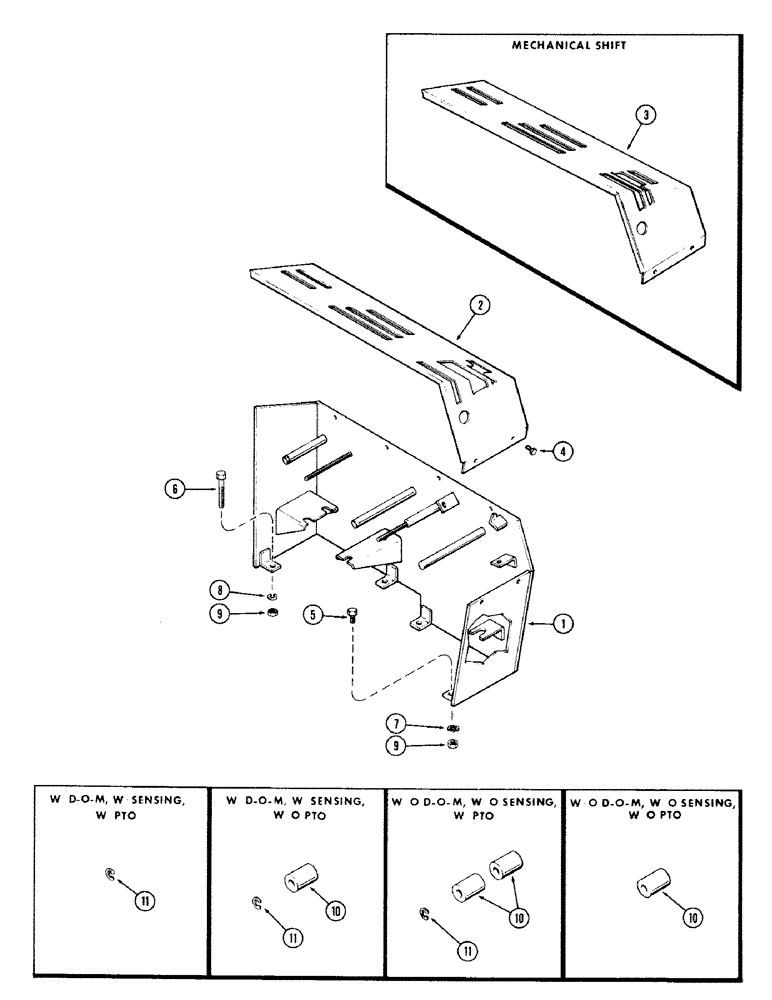

Запчасти Case IH 870 (280) - CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS

1

A62422

CONSOLE ASSY. - control (1st used trac. ser. no. 8670148)

1шт.

1

A60657

CONSOLE ASSY. - control (Used prior to trac. ser. no. 8670148)

1шт.

2

A59786

COVER

- control console, power shift

1шт.

3

A59787

COVER

- control console, mechanical shift

1шт.

4

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

5

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

6

13-646

BOLT,Hex, 3/8" - 16 x 2-7/8", Gr 5

Hex, 3/8"-16 x 2 7/8, G5

1шт.

7

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

3шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

10

A59994

SPACER

- D-O-M sensing & PTO (See insets)

1шт.

11

A27785

CIRCLIP,#62, .480" Dia, E-Type

RING, retaining, (see insets) #62, .480" Dia, E-Type

1шт.
