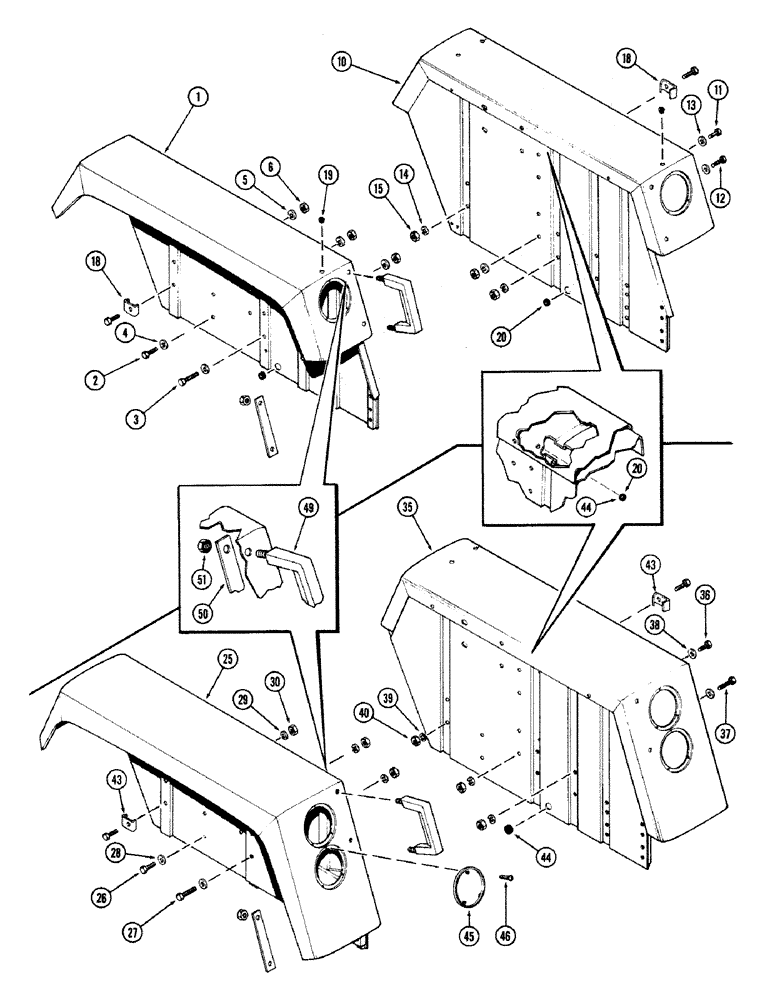

Запчасти Case IH 870 (278) - FENDERS, 12" FENDER (09) - CHASSIS/ATTACHMENTS

1

A62269

GASKET

FENDER ASSY. - 12" R.H. (Replaces A60730)

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

R.H. fender Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

R.H. fender Hex, 3/8"-16 x 1 3/4", G5

5шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", R.H. fender

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , RH fender 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , R.H. fender 3/8"-16, G5

6шт.

10

A62297

FENDER

ASSY. - 12" L.H. (Replaces A60731)

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

L.H. fender Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

L.H. fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

LH fender Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- 3/4 x 1-3/4" N.C. hex, L.H. fender

3шт.

13

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", L.H. fender

6шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , LH fender 3/8"

6шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , L.H. fender 3/8"-16, G5

4шт.

18

A59318

BRACKET

- fender side sheet mtg. R.H. & L.H.

8шт.

19

353-405

PLUG,Dome, .562" hole, Nylon

- button, 9/16" nylon

2шт.

20

A59722

GROMMET

- wire harness

2шт.

25

A62300

FENDER

ASSY. - 15", R.H. (Replaces A60750)

1шт.

26

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

R.H. fender, 15" Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

27

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

R.H. fender, 15" Hex, 3/8"-16 x 1 3/4", G5

1шт.

27

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

R.H. fender, 15" Hex, 3/8"-16 x 2", G5

4шт.

28

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32" R.H. fender, 15"

6шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , RH fender, 15" 3/8"

6шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , R.H. fender, 15" 3/8"-16, G5

4шт.

35

A62301

FENDER

ASSY. - 15", L.H. (Replaces A60751)

1шт.

36

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

L.H. fender, 15" Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

37

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

L.H. fender, 15" Hex, 3/8"-16 x 1 3/4", G5

3шт.

37

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

L.H. fender, 15" Hex, 3/8"-16 x 2", G5

2шт.

38

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", L.H. fender, 15"

6шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , LH fender, 15" 3/8"

6шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , L.H. fender, 15" 3/8"-16, G5

4шт.

43

A59318

BRACKET

- fender side sheet mounting, R.H. & L.H., 15"

4шт.

44

A59722

GROMMET

- wire harness, 15" fender

2шт.

45

A59330

COVER

- cultivator light opening, 15" fender

1шт.

46

187-1050

SCREW

- #10 x 1/2" N.C. type "T" tap, 15" fender

3шт.

49

A60530

HANDLE

- R.H. & L.H.

2шт.

50

A59338

PLATE

- handle mtg.

1шт.

51

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex, lock, handle

4шт.
