(268) - SIDE PANELS

Запчасти Case IH 870 (268) - SIDE PANELS (09) - CHASSIS/ATTACHMENTS

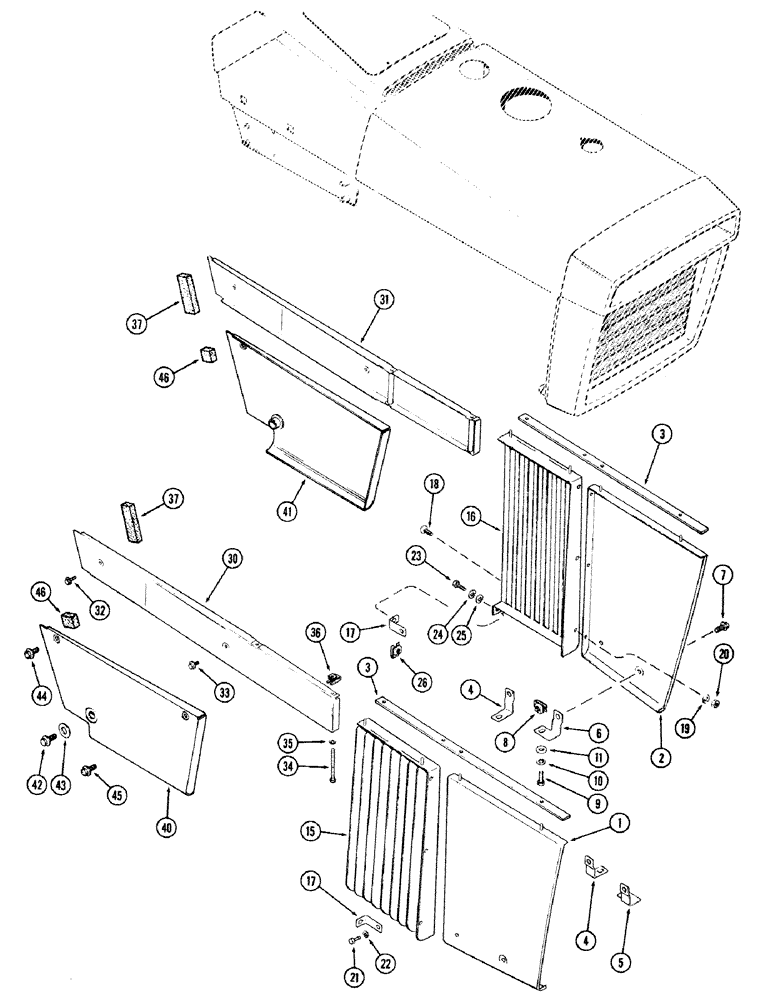

Схема запчастей Case IH 870 - (268) - SIDE PANELS (09) - CHASSIS/ATTACHMENTS
19
10
24
37
16
5
36
23
33
6
3
17
20
2
7
46
17
3
11
32
42
30
46
18
22
25
1
43
44
45
8
26
40
4
4
9
37
15
34
41
35
31
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A59128

PANEL

ASSY. - front side, R.H.

1шт.

2

A59365

PANEL

ASSY. - front side, L.H.

1шт.

3

A59239

SPACER

- hood & side sheets

2шт.

4

A59364

BRACKET

- R.H. & L.H. side sheet mtg.

2шт.

5

A59278

BRACKET

- R.H. side sheet mtg.

1шт.

6

A59279

BRACKET - L.H. side sheet mtg.

1шт.

7

121-606

SCREW - 5/16" self lock

4шт.

8

131-616

NUT,Ret, J, 5/16"-18

- 5/16" tinnerman

4шт.

9

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

15

A59440

VENTILATOR

LOUVER ASSY. - right hand (8 slats) (1st used trac. ser. no. 8665648)

1шт.

15

A59442

VENTILATOR

LOUVER ASSY. - right hand (10 slat) (Used prior to trac. ser. no. 8665648)

1шт.

16

A59441

GUARD

LOUVER ASSY. - left hand (8 slat) (1st used trac. ser. no. 8665648)

1шт.

16

A59443

VENTILATOR

LOUVER ASSY. - left hand (10 slat) (Used prior to trac. ser. no. 8665648)

1шт.

17

A61043

BRACKET - louver mtg., louvers

2шт.

18

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" truss hd., louvers

6шт.

19

92-5

LOCK WASHER,5/16"

louvers 5/16"

6шт.

20

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex, louvers

6шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Louvers Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

92-5

LOCK WASHER,5/16"

louvers 5/16"

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Louvers Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

louvers 3/8"

2шт.

25

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", louvers

2шт.

26

131-616

NUT,Ret, J, 5/16"-18

- 5/16" tinnerman, louvers

2шт.

30

A60942

PANEL ASSY. - decal, R.H.

1шт.

31

A60943

PANEL

ASSY. - decal, L.H.

1шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Decal panel Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

33

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

Decal panel Hex Flg, 5/16"-18 x 1", Serr

2шт.

34

113-20

BOLT,Hex, 1/4" - 20 x 4-3/4", Gr 5

- 1/4 x 4-3/4" N.C. hex, decal panel

4шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Decal panel 1/4"

4шт.

36

131-260

RETAINER - tinnerman, "J" type, decal panel

4шт.

37

A61879

FOAM

- decal panel seal

2шт.

40

A60948

PANEL

ASSY. - rear side, R.H.

1шт.

41

A60949

PANEL ASSY. - rear side, L.H.

1шт.

42

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

Rear side panel Hex Flg, 5/16"-18 x 1 1/4", Serr

2шт.

43

195-524

WASHER,5/16"

- 13/32 x 13/16 x 1/16", rear side panel

2шт.

44

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Rear side panel Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

45

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

Rear side panel Hex Flg, 5/16"-18 x 1", Serr

2шт.

46

A61878

FOAM

- rear side panel sealing

2шт.
