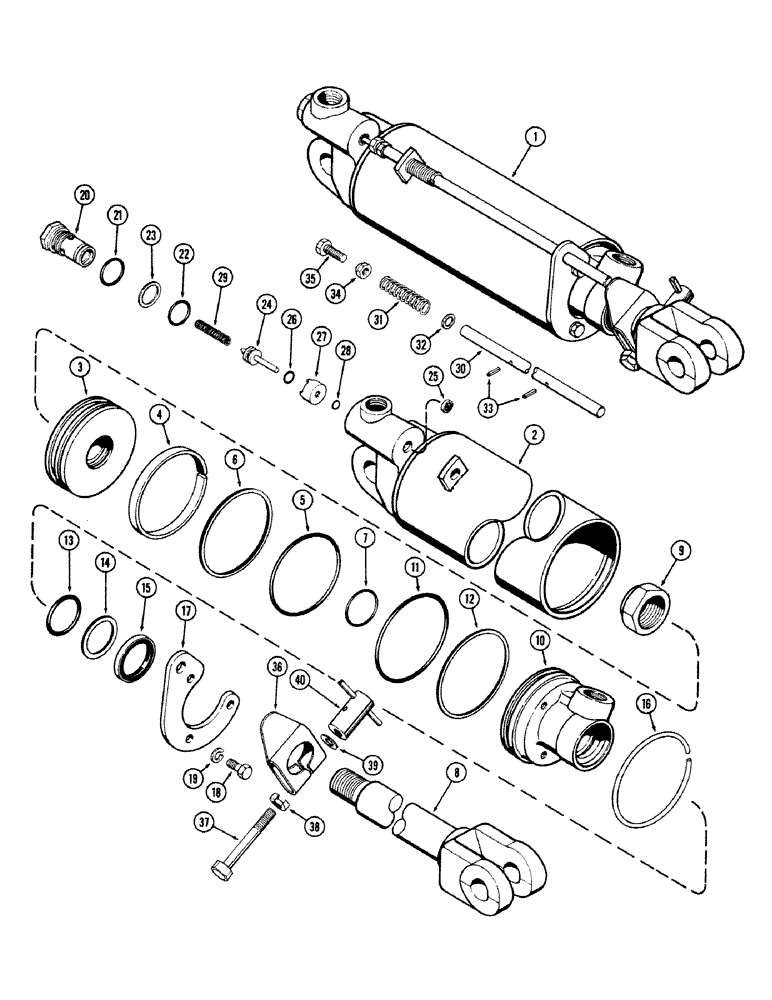

Запчасти Case IH 870 (263A) - 3 1/4" X 8" REMOTE HYDRAULIC CYLINDER, WITH HYDRAULIC LIMIT STOP (09) - CHASSIS/ATTACHMENTS

1

A34922

CYLINDER

ASSY. - hydraulic (Order G32083) (includes ref. 2 - 40)

1шт.

2

A41348

BODY - cylinder

1шт.

3

A41177

PISTON - cylinder

1шт.

4

A41191

RING

- outer (3-1/4" I.D. x 5/32" teflon) (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

5

A41185

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - outer (2-7/8 x 3-1/8 x 1/8") (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

6

A41183

RING - wear, piston (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

7

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

"O" RING - inner (1-1/4 x 1-1/2 x 1/8") (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

8

A41179

ROD - piston

1шт.

9

A41189

LOCK NUT

NUT - piston ret. (1" - 14 lock nut)

1шт.

10

A41180

BEARING

- cylinder

1шт.

11

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - bearing, outer (3 x 3-1/4 x 1/8") (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

12

A41188

RING

- "O" ring back-up (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

13

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - inner (1-1/4 x 1-1/2 x 1/8") (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

14

T22277

OIL SEAL

RING - "O" ring back-up (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

15

A41176

X

SEAL - oil, bearing (1-1/4 x 1-1/2 x 1/4") (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

16

A41186

RING, LOCKING

RING - lock, bearing (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

17

A41182

PLATE - cylinder end

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

End plate Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

A41351

PLUG - cylinder end & valve plunger body

1шт.

21

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

"O" RING - plug (7/8 x 1-1/16 x 3/32") (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - plug (11/16 x 7/8 x 3/32") (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

23

A41346

RING

- "O" ring back-up (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

24

A41430

PLUNGER

ASSY. - valve

1шт.

25

A41175

WIPER

- valve plunger (3/16 x 1/2 x 1/8") (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

26

A41147

X

"O" RING - plunger (3/16 x 3/8 x 3/32") (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

27

A41429

SPACER

- valve

1шт.

28

A41160

INSERT

"O" RING - valve (23/64 x 9/16 x 3/32") (See item 41)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

29

A41163

SPRING

- valve poppet

1шт.

30

A41153

ROD

- push

1шт.

31

A41154

SPRING

- push rod

1шт.

32

A41155

WASHER

- push rod spring seat

1шт.

33

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, , push rod 5/32" x 5/8", Slotted

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - push rod (5/16 - 18 lock nut)

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Stop adj. Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

36

A41349

STOP

- cylinder limit clamp

1шт.

37

114-115

BOLT,Hex, 5/16" - 24 x 2-3/4", Gr 5

Stop clamp Hex, 5/16"-24 x 2 3/4", G5

1шт.

38

A41352

LOCK WASHER

LOCK - stop clamp bolt

1шт.

39

A41353

WASHER

- clamp bolt (1/2 x 7/8 x 1/16")

1шт.

40

A41615

LOCK NUT

- clamp bolt (5/16" N.F.)

1шт.

A41347

SEAL,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

KIT - cylinder, (includes ref. 4 thru 7, 11 thru 16, 21, 22, 23, 25, 26 and 28)

1шт.
