Запчасти Case IH 870 (013A) - ETHER STARTING KIT, (336B) DIESEL ENGINE (02) - ENGINE

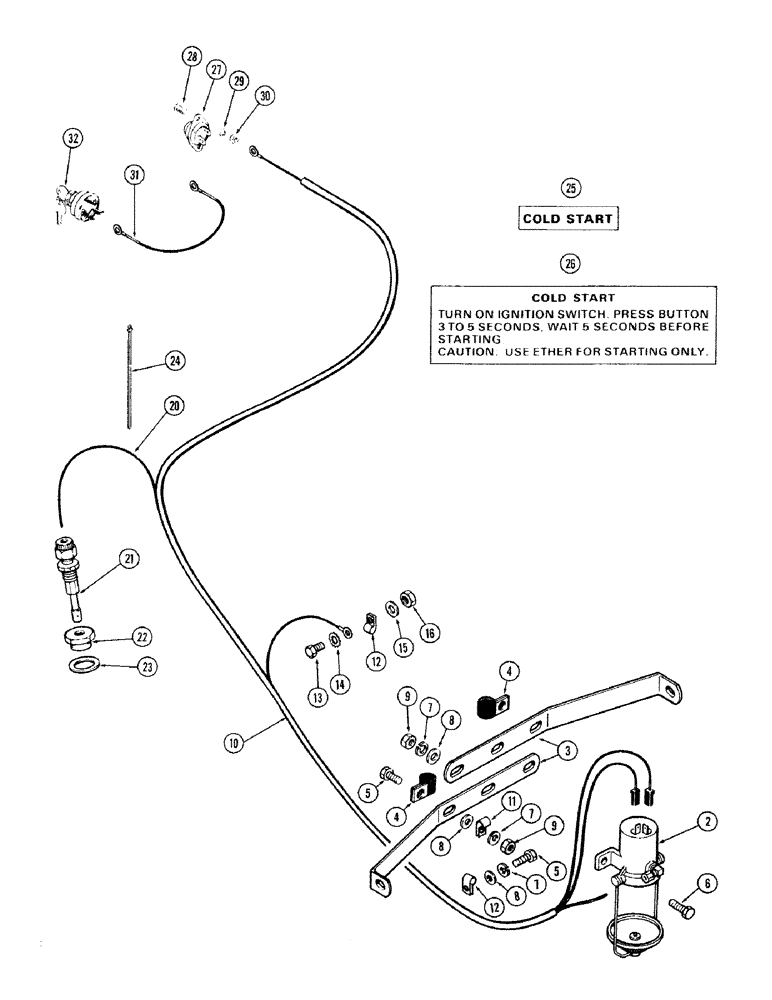

Схема запчастей Case IH 870 - (013A) - ETHER STARTING KIT, (336B) DIESEL ENGINE (02) - ENGINE
22
13
29
7
9
16
8
28
10
6
11
20
27
8
31
4
8
21
15
12
5
26
14
7
7
24
2
30
4
3
9
32
23
12
5
25

Артикул

Название

Примечание

Количество

A62440

KIT

- ether starting (includes ref. 2 - 16 and 20 - 31)

1шт.

2

A62441

SOLENOID

- ether injector, w/fitting

1шт.

3

A62442

BRACKET - solenoid mounting

2шт.

4

NLS

NO LONGER SERVICED

CLIP - steering, Serial Range: tube-bracket

2шт.

5

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

6

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

8

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

6шт.

9

9635082

NUT,5/16" - 18, Gr 5

4шт.

10

A62443

HARNESS

- wire, Serial Range: solenoid-switch

1шт.

11

A7922

CLIP

- harness

2шт.

12

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - harness

2шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

14

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int./ext.

1шт.

15

195-19

WASHER

- 5/16 x 3/4 x 1/16"

1шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

20

A62444

TUBE

-, Serial Range: solenoid-injector

1шт.

21

A62446

NOZZLE

INJECTOR - nozzle, w/1/8" tube fitting

1шт.

22

L10283

PLUG

ADAPTER - nozzle to intake manifold

1шт.

23

A20916

MANIFOLD GASKET

WASHER -, Serial Range: adapter-manifold

1шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tube & harness

7шт.

25

321-1752

DECAL

- "Cold Start"

1шт.

26

321-1841

DECAL

- "Cold Start - Instructions"

1шт.

27

A36948

SWITCH

- ether solenoid

1шт.

28

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" N.C. Phillips hd. mach.

2шт.

29

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

30

129-17

NUT,Hex, #10 - 24

NUT - #10 N.C. hex

2шт.

31

A62713

ELECTRICAL WIRE

WIRE - solenoid switch to start switch

1шт.

32

A59693

SWITCH

- starting (Not included in kit)

1шт.

Выбрано товаров: 29
