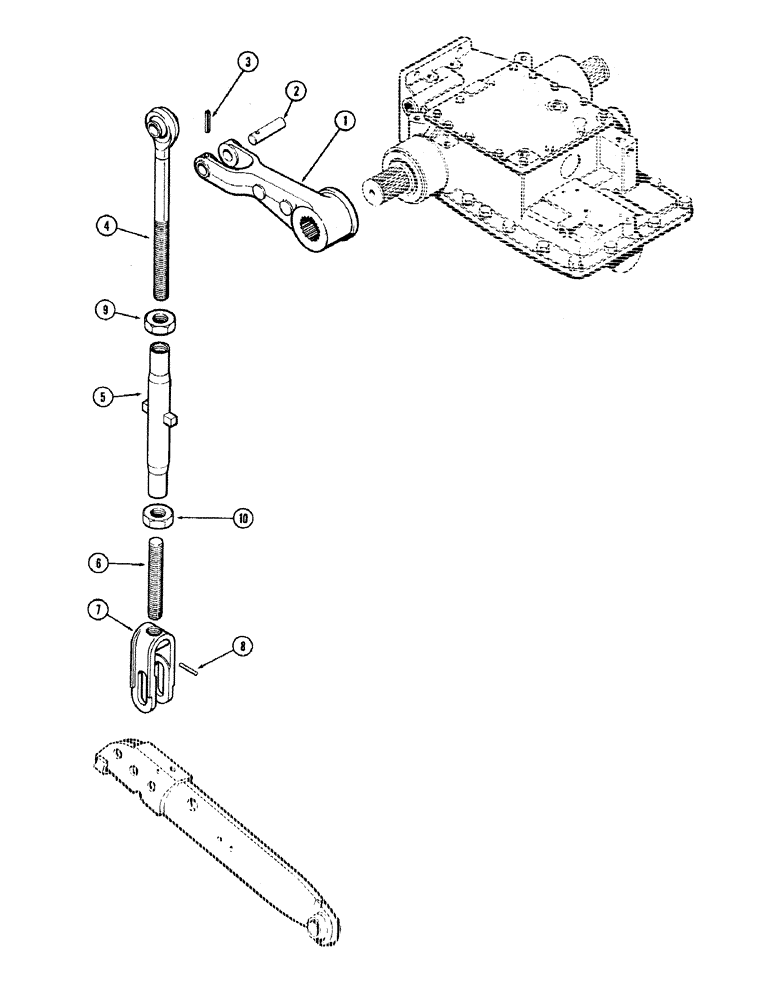

Запчасти Case IH 870 (254) - THREE POINT HITCH, LIFT LINKS (09) - CHASSIS/ATTACHMENTS

1

A57494

ARM

- rockshaft, lift links (R.H. & L.H.)

2шт.

2

A32268

PIN

- lift arm to lift link (Upper)

2шт.

3

135-361

GROOVED PIN,1/4" x 2", Type F

PIN - groove (1/4 x 2") (Type 3) (Replaces 138-2047)

2шт.

4

A57908

LINK

- lift, upper

2шт.

5

A57491

TURNBUCKLE

- lift link adjustment (includes ref. 6, 7 & 8)

2шт.

NSS

NOT SOLD SEPARAT

LINK ASSY. - lower lift (Not illust.)

2шт.

6

A57496

LINK

- lower lift

1шт.

7

A62247

YOKE

- lower lift link (Replaces A32251)

1шт.

8

138-158

LOCK PIN,5/16" x 1 5/8", Slotted

PIN, 5/16" x 1-5/8", slotted

1шт.

9

129-371

NUT,Jam, 1 1/8"-12, G5, LH

- hex (1-1/8" N.F. jam) (L.H. thread)

2шт.

10

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- hex (1-1/8" N.F. jam) (R.H. thread)

2шт.
