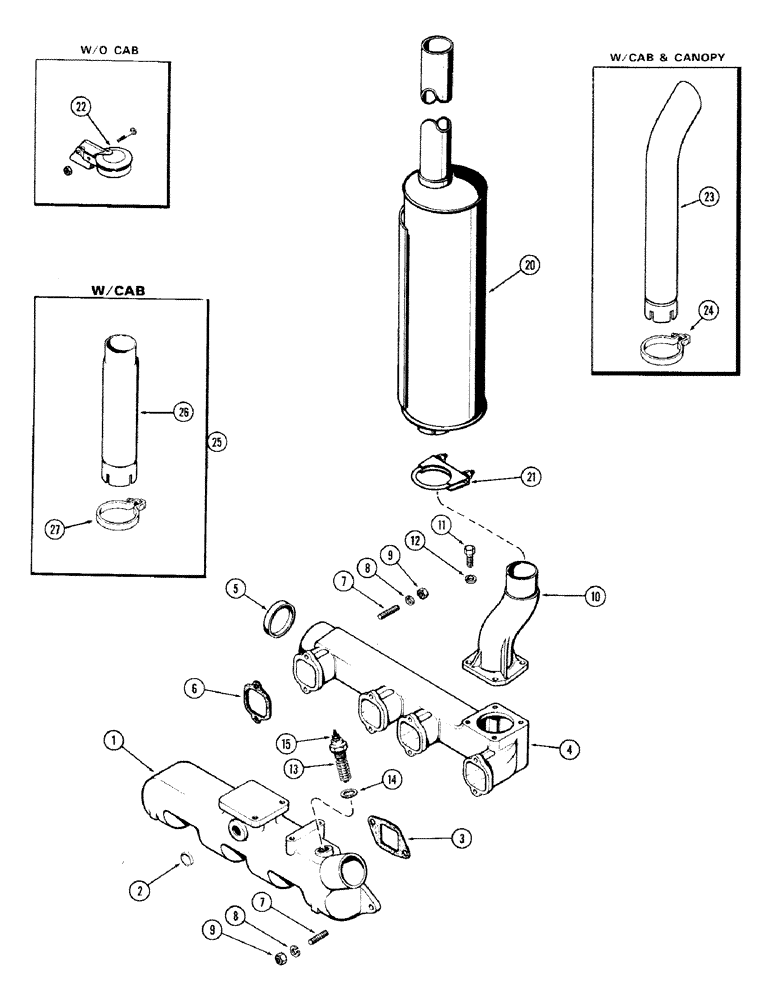

Запчасти Case IH 870 (012) - MANIFOLD AND MUFFLER, (336B) DIESEL ENGINE (02) - ENGINE

1

A61003

TUBE

MANIFOLD - intake (includes ref. 2)

1шт.

2

41-1020

PLUG,Cup, 1 1/4"

- intake manifold

1шт.

3

A58662

MANIFOLD GASKET

- intake manifold

4шт.

4

A58749

MANIFOLD

ASSY. - exhaust

1шт.

5

A58750

PLUG,Cup, 3 1/4", Stainless

- 3-1/4" cup type

1шт.

6

A58666

MANIFOLD GASKET

- exhaust manifold

4шт.

7

A59077

STUD

- manifolds, 3/8" N.C. x 1-3/4"

16шт.

8

92-6

LOCK WASHER,3/8"

16шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex (Intake manifold)

8шт.

9

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez-pruf (Exhaust manifold)

8шт.

10

A59076

PIPE, EXHAUST SYSTEM

STACK - exhaust manifold

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

A37775

HEATER

ASSY. - intake manifold (12 V.)

1шт.

14

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

15

129-503

NUT,1/4"-20, Brass

1шт.

20

A59764

MUFFLER

1шт.

21

A27115

CLAMP

- muffler

1шт.

22

D28028

CAP

- muffler rain

1шт.

23

A62470

EXTENSION

- exhaust pipe, curved (Black) (Used w/cab & canopy)

1шт.

24

A62874

CLAMP

- extension (Used w/cab)

1шт.

25

A62718

KIT

EXHAUST EXTENSION KIT - (For tractors w/o cab or as an added extension on tractors w/cab or canopy) (includes ref. 26 & 27)

1шт.

26

A61109

EXTENSION

- exhaust pipe (Used w/cab)

1шт.

27

A62874

CLAMP

- extension (Used w/cab)

1шт.
