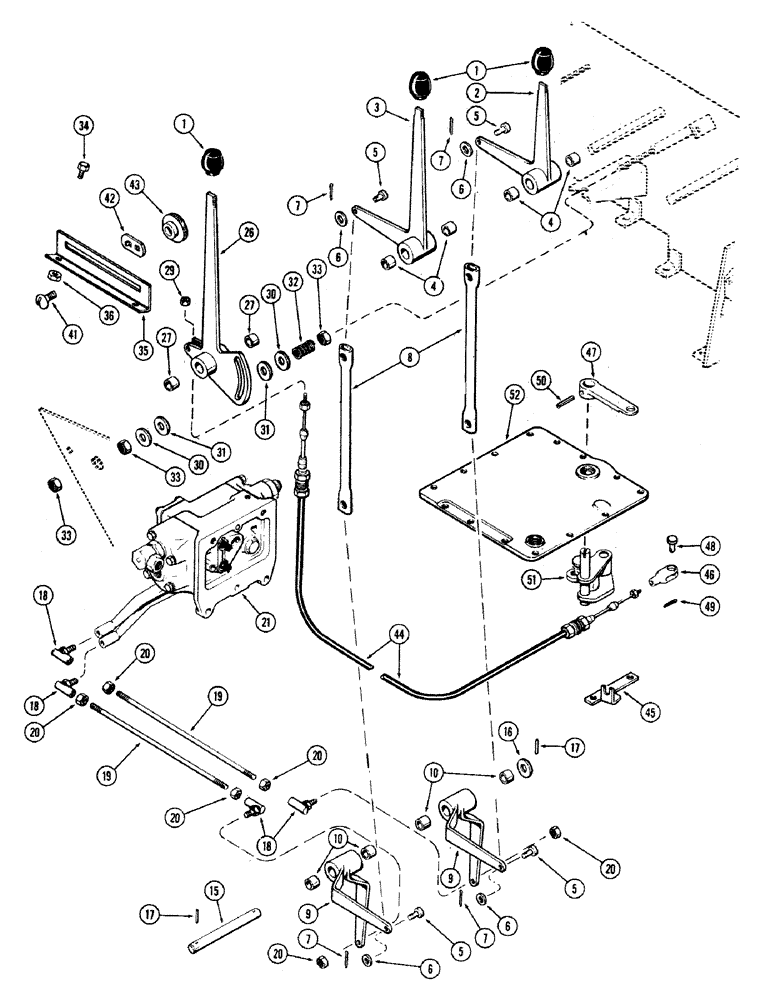

Запчасти Case IH 870 (226) - REMOTE HYDRAULICS & DRAFT CONTROLS (08) - HYDRAULICS

1

A62078

KNOB

- hand lever (Replaces A23885)

3шт.

2

A59525

LEVER

ASSY. - remote, inner

1шт.

3

A59523

LEVER

ASSY. - remote, outer

1шт.

4

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- remote levers

2шт.

5

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

6

195-21

WASHER,5/16"

- plain, () 5/16"

4шт.

7

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

8

A61660

LINK - remote levers, upper (Replaces A59518)

2шт.

9

A59527

LEVER ASSY. - remote, bellcrank

2шт.

10

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- remote bellcrank lever

2шт.

15

A59529

SHAFT

- lever, remote bellcrank

1шт.

16

195-41

WASHER,5/8"

1шт.

17

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , Levers to shaft, shaft to frame 1/8" x 1 1/8", Slotted

2шт.

18

A60604

BALL JOINT

- remote lever lower rod (5/16")

4шт.

19

A59519

ROD

- remote lever, lower

2шт.

20

25-115

NUT,5/16"-24, G5

- hex (5/16" NF)

6шт.

21

A42248

VALVE

ASSY. - dual remote (See pg. 242 & 244 for repairs)

1шт.

26

A61070

LEVER ASSY. - hand (D.O.M.) (Replaces A59275)

1шт.

27

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- D.O.M. hand lever

2шт.

29

193-1000

NUT,Keps, w/LW,#10-32

- Keps (#10 N.F. hex w/ext. tooth washer)

1шт.

30

195-2035

WASHER,7/16" x 1 1/4" x .083"

- (7/16 x 1-1/4 x 14 ga.)

2шт.

31

A61069

DISC

- friction, D.O.M. hand lever (Replaces A59432)

2шт.

32

A26546

SPRING

- D.O.M. hand lever

1шт.

33

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex (3/8" N.C. top face lock)

3шт.

34

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Quadrant to console

2шт.

35

A59273

BRACKET

QUADRANT - hand lever (D.O.M.)

1шт.

36

131-113

SPRING NUT,J, Ret, 5/16"-18

- hex, retaining (5/16" N.C.)

2шт.

41

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

42

G15950

STOP

- quadrant, D.O.M. hand lever

1шт.

43

G15951

NUT

- knurled, D.O.M. hand lever quadrant stop

2шт.

44

A59522

CABLE

- D.O.M. control

1шт.

45

A61037

BRACKET

- D.O.M. cable, lower

1шт.

46

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable to lower lever (3/16")

1шт.

47

A59521

LEVER

- D.O.M., lower

1шт.

48

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis (3/16")

1шт.

49

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), (Replaces 132-3) 1/16" x 3/4"

1шт.

50

138-2028

PIN,3/16" x 1 1/4", Coiled

1шт.

51

A32310

LINK

- draft control (Link "C")

1шт.

52

A59598

COVER

- rockshaft housing

1шт.
