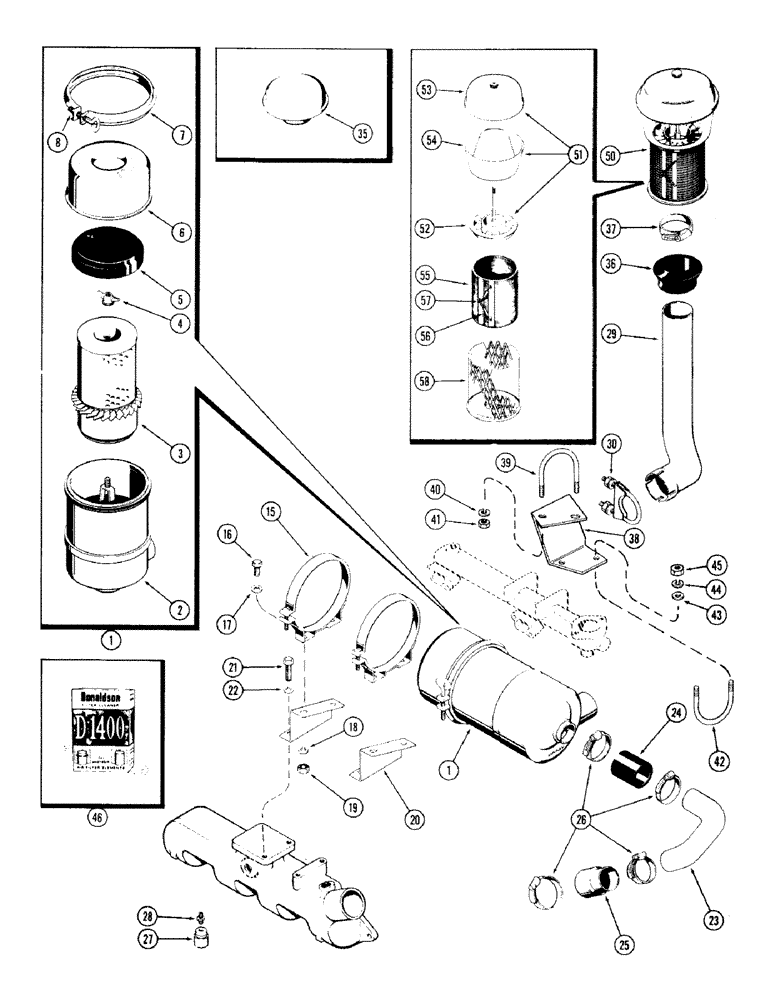

Запчасти Case IH 870 (010) - AIR CLEANER, (336B) DIESEL ENGINE (02) - ENGINE

1

A59570

CLEANER

ASSY. - air (includes ref. 2 - 8)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. - cleaner

1шт.

3

A42224

ELEMENT

ASSY. - cleaner

1шт.

4

F91761

WING NUT

& GASKET ASSY.

1шт.

5

F22312

BAFFLE

ASSY

1шт.

6

F91760

CUP

ASSY.

1шт.

7

F84999

CLAMP,168.28mm

ASSY.

1шт.

8

25-224

SQUARE NUT,Sq, 1/4"-20

- 1/4" N.C. hex

1шт.

15

L11247

BAND

S - air cleaner mounting

2шт.

16

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

17

195-20

WASHER

- 5/16 x 7/8 x 1/16"

4шт.

18

92-5

LOCK WASHER,5/16"

4шт.

19

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

20

A59209

BRACKET

- air cleaner mounting

2шт.

21

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

A59565

TUBE

- air cleaner to intake manifold

1шт.

24

A59566

HOSE - air intake tube

1шт.

25

A59567

REDUCER

HOSE - outlet, Serial Range: tube-manifold

1шт.

26

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16" to 3-1/4"

4шт.

27

A62574

INDICATOR

- air restriction

1шт.

28

D36264

FITTING

FILTER - safety

1шт.

29

A59557

TUBE - air cleaner intake

1шт.

30

A62124

CLAMP,2.6" ID

- air cleaner intake tube

1шт.

35

A61276

AIR CLEANER

CAP - air stack (Replaces A21433)

1шт.

36

A59558

GROMMET - air cleaner intake tube

1шт.

37

214-42

CLAMP

- air cleaner tube grommet

1шт.

38

A62752

BRACKET - air cleaner tube

1шт.

39

A62753

U-BOLT

"U" BOLT - air cleaner bracket

1шт.

40

92-5

LOCK WASHER,5/16"

2шт.

41

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

42

A62664

"U" BOLT - air cleaner tube

1шт.

43

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

44

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

45

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

46

A40910

CLEANER

DETERGENT - air cleaner element

1шт.

50

A61273

CLEANER

PRE-CLEANER ASSY. - pre-screener (Replaces F83641) (includes ref. 51 - 58)

1шт.

51

A64589

PRECLEANER

PRE-CLEANER

1шт.

52

NSS

NOT SOLD SEPARAT

SLEEVE - adapter, pre-cleaner

1шт.

53

73187

COVER

- pre-cleaner

1шт.

54

73186

HOUSING

BODY - pre-cleaner

1шт.

55

F83644

SCREEN

pre-cleaner (includes ref. 56 & 57)

1шт.

56

A22780

SPRING

pre-cleaner

2шт.

57

A22781

CLIP

pre-cleaner

1шт.

58

F83643

BODY, pre-cleaner

1шт.
