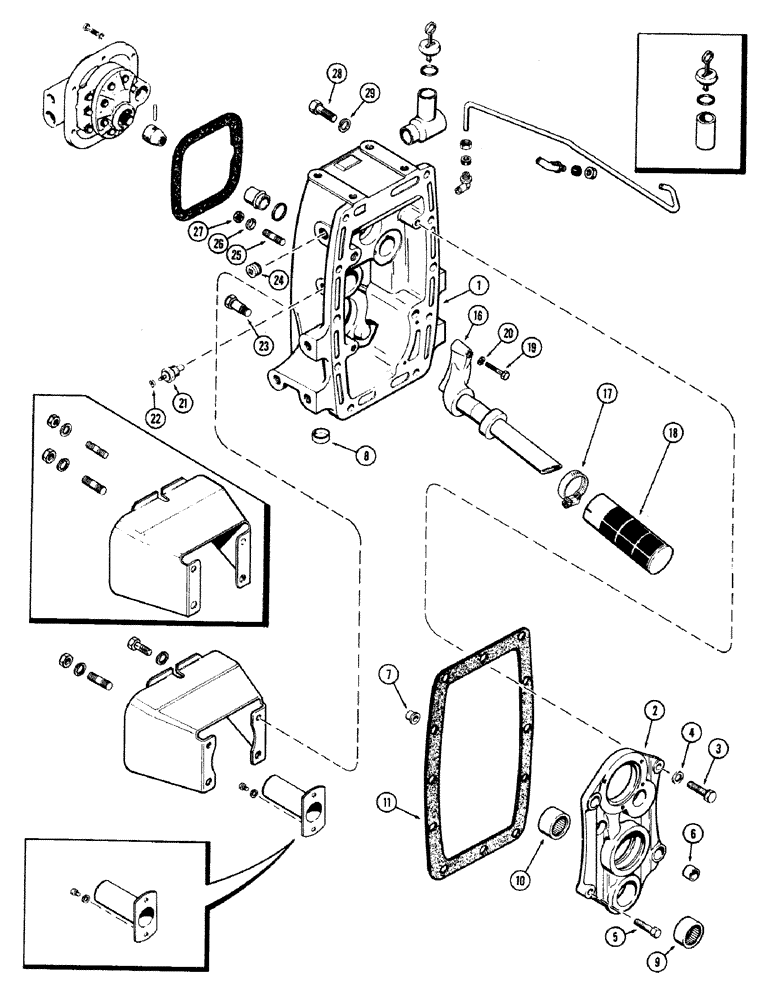

Запчасти Case IH 870 (216) - P.T.O. HOUSING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A62190
HOUSING
ASSY. - P.T.O. & hyd. pump (w/horizontal oil filler adapter) (Incl. items 1 thru 7) (includes ref. 1 - 8)
1шт.
A59028
HOUSING
ASSY. - P.T.O. & hyd. pump (w/vertical oil filler) (Incl. items 1 thru 8) (Order 1-A62190 & 1-A62172) (includes ref. 1 - 8)
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - P.T.O. & hyd. pump (Order A62190)
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - P.T.O. bearing carrier (Order A62190)
1шт.
3
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
- 1/2 x 1-3/4" N.C. hex
2шт.
4
92-8
LOCK WASHER,1/2"
2шт.
5
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
2шт.
6
A50011
SLEEVE
- dowel, bearing, Serial Range: carrier-hsg.
2шт.
7
A32426
BUSHING
SPACER - bearing carrier to hsg. dowel sleeve
2шт.
8
41-1020
PLUG,Cup, 1 1/4"
- P.T.O. hsg. 1-17/64" cup (Replaces A23468)
1шт.
9
A28229
NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W
BEARING - needle, P.T.O. 2nd idler shaft (1-3/4 x 2-1/8 x 1")
1шт.
10
A58197
NEEDLE BEARING,2.25" ID x 2.6255" OD x 1.25"
BEARING - needle, output sleeve (2-1/4 x 2-5/8 x 1-1/4")
1шт.
11
A32461
GASKET
- P.T.O. hsg. to trans. case
1шт.
16
A61057
TUBE
SCREEN ASSY. - hyd. dual pump oil suction (includes ref. 17 & 18)
1шт.
17
214-261
HOSE CLAMP,#40, 2.06" - 3", Type F Worm
CLAMP - hose (3" max. dia.)
1шт.
18
A60299
FILTER STRAINER
SCREEN - hyd. dual pump oil suction
1шт.
19
13-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
20
92-5
LOCK WASHER,5/16"
2шт.
21
A21462
SENDER UNIT
SENSOR UNIT - trans. temp. (Replaces A58984)
1шт.
22
129-661
NUT
- #10-32 hex, brass
1шт.
23
A61670
STEP BOLT
- dowel sleeve (Special)
2шт.
24
221-845
PLUG,Hex Soc, 3/4"-14
- P.T.O. housing, R.H. side (3/4" hex, socket head)
1шт.
25
A29396
STUD
- 5/8" N.C./N.F. x 2-7/8"
2шт.
27
25-1110
NUT,5/8"-18, G5
- 5/8" N.F. hex
2шт.
28
13-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd
6шт.
Выбрано товаров: 27
