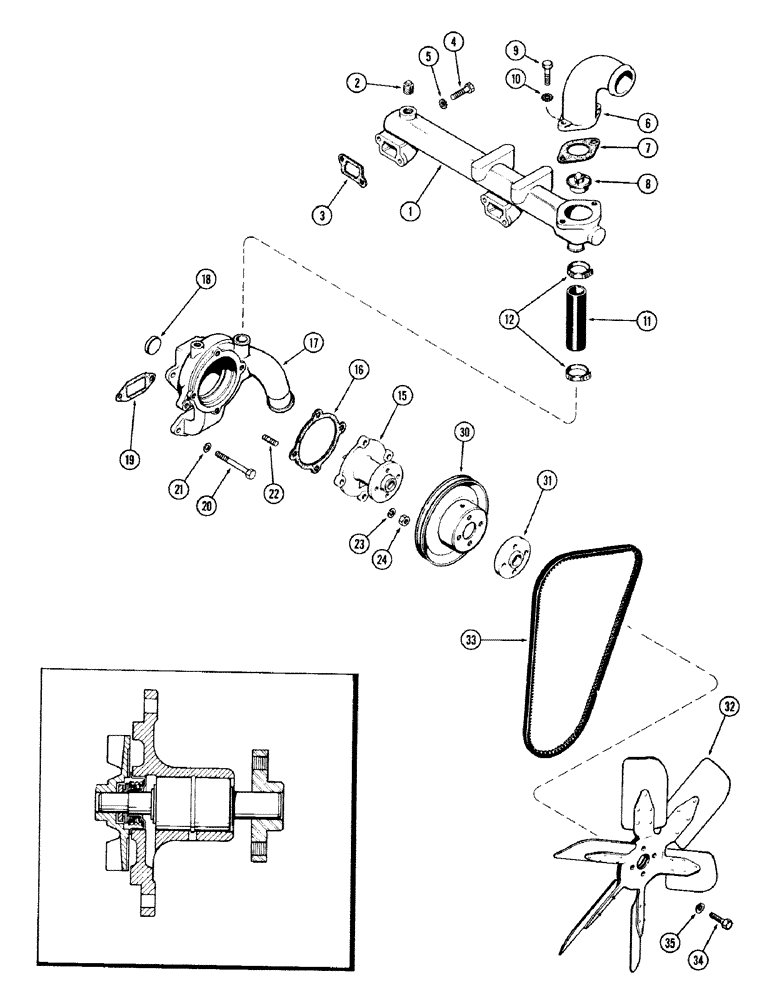

Запчасти Case IH 870 (008) - WATER MANIFOLD & THERMOSTAT, (336B) DIESEL ENGINE (02) - ENGINE

1

A58735

MANIFOLD

- water

1шт.

2

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd.

1шт.

3

A58637

MANIFOLD GASKET

- water manifold

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

5

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

6

A61167

HOUSING - thermostat

1шт.

7

G46907

GASKET

- thermostat housing

1шт.

8

A57641

THERMOSTAT

1шт.

9

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

10

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

11

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump by-pass (1-1/4 x 3-5/16")

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - by-pass hose, 1-3/16" to 1-3/4"

2шт.

15

A58738

WATER PUMP

PUMP ASSY. - water

1шт.

16

A58646

GASKET

- pump to body, water

1шт.

17

A58779

HOUSING

BODY ASSY. - water pump (includes ref. 18)

1шт.

18

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup type, water pump

1шт.

19

A58649

GASKET

- body to block, water pump

1шт.

20

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Water pump Hex, 3/8"-16 x 1 1/8", G5, Full Thd

4шт.

21

92-6

LOCK WASHER,3/8"

water pump 3/8"

4шт.

22

A62234

STUD

- pump to body, 3/8" N.C. x 1-5/16", water

4шт.

23

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water pump Int Tooth, 3/8"

4шт.

24

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex jam, water pump

4шт.

30

A58744

PULLEY

- fan driven, water pump

1шт.

31

A61283

BUSHING

SPACER - fan blade (3/4"), water pump

1шт.

31

A61268

BUSHING

SPACER - fan blade (1"), water pump

1шт.

32

A23106

HALF BLADE

FAN, water pump

1шт.

33

A59762

V-BELT,0.69" W x 59.25" L

Fan Drive, Water Pump 0.69" W x 59.25" L

1шт.

34

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Used w/A61283 spacer), water pump Hex, 3/8"-16 x 1 3/4", G5

4шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Used w/A61268 spacer), Water pump Hex, 3/8"-16 x 2", G5

4шт.

35

92-6

LOCK WASHER,3/8"

water pump 3/8"

4шт.
