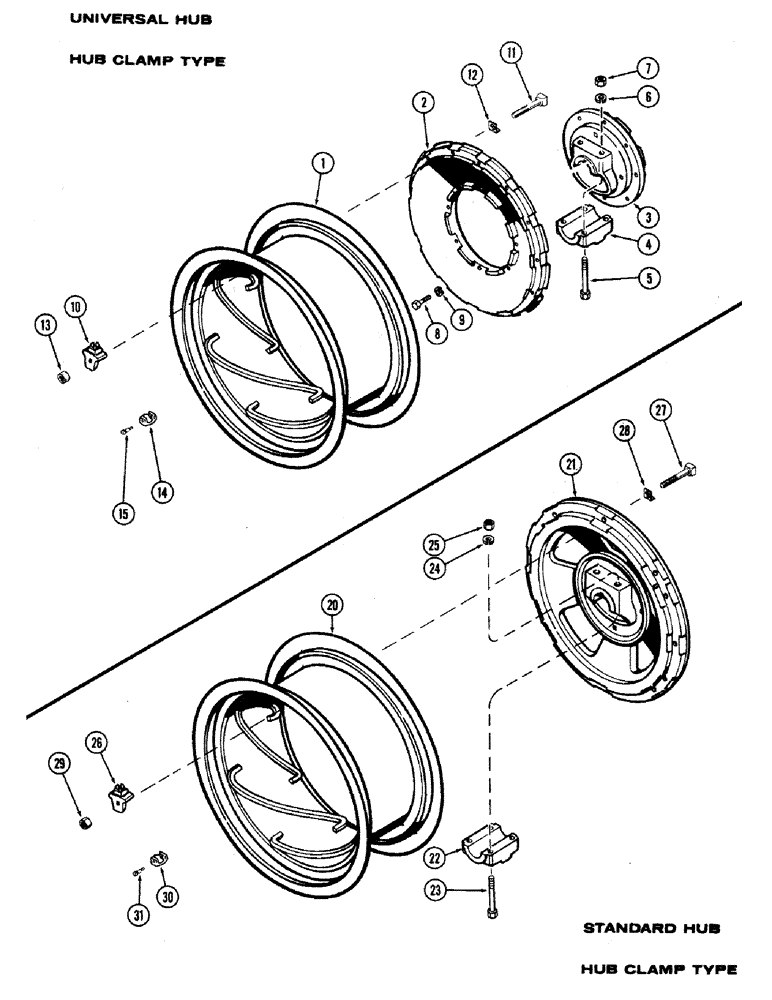

Запчасти Case IH 870 (206) - REAR WHEELS W/38" RIMS, POWER ADJUSTABLE, (USED WITH 3-3/16" DIAMETER AXLE) (06) - POWER TRAIN

1

A11076

DISC, WHEEL

RIM - rear wheel (Takes 14.9 x 38 or 15.5 x 38 tire)

2шт.

1

A9405

RIM - rear wheel (Takes 13.6 x 38 tire)

2шт.

2

A33174

WHEEL

- rear, universal hub

2шт.

3

A22668

HUB ASSY. - universal (Cast) (includes ref. 4 - 7)

2шт.

4

A57032

CAP

- hub, universal

1шт.

5

A22389

WHEEL BOLT

BOLT - cap to hub (7/8 x 7-1/2" N.F. hex)

4шт.

6

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

7

25-1114

NUT,7/8"-14, G5

- hex (7/8" N.F.)

4шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rear wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

A33171

CLAMP

- double ramp type, Serial Range: rim-wheel

12шт.

11

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- sq. hd. (3/4 x 3" N.C., cadmium plated)

12шт.

12

A34799

LOCK WASHER

- lock, rim to wheel clamp bolt

12шт.

13

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex (3/4" N.C. heavy, cadmium plated)

12шт.

14

A9406

STOP

LUG - rim stop

4шт.

15

A9440

STOP

SCREW - lock, stop lug

4шт.

20

A11076

DISC, WHEEL

RIM - rear wheel (Takes 14.9 x 38 or 15.5 x 38 tire)

2шт.

20

A9405

RIM - rear wheel (Takes 13.6 x 38 tire)

2шт.

21

A34804

WHEEL

ASSY. - rear, standard hub (Spoke type) (includes ref. 22 - 25)

2шт.

22

A57032

CAP

- hub, rear wheel

1шт.

23

A22389

WHEEL BOLT

BOLT - cap to hub (7/8 x 7-1/2" N.F. hex)

4шт.

24

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

25

25-1114

NUT,7/8"-14, G5

- hex (7/8" N.F.)

4шт.

26

A33171

CLAMP

- double ramp type, Serial Range: rim-wheel

12шт.

27

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- sq. hd. (3/4 x 3" N.C., cadmium plated)

12шт.

28

A34799

LOCK WASHER

- lock, rim to wheel clamp bolt

12шт.

29

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex (3/4" N.C. heavy, cadmium plated)

12шт.

30

A9406

STOP

LUG - rim stop

4шт.

31

A9440

STOP

SCREW - lock, stop lug

4шт.
